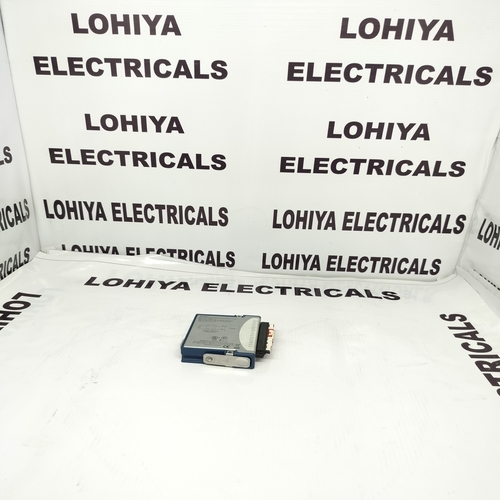

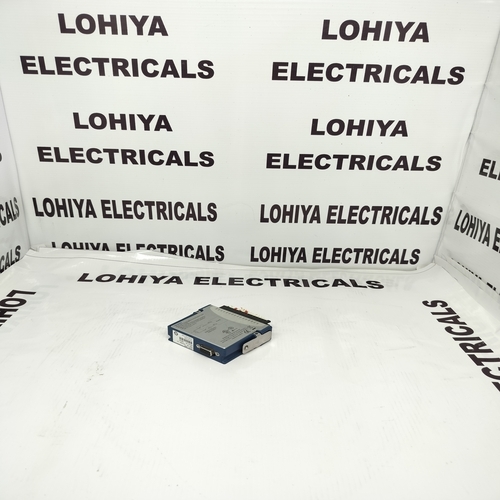

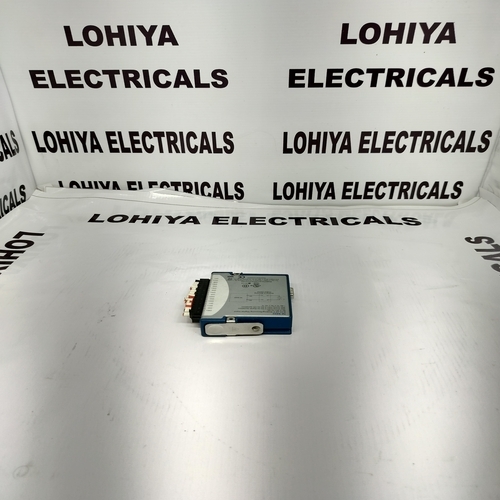

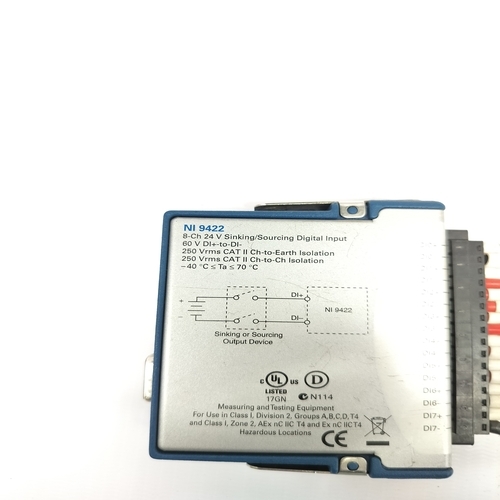

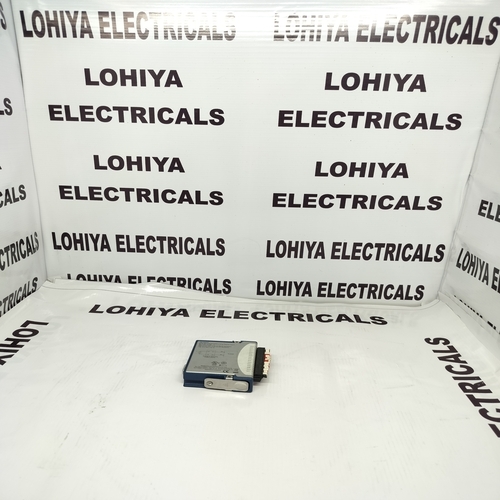

NATIONAL INSTRUMENTS NI9422 DIGITAL INPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

NATIONAL INSTRUMENTS NI9422 DIGITAL INPUT MODULE Specification

Mounting Type
DIN rail, panel or rack mount (through compatible chassis)

Surface Finish
Matte

Feature
Sourcing inputs, 8-channel, channel-to-channel isolation, compatible with CompactDAQ / CompactRIO

Operating Temperature
-40 C to 70 C (-40 F to 158 F)

Connector Type
Removable terminal block

Shape
Rectangular

Insulation Material
Polycarbonate

Humidity %
5% to 95% noncondensing

Product Type
Digital Input Module

Application
Industrial Automation, Monitoring and Control

Protection Level
Basic isolation between channels, channel-to-earth and channel-to-channel

Rated Voltage
48 VDC Nominal (Range: 10-60 VDC)

Energy Consumption
1.38 W max at 24 VDC

Output Type
Digital Input

Color
Gray

Dimension (L*W*H)
88.1 mm x 22.4 mm x 70 mm

Weight
158 g (5.57 oz) (module only)

Input Voltage
10-60 VDC

Connection Type
Removable spring terminal

Material
Polycarbonate housing with metal base

Channel-to-Channel Isolation Voltage
60 VDC continuous

Input Impedance
16 k (typical)

Maximum Switching Frequency
1 kHz

Certification/Compliance
c-UL, CE, C-Tick, and RoHS compliant

Module Type
C Series (for CompactDAQ and CompactRIO platforms)

Number of Channels
8 channels, individually isolated

Channel-to-Earth Ground Isolation Voltage
250 Vrms continuous, CAT II

Status Indicators
Yes (per-channel LED indicators)

About NATIONAL INSTRUMENTS NI9422 DIGITAL INPUT MODULE

Explore the supreme reliability of the NATIONAL INSTRUMENTS NI9422 DIGITAL INPUT MODULE, highly recommended by favorable reviews for its unmatched performance in industrial automation. This breathtaking device features 8 individually isolated channels, providing an uncommon level of protection with 250 Vrms continuous channel-to-earth and 60 VDC channel-to-channel isolation. Benefit from precise monitoring and control, aided by per-channel LED indicators and robust polycarbonate housing. This C Series module guarantees compatibility with CompactDAQ and CompactRIO, offering a top-tier deal for engineers seeking quality, compliance, and enduring functionality.

Special Features, Application Surface, and Use Type

NATIONAL INSTRUMENTS NI9422 DIGITAL INPUT MODULE is distinguished by its individually isolated 8-channel input, robust channel-to-channel and channel-to-earth isolation, and sourcing inputs. Designed for industrial monitoring and control, it excels on surfaces ranging from DIN rail, panel, to rack-mounted setups via compatible chassis. Its optimal application lies in high-demand environments where reliability is paramount, providing uncommon protection levels and intuitive connection through removable spring terminals along with visual status per channel.

Premium Packaging, Transportation, and Certifications

The NATIONAL INSTRUMENTS NI9422 ensures secure transportation and timely dispatching from FOB ports in India, packed with utmost care for reliable delivery. The module arrives in premium packaging, safeguarding it against any potential transit damage. Each unit adheres to stringent standards with c-UL, CE, C-Tick, and RoHS compliance, providing assurance of its global certifications. Experience peace of mind with reliable product handling from supplier to delivery, ensuring you receive a product of the highest standard.

FAQ's of NATIONAL INSTRUMENTS NI9422 DIGITAL INPUT MODULE:

Q: How does the NI9422 ensure safety during industrial automation applications?

A: The NI9422 provides supreme safety through its individually isolated channels, with up to 250 Vrms channel-to-earth isolation and 60 VDC channel-to-channel isolation, offering robust protection against voltage surges and cross-channel currents in demanding environments.

Q: What are the key benefits of using per-channel LED indicators on the NI9422?

A: Per-channel LED indicators allow quick verification of each input's status at a glance, enabling streamlined troubleshooting and continuous monitoring, which enhances operational efficiency and uptime in automation processes.

Q: Where can the NI9422 module be mounted for best performance?

A: The module supports flexible installation on DIN rails, panels, or rack systems when used within compatible CompactDAQ or CompactRIO chassis, providing adaptable deployment across various industrial setups.

Q: What certifications does the NI9422 hold, and why are they important?

A: It holds c-UL, CE, C-Tick, and RoHS certifications, ensuring it meets international safety, environmental, and quality standards. These certifications are vital for operational approval in global industries and assurance of product reliability.

Q: How is the NI9422 module packaged and dispatched for delivery?

A: Each unit is packed in premium, protective packaging and shipped from designated FOB ports in India, ensuring safe transportation and prompt dispatching directly from the supplier or official trader.
