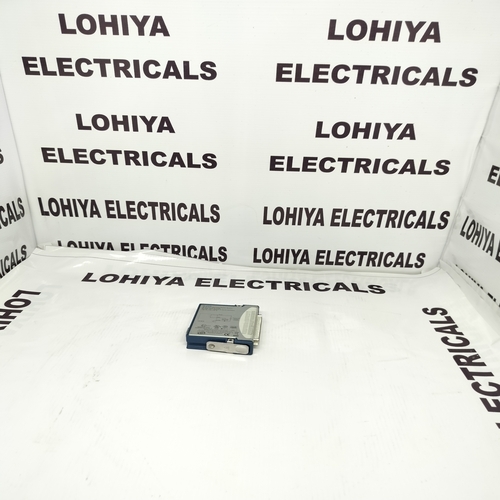

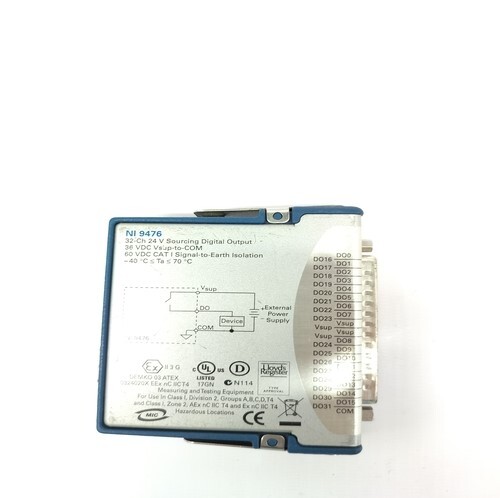

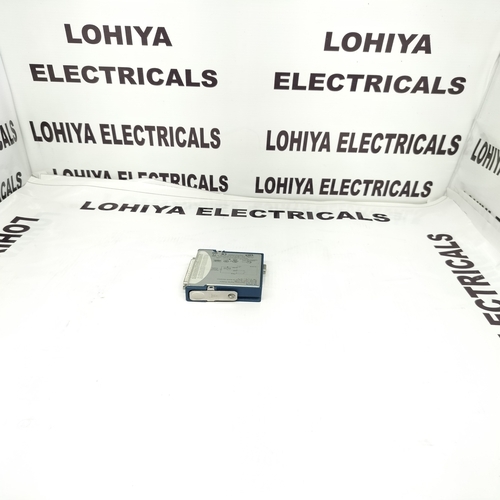

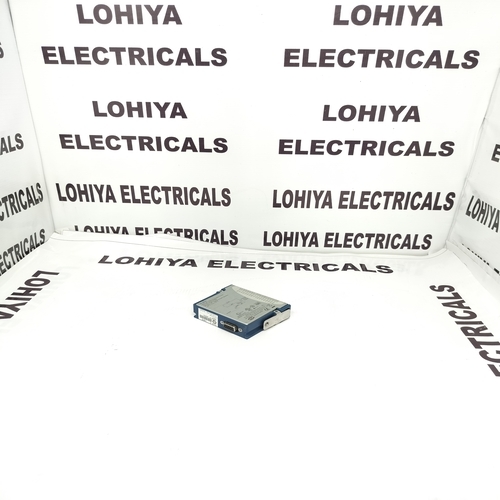

NATIONAL INSTRUMENTS NI9476 RELAY MODULE

Send Inquiry

Request To Call Back

NATIONAL INSTRUMENTS NI9476 RELAY MODULE

Get a Price/Quote

MOQ : 1 Piece

NATIONAL INSTRUMENTS NI9476 RELAY MODULE Specification

Operating Temperature
-40C to 70C

Connector Type
Spring terminal connectors

Efficiency
High efficiency switching

Surface Finish
Matte

Overheating Protection
Built-in protection circuits

Humidity %
10% to 90% noncondensing

Feature
32-channel, 30V digital output, high current sinking capability

Mounting Type
DIN Rail or panel mount

Shape
Rectangular

Insulation Material
Plastic

IP Rating
IP20

Product Type
Digital Output Relay Module

Application
Industrial control, test and measurement

Protection Level
Channel-to-earth ground isolation 60 VDC continuous

Frequency (MHz)
DC Only

Rated Voltage
6 VDC to 30 VDC

Energy Consumption
3.4 W max

Output Type
Sourcing Digital Output

Color
Grey

Dimension (L*W*H)
90 mm x 125 mm x 23 mm

Weight
143 g

Input Voltage
19 VDC to 30 VDC (power supply)

Size
Compact module size

No Of Poles
32 Channels

Connection Type
16-position, spring terminal connectors

Material
Industrial-grade plastic housing

Compliance
CE, cULus, RoHS

Environmental Protection
Conformal coated for additional protection

Shipping Weight
250 g (approx.)

Status Indicators
Per channel LED indicators

Channels Supported
32 sourcing digital output channels

Max Switching Power
Up to 15 W per channel

Latch/Short Circuit Protection
Yes (self-resetting)

Altitude
Up to 2,000 m

Isolation Voltage (Channel-to-Earth Ground)
60 VDC continuous, 1,000 Vrms transient

Compatible Systems
NI CompactDAQ, NI CompactRIO

Max Switching Frequency
1 kHz

Module Type
C Series

Storage Temperature
-40C to 85C

Output Current Per Channel
500 mA (max)

Hot Swappable
Yes (when used in NI CompactDAQ and CompactRIO systems)

NATIONAL INSTRUMENTS NI9476 RELAY MODULE About

Experience the best-seller-NATIONAL INSTRUMENTS NI9476 RELAY MODULE-designed for industrial control and test measurement applications. This exclusive module offers incomparable performance, handling up to 500 mA per channel with a masterful 32-channel design. Its majestic build ensures reliable operation with up to 15 W of switching power per channel and robust isolation up to 60 VDC. Featuring per-channel LED indicators, latch/short circuit protection, and hot-swappable capability, the NI9476 is your go-to for efficiency and protection. Try now for an innovative, efficient, and trustworthy solution!

Competitive Advantages & Applications

The NI9476 stands out for its high current capacity, robust short circuit protection, and hot-swappable design-making it an ideal choice for professionals demanding reliability and flexibility. Supporting major industrial platforms like NI CompactDAQ and CompactRIO, this C Series module excels in control systems, automated testing, and measurement applications. Its IP20 rating and conformal coating enhance durability, while 32 digital output channels ensure broad utility across process automation, manufacturing, and other industrial sectors.

Sample Policy, Shipping, & Export Markets

Samples are available on request, providing clients with a low outlay to evaluate performance before bulk orders. Express shipping and efficient logistics ensure prompt delivery, with typical turnaround times tailored to customer requirements. Our streamlined process accommodates clients across India and major export markets, including Asia-Pacific, Europe, and North America. Count on us for timely dispatch and competitive service, ensuring your industrial project needs are met with speed and confidence.

FAQ's of NATIONAL INSTRUMENTS NI9476 RELAY MODULE:

Q: How does the NI9476 module ensure user safety during operation?

A: The NI9476 relay module offers robust channel-to-earth ground isolation (60 VDC continuous) and conformal coating, providing enhanced electrical protection and user safety during use.

Q: What systems are compatible with the NI9476 relay module?

A: This module is designed for NI CompactDAQ and CompactRIO systems, with support for hot-swapping when integrated within these platforms.

Q: Where can the NI9476 be used effectively?

A: It excels in industrial control, automated test setups, and measurement environments, particularly where multiple digital outputs and high reliability are essential.

Q: What are the usage benefits of the per-channel LED status indicators?

A: Per-channel LED indicators supply real-time visual feedback for each output, simplifying monitoring and troubleshooting in complex systems.

Q: When should the latch/short circuit protection feature be utilized?

A: This built-in, self-resetting protection automatically engages during fault conditions, safeguarding your equipment and minimizing maintenance downtime.

Q: How does the sample policy work for new buyers?

A: New buyers may request a sample with minimal outlay to assess the module's suitability, supported by fast shipping and responsive customer service.
