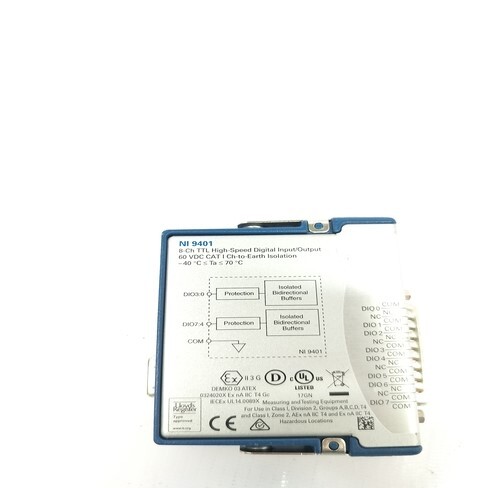

NATIONAL INSTRUMENTS NI9401 DIGITAL MODULE

Get a Price/Quote

MOQ : 1 Piece

NATIONAL INSTRUMENTS NI9401 DIGITAL MODULE Specification

IP Rating
IP20

Surface Finish
Matte

Humidity %
5% to 95% RH, Non-Condensing

Overheating Protection
NO

Mounting Type
DIN Rail or Panel Mount

Shape
Rectangular

Operating Temperature
-40 C to 70 C

Insulation Material
Thermoplastic

Feature
8-channel Bidirectional Digital I/O, High-Speed I/O, Supports Sinking/Sourcing Configurations

Connector Type
36-pin Removable Terminal Block

Product Type
Digital I/O Module

Application
Industrial Automation, Data Acquisition, Digital I/O Operations

Protection Level
Basic Insulation

Rated Voltage
30 VDC max

Energy Consumption
1.9 W max

Output Type
TTL/CMOS Compatible Digital

Color
Grey

Dimension (L*W*H)
120.7 mm x 22.6 mm x 88.1 mm

Weight
139 g (4.9 oz.)

Input Voltage
5 V TTL/CMOS Logic Level

Size
Compact

Connection Type
Removable Screw Terminal

Material
Plastic and Metal

Max Switching Current
8 mA per Channel

Supported Signal Level
TTL/CMOS

Module Status Indicator
LED

Isolation Voltage
60 VDC Channel-to-Earth Ground

Storage Temperature
-40 C to 85 C

Hot Swappable
Yes

Update Rate
100 ns (10 MHz) per Channel

C Series Compatibility
Yes (NI CompactDAQ and CompactRIO Systems)

Channels
8 Single-Ended, Bidirectional Channels

Compliance Standards
CE, c-UL, UL, RoHS

NATIONAL INSTRUMENTS NI9401 DIGITAL MODULE About

Experience the unassailable performance of the NATIONAL INSTRUMENTS NI9401 DIGITAL MODULE-featured as an exclusive industrial automation solution, available from leading suppliers and traders in India. This preeminent compact device provides 8 terrific bidirectional, single-ended digital I/O channels with high-speed 100 ns (10 MHz) update rates. Benefit from secure 60 VDC isolation voltage, hot-swappability, and compliance to CE, UL, and RoHS standards! Its versatile TTL/CMOS support, robust build, and premium energy efficiency make it ideal for data acquisition and digital I/O needs, guaranteeing unmatched reliability in demanding environments.

Optimized for Industrial Automation & Data Acquisition

The NATIONAL INSTRUMENTS NI9401 DIGITAL MODULE excels in applications such as industrial automation, laboratory data acquisition, and digital I/O operations. Its usage type is best suited for high-speed signal processing, real-time control, and monitoring environments. This compact module is perfect for placement within NI CompactDAQ or CompactRIO systems, panel boards, and control cabinets. Its versatility and hot-swap capability allow for seamless integration, making it a reliable choice for engineers and system integrators in various industrial settings.

Sample Policy, Delivery Time & Shipping Information

Customers can request a sample of the NI9401 DIGITAL MODULE upon inquiry, following the supplier's sample policy. The estimated delivery time ranges from 7 to 15 business days after order confirmation, subject to destination and stock availability. FOB port options include major shipping hubs in India, ensuring prompt and efficient dispatch. Track your order from dispatch to arrival to plan project timelines conveniently and anticipate swift delivery to your desired location.

FAQ's of NATIONAL INSTRUMENTS NI9401 DIGITAL MODULE:

Q: How can the NI9401 DIGITAL MODULE enhance my industrial automation setup?

A: The NI9401 provides high-speed, bidirectional digital I/O channels, enabling real-time interface, monitoring, and control of automated processes. Its compatibility with CompactDAQ and CompactRIO systems ensures seamless integration into industrial environments.

Q: What applications is the NI9401 DIGITAL MODULE best suited for?

A: This module is ideal for data acquisition, industrial automation tasks, laboratory testing, and any scenario requiring fast digital input/output operations at TTL/CMOS logic levels.

Q: Where can I use the NI9401 DIGITAL MODULE within my facility?

A: The module is designed for installation in control cabinets, on DIN rails, or panel mounts within industrial plants, laboratories, and development environments.

Q: What is the process for sampling and ordering the NI9401 DIGITAL MODULE?

A: Customers can request samples as per the supplier's policy, and place official orders based on requirements. Contact your local Indian supplier or trader for current sample availability and procedure.

Q: When can I expect the delivery and arrival of the NI9401 DIGITAL MODULE?

A: Estimated delivery is typically within 7 to 15 business days from order confirmation. Trackable shipment ensures prompt arrival at your chosen FOB port or destination address.

Q: What benefits does the hot-swappable feature of the NI9401 provide?

A: Hot-swappability means you can replace or add the module without shutting down your system, minimizing downtime and maximizing productivity during upgrades or maintenance.
