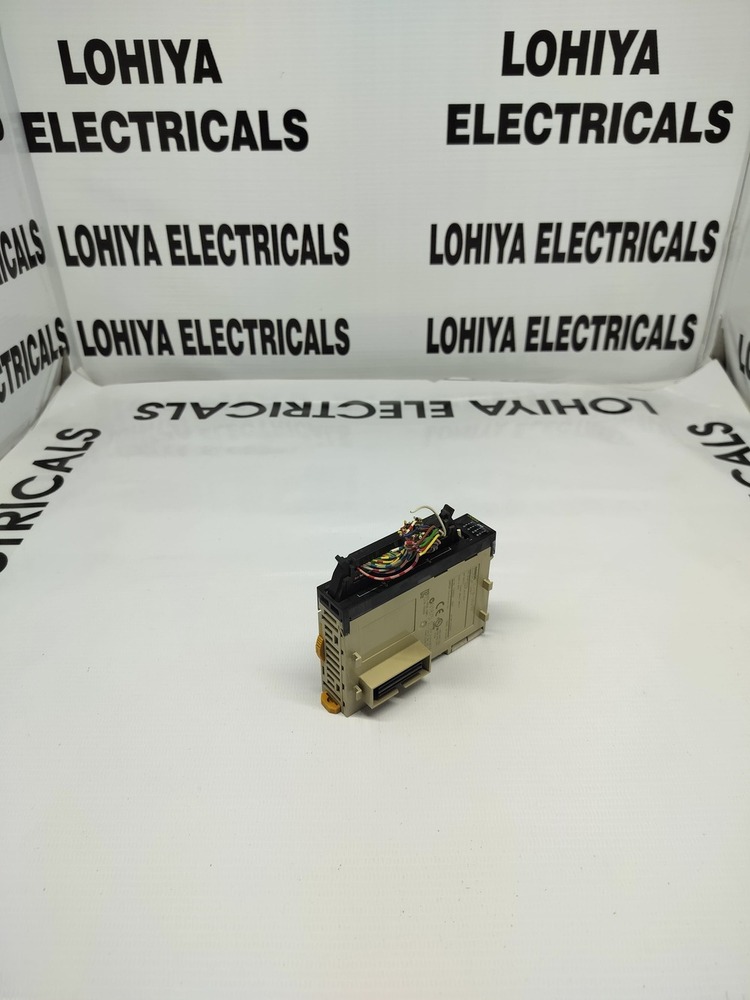

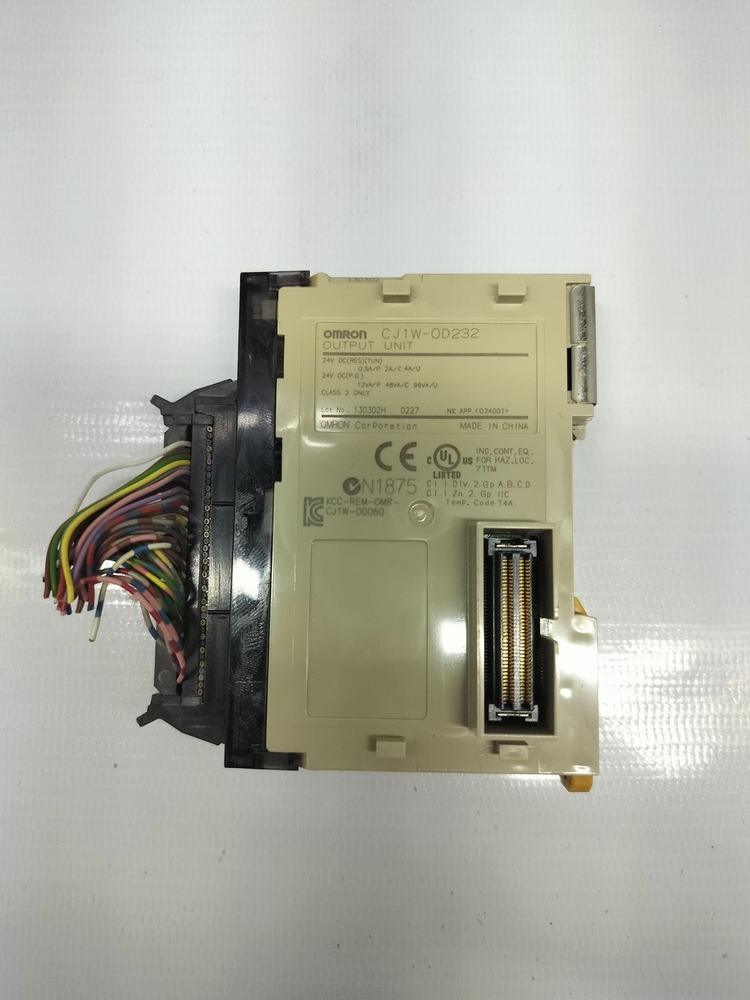

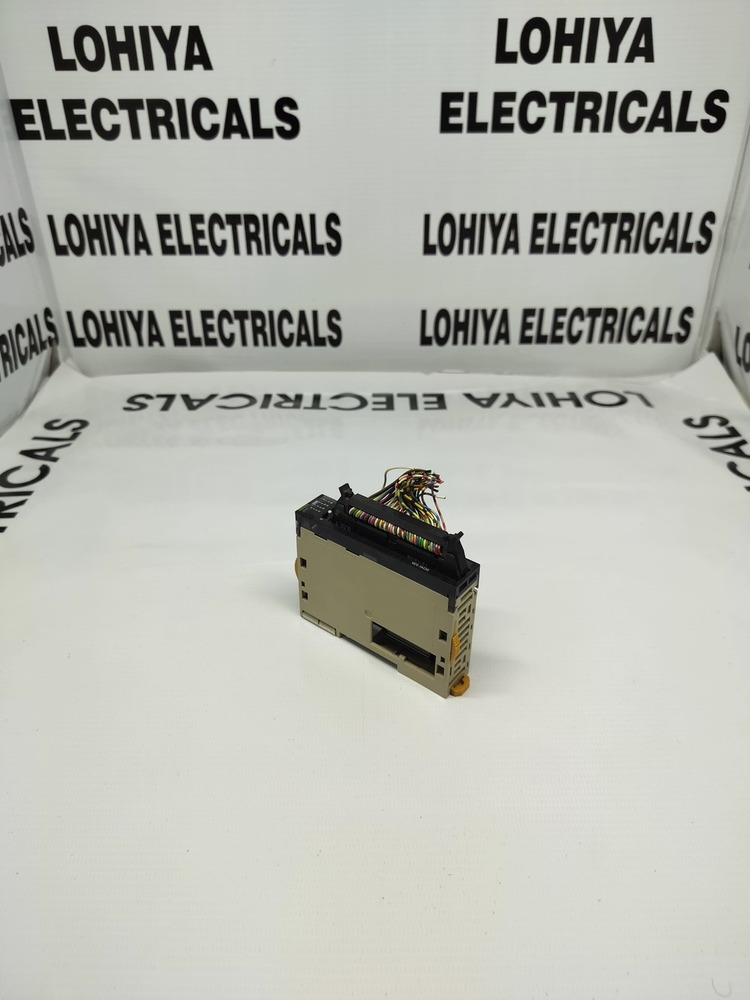

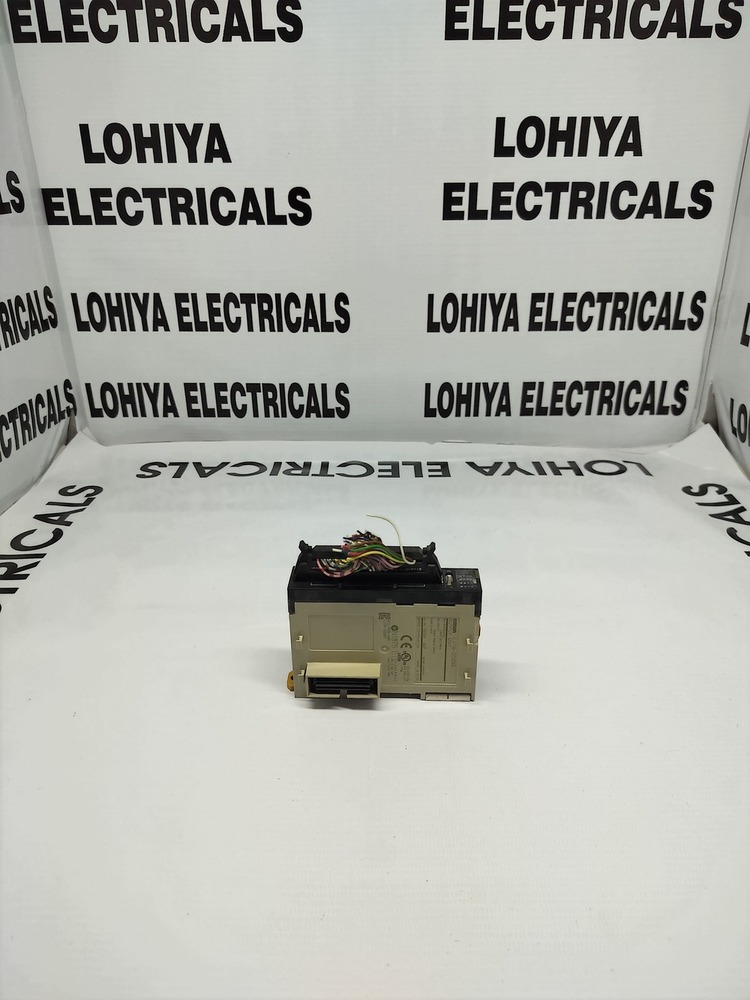

OMRON CJ1W-OD232 OUTPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

OMRON CJ1W-OD232 OUTPUT MODULE Specification

Protection Class
Class II

Current Rating
0.5A/point, 2A/common

Components
Solid State Relay Output

Cooling System
Natural Air Cooling

Features
Fast Switching, Overcurrent Protection

Rated Operation Voltage
24V DC

Panel Type
DIN Rail Mount

Cabinet Material
Plastic

Rated Insulation Voltage
300V AC

Protection Level
Basic Insulation

Connectivity Type
Removable Terminal Block

Operating Voltage
20.4 to 26.4V DC

Base Material
Plastic

Way
32-point (NPN) Output

Thickness
Approx. 80 mm

Control System
CJ1 Series PLC

Rated Current
0.5A/point

Cover Material
Plastic

Product Type
Output Module

Material
Plastic and Metal

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey/Black

Rated Voltage
24V DC

Frequency (MHz)
DC Module (Not Applicable)

Maximum Output Current
0.5A/point, 2A/common

Dimension (L*W*H)
90 x 31 x 89 mm

Application
PLC Automation Systems

IP Rating
IP20

Display Type
LED Indicators (per channel)

Weight
Approx. 180g

Signal Type
Digital

Compatible PLC Series
Omron CJ1, CJ2, and CP1H Series

Operating Temperature
0C to 55C

Humidity
10% to 90% RH (non-condensing)

Isolation Method
Photocoupler Isolation

Response Time
0.1 ms (ON/OFF)

Connection Method
Screw Terminals

Output Points
32 Channels

Mounting
DIN Rail or Panel Mounting

Storage Temperature
-20C to 75C

Output Type
Transistor (NPN) Output

About OMRON CJ1W-OD232 OUTPUT MODULE

Discover the wondrous OMRON CJ1W-OD232 OUTPUT MODULEfeatured for its famed reliability and noble engineering. With 32 fresh digital output channels and fast 0.1 ms response, this module ensures seamless transistor (NPN) performance for demanding PLC automation systems. Its connection method via screw terminals and LED indicators per channel offer intuitive monitoring and easy installation. Boasting robust construction, photocoupler isolation, and compliance with IEC 61131-2 standards, it supports Omron CJ1, CJ2, and CP1H Series PLCs. Try now for optimal control, rapid switching, and overcurrent protection.

Competitive Edge & Versatile Applications

The CJ1W-OD232 delivers primary competitive advantages, including fast switching speed and overcurrent protection. Its features are designed for modern machine automation, such as 32-point NPN transistor outputs and natural air cooling. Specifically used in PLC automation systems, it excels in general industrial applications, making it a superb choice for traders and suppliers in India seeking high-quality output modules.

Delivery Time, Sample Policy, and FOB Port

Suppliers typically offer prompt supply, with delivery time based on the list price and asking price negotiations. Sample policies may allow evaluation, enabling customers to check product suitability before purchasing. The FOB port is generally specified for efficient dispatch within India, ensuring smooth logistics and availability for immediate application in control systems.

FAQs of OMRON CJ1W-OD232 OUTPUT MODULE:

Q: How do I install the OMRON CJ1W-OD232 OUTPUT MODULE in my automation system?

A: To install, mount the module on a DIN rail or panel, connect screw terminals, and ensure compatible PLCs from the Omron CJ1, CJ2, or CP1H Series are used. Follow the wiring guidelines provided in the manual.

Q: What are the key features that make this output module a competitive choice?

A: Its 32-channel NPN transistor outputs, fast 0.1 ms response time, overcurrent protection, and photocoupler isolation deliver reliability and high-speed operation, supporting advanced industrial automation requirements.

Q: When can I expect delivery and is a sample available for evaluation?

A: Delivery time depends on the suppliers supply arrangement and pricing negotiation. Sample policies vary, and select suppliers may offer evaluation units to verify performance before committing to full purchase.

Q: Where is the FOB port for shipping these output modules from suppliers in India?

A: The FOB port is generally specified by the supplier within India, ensuring convenient and reliable shipment for both local and export customers.

Q: What is the recommended usage environment for optimal performance?

A: Operate the module at temperatures from 0C to 55C, relative humidity from 10% to 90% (non-condensing), and within protective enclosures compliant with IP20 and Class II insulation requirements.

Q: What are the benefits of using LED channel indicators on the CJ1W-OD232?

A: LED indicators per channel allow real-time monitoring of signal status, simplifying troubleshooting and confirming output activity swiftly during operation.
