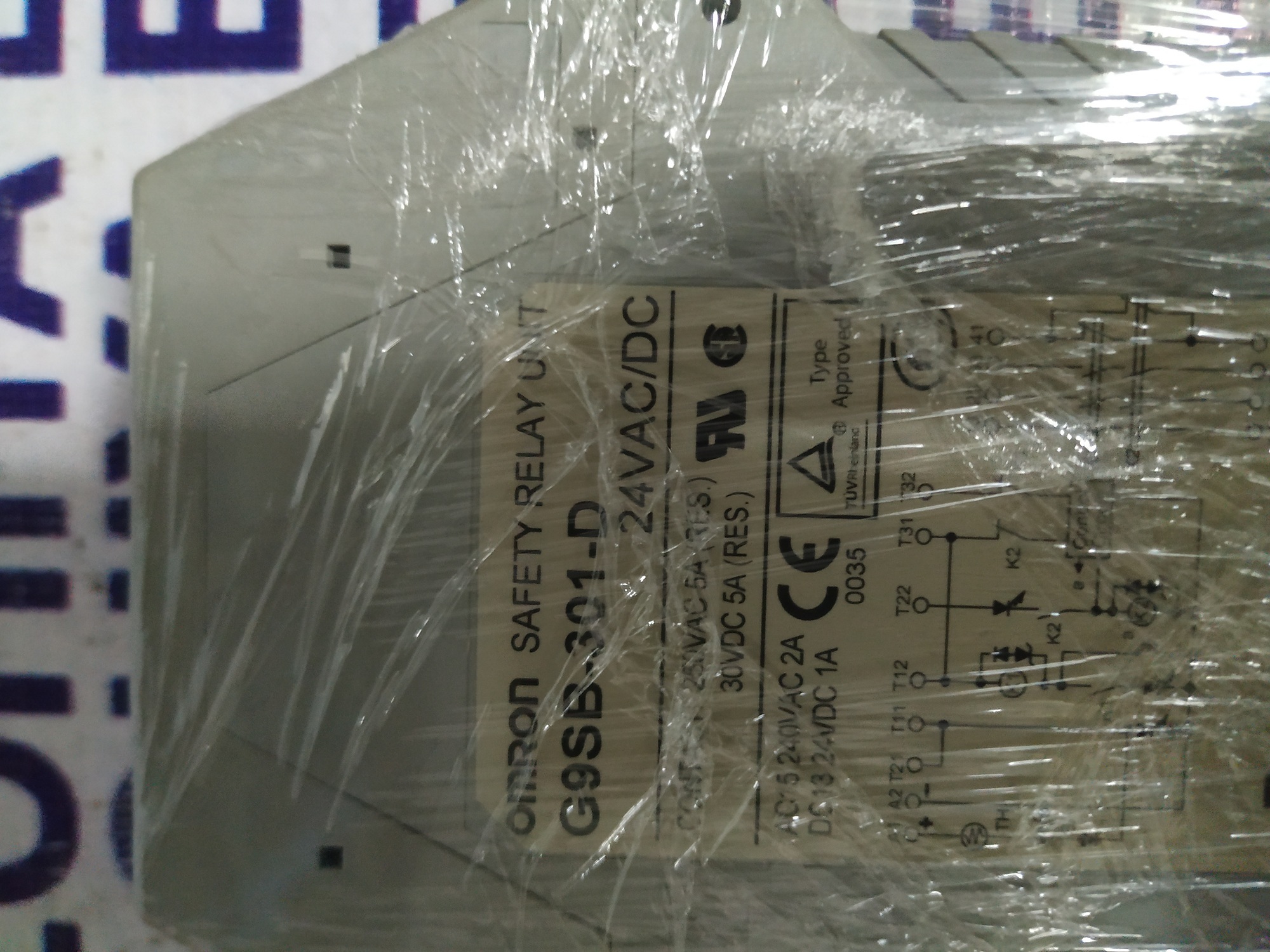

Omron Module G9sb-301-d

Get a Price/Quote

Omron Module G9sb-301-d Specification

Cabinet Material
Plastic

Cooling System
Natural Air Cooling

Operating Voltage
24V DC

Current Rating
6A

Thickness
Approx. 22.5mm

Rated Insulation Voltage
250V AC

Cover Material
ABS

Features
Compact design, forcibly guided contacts, redundancy, fault detection for safety circuits

Panel Type
DIN Rail Mounted

Components
Safety relay, LED Indicator

Protection Class
Class II

Way
3NO + 1NC

Connectivity Type
Screw Terminal

Rated Current
6A

Control System
Electromechanical Relay

Base Material
Polycarbonate

Rated Operation Voltage
24V DC

Protection Level
IP20

Product Type
Safety Relay Module

Material
Polycarbonate, ABS

Surface Finish
Matt

Standard
IEC, EN60947-5-1, EN60204-1

Surface Color
Yellow/Black

Rated Voltage
24V DC

Frequency (MHz)
50/60Hz

Maximum Output Current
6A (per contact)

Dimension (L*W*H)
99 x 22.5 x 114.5 mm

Application
Industrial Safety, Emergency Stop Circuits

IP Rating
IP20

Display Type
LED Status Indication

Response Time
Approx. 20 ms max.

Power Consumption
Approx. 2W

Vibration Resistance
10 to 55 Hz, 0.35 mm amplitude

Mounting method
35 mm DIN rail

Operating Temperature Range
-25C to +55C

Weight
Approx. 180g

Reset Type
Manual/Automatic

Terminal Capacity
0.14 to 2.5mm

Shock Resistance
1000 m/s

Number of Contacts
3 Normally Open + 1 Normally Closed (3NO+1NC)

Contact Material
Ag Alloy

Insulation Resistance
>100 M at 500V DC

About Omron Module G9sb-301-d

Experience extraordinary performance with the Omron Module G9sb-301-d, designed for valiant operation in industrial safety and emergency stop circuits. This module features a robust configuration of 3 Normally Open + 1 Normally Closed contacts, a resilient operating temperature range (-25C to +55C), and impressive shock resistance (1000 m/s). With reduced power consumption and a compact DIN rail mount, instant savings are guaranteed. Its superior build in polycarbonate and ABS, combined with valiant safety standards (IEC, EN60947-5-1), ensures reliability thats second to none. Grab yours today for reduced downtime and heightened protection!

Tailored Application & Outstanding Features

The Omron G9sb-301-d excels in both specific and general industrial safety uses. Perfect for emergency stop applications, it features a matt, yellow/black polycarbonate surface for visibility and durability. With compact dimensions and forcibly guided contacts, it ensures redundancy and quick fault detection. Its 24V DC operation, LED status indication, and 35 mm DIN rail mounting make this module a valorous choice for machine safety systems in demanding environments.

Packaging & Delivery Details

Omron Module G9sb-301-d is securely packed to ensure it is handed over in pristine condition. Orders are dispatched from reputed FOB ports in India for streamlined logistics. Certifications such as IEC, EN60947-5-1, and EN60204-1 attest to its quality and reliability, offering you peace of mind and reduced expenditure. The packaging includes all necessary documentation and features for immediate installation upon arrival, making it ready for instant application in your safety systems.

FAQs of Omron Module G9sb-301-d:

Q: How does the Omron G9sb-301-d contribute to industrial safety systems?

A: The G9sb-301-d module is equipped with forcibly guided contacts, redundancy features, and fault detection capabilities, ensuring reliable emergency stop and safety circuit operations in industrial environments.

Q: What are the specific usage scenarios for this module?

A: This module is ideal for industrial safety applications, including emergency stop circuits and safety relay systems that require high reliability and instant response.

Q: Where is the Omron G9sb-301-d typically installed?

A: It is designed for installation on a 35 mm DIN rail, common in control cabinets and machine panels across industrial sites.

Q: What is the process for installing the Omron G9sb-301-d module?

A: Simply mount the module onto a DIN rail, connect the screw terminals as per the wiring diagram, and verify with the LED status indicator for proper operation.

Q: What benefits does the compact design offer?

A: The compact 22.5 mm width allows for efficient use of panel space, while its lightweight construction (approx. 180g) facilitates easy integration and handling.
