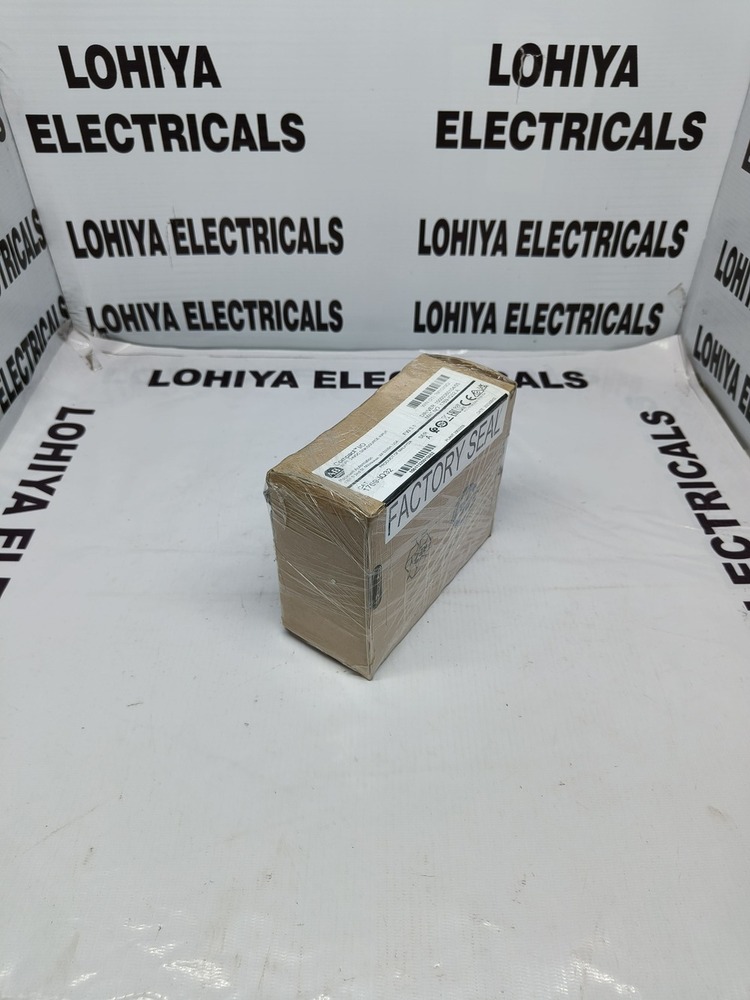

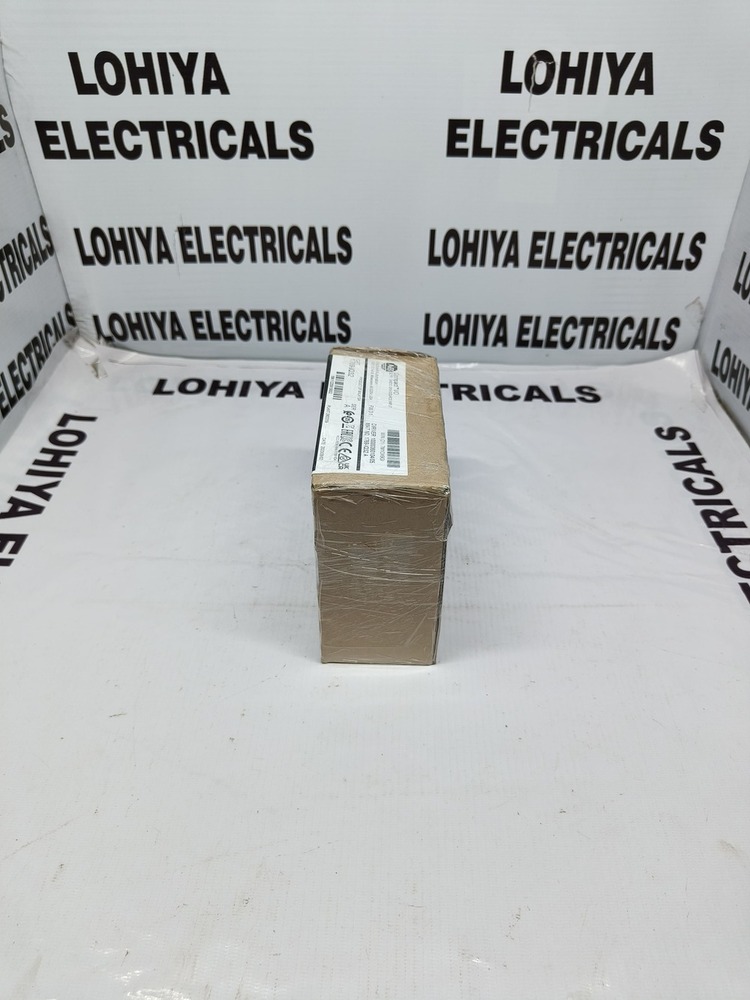

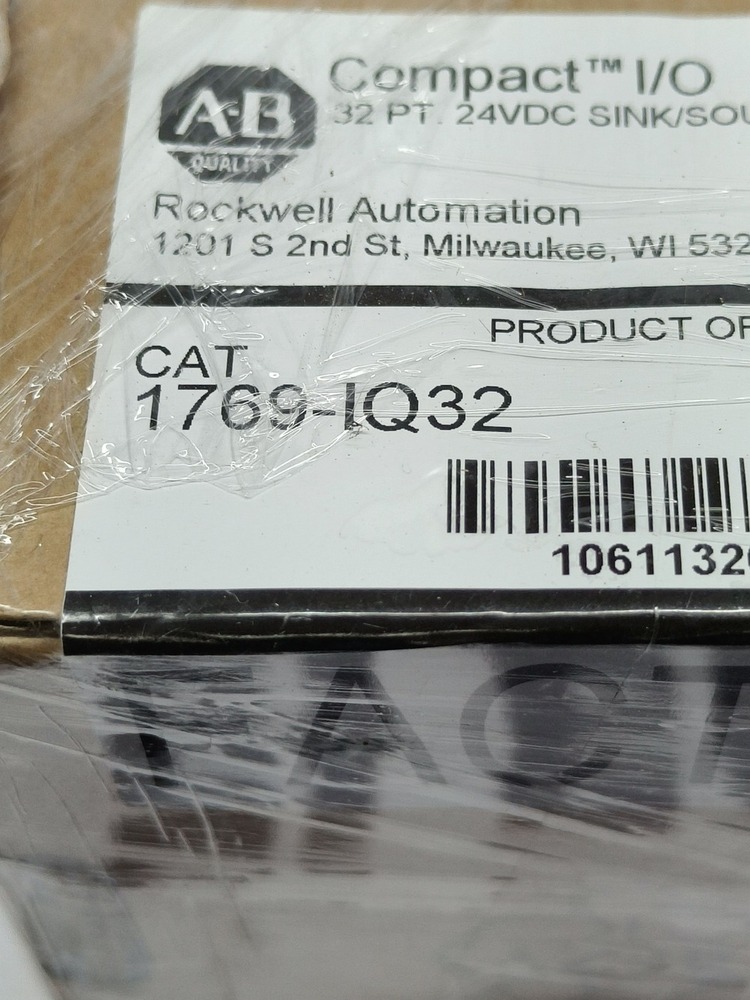

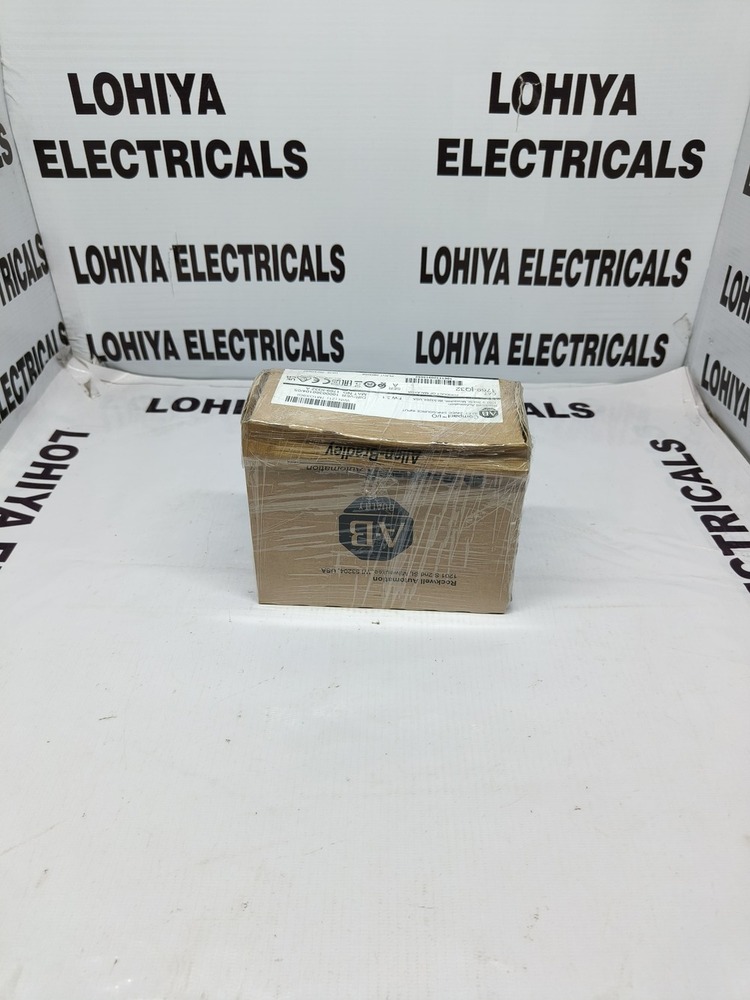

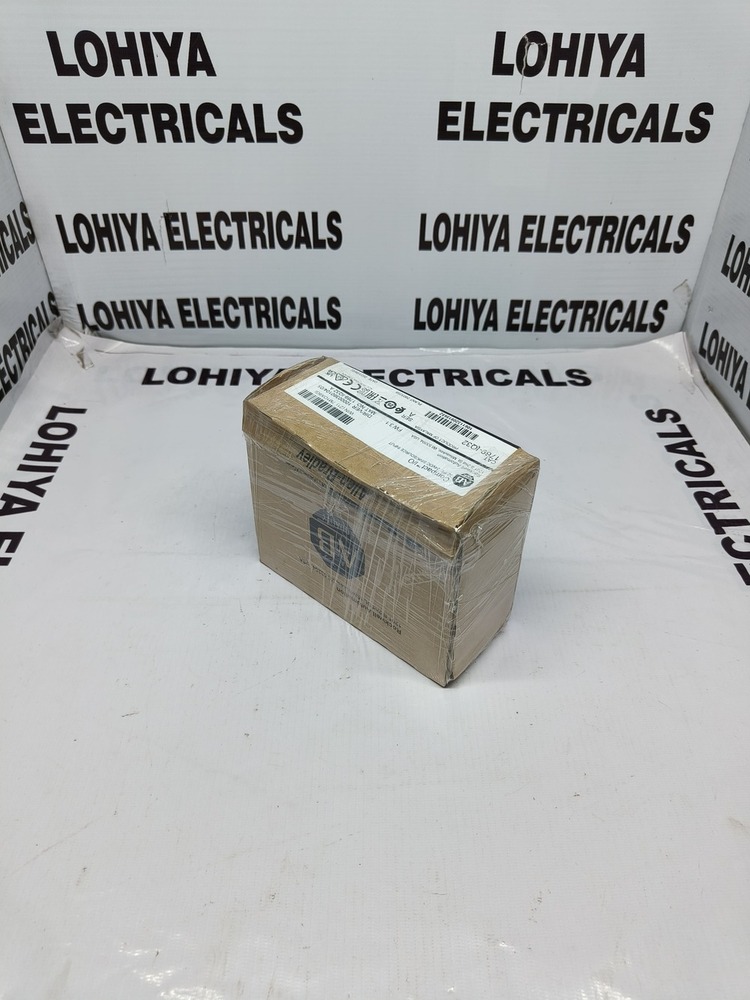

ALLEN BRADLY 1769-IQ32 INPUT MODUL

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLY 1769-IQ32 INPUT MODUL Specification

Operating Voltage
24V DC

Control System
Compatible with MicroLogix and CompactLogix PLCs

Protection Level
IP20

Thickness
Compact design (module width: 35 mm)

Way
32-point

Cover Material
Industrial-grade Plastic

Base Material
Industrial-grade Plastic

Connectivity Type
Removable terminal block

Features
Compact, High-Density Digital Inputs, Removable Terminal Block, LED Status Indicators

Cooling System
Natural cooling

Rated Current
-

Protection Class
Class II

Rated Insulation Voltage
300V

Panel Type
-

Components
Input terminals, status indicators

Rated Operation Voltage
24V DC

Current Rating
8 mA per point (typical)

Product Type
Digital Input Module

Material
Plastic and metal components

Surface Finish
Matte

Standard
Allen-Bradley / Rockwell Automation

Surface Color
Gray

Rated Voltage
24V DC

Frequency (MHz)
-

Maximum Output Current
-

Dimension (L*W*H)
87 x 35 x 118 mm

Application
Industrial Automation, PLC Expansion

IP Rating
IP20

Display Type
LED status indicators

Input Delay
ON to OFF/ OFF to ON: 3 ms (nominal)

Module Type
1769-IQ32

Field Power Supply Voltage
24V DC (+20%/-15%)

Storage Temperature
-40C to 85C (-40F to 185F)

Module Location
DIN rail or panel mount

Backplane Current (5V DC)
110 mA maximum

Mounting
Horizontal or vertical

Backplane Current (24V DC)
-

Relative Humidity
5% to 95% non-condensing

Input Signal Voltage
ON-State: 10-30V DC, OFF-State: 0-5V DC

Number of Channels
32 (digital)

Input Type
Sink/Source

Operating Temperature
0C to 60C (32F to 140F)

Isolation Voltage
Verified 350V DC for 1s

Wiring Method
Screw terminal

About ALLEN BRADLY 1769-IQ32 INPUT MODUL

The ALLEN BRADLEY 1769-IQ32 INPUT MODULE is a venerable and hot-selling choice for industrial automation. This compact, gorgeous 32-channel digital input module features inestimable value, supporting both sink and source input types with ON-state voltages of 10-30V DC. Engineered with industrial-grade plastic and metal, its robust IP20 protection, screw-terminal wiring, and LED status indicators ensure reliability. Compatible with MicroLogix and CompactLogix PLCs, this discounted module is ending soon-ideal for rapid plant upgrades. Its matte gray finish, easy installation, and high-density inputs make it indispensable for advanced PLC expansion.

Versatile Industrial Solution for Powerful Automation

The ALLEN BRADLEY 1769-IQ32 INPUT MODULE is specially crafted for precision in industrial automation, PLC expansion, and advanced plant applications. Frequently implemented in factory floors, processing plants, and large-scale automation systems, it enhances reliability and efficiency in site operations. Its 32-point digital input design is perfect for monitoring diverse field devices, making it an ideal choice for industries requiring seamless integration and scalable input handling.

Certified Quality with Reliable Shipping and Sample Policy

Our 1769-IQ32 modules adhere to the highest Allen-Bradley/Rockwell Automation standards and come with sought-after certifications for industrial usage. Sample units are available, guided by a transparent sample policy. Order processing is prompt, and shipped goods can utilize express shipping upon request. Buyers benefit from streamlined logistics, ensuring fastest delivery and excellent product support. Rest assured-each module is carefully handled for quality assurance and on-time arrival, even for urgent project needs.

FAQ's of ALLEN BRADLY 1769-IQ32 INPUT MODUL:

Q: How is the ALLEN BRADLEY 1769-IQ32 INPUT MODULE installed?

A: The module can be mounted on a DIN rail or panel and utilizes a removable terminal block for simplified wiring and easy servicing in diverse industrial setups.

Q: What are the specific usage benefits of this input module in automation?

A: With 32 digital channels and compatibility with both MicroLogix and CompactLogix PLCs, the 1769-IQ32 enhances input density while maintaining signal reliability, improving plant operation monitoring efficiency.

Q: Where can the 1769-IQ32 be effectively applied within an industrial plant?

A: This module is ideal for plant automation floors, processing areas, and control panels that require high-density digital input monitoring. Its robust design supports harsh industrial environments.

Q: When can customers expect shipped goods after placing an order?

A: Order processing is swift and, with express shipping options, customers typically receive their modules quickly, subject to logistics and shipping destination.

Q: What certifications does the ALLEN BRADLEY 1769-IQ32 module meet?

A: The module complies with Allen-Bradley/Rockwell Automation standards, ensuring it meets rigorous industrial quality and safety requirements for reliability and performance.

Q: Is a sample available prior to placing a large order?

A: Yes, sample units are available to qualifying customers as per our sample policy, helping ensure the module meets application needs before bulk procurement.
