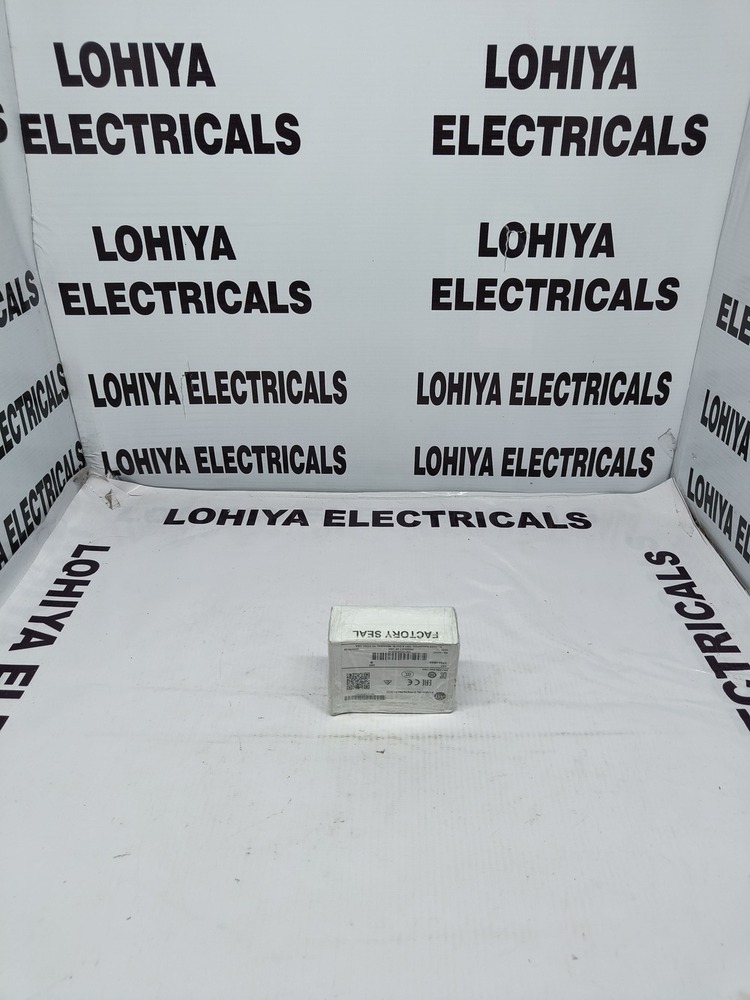

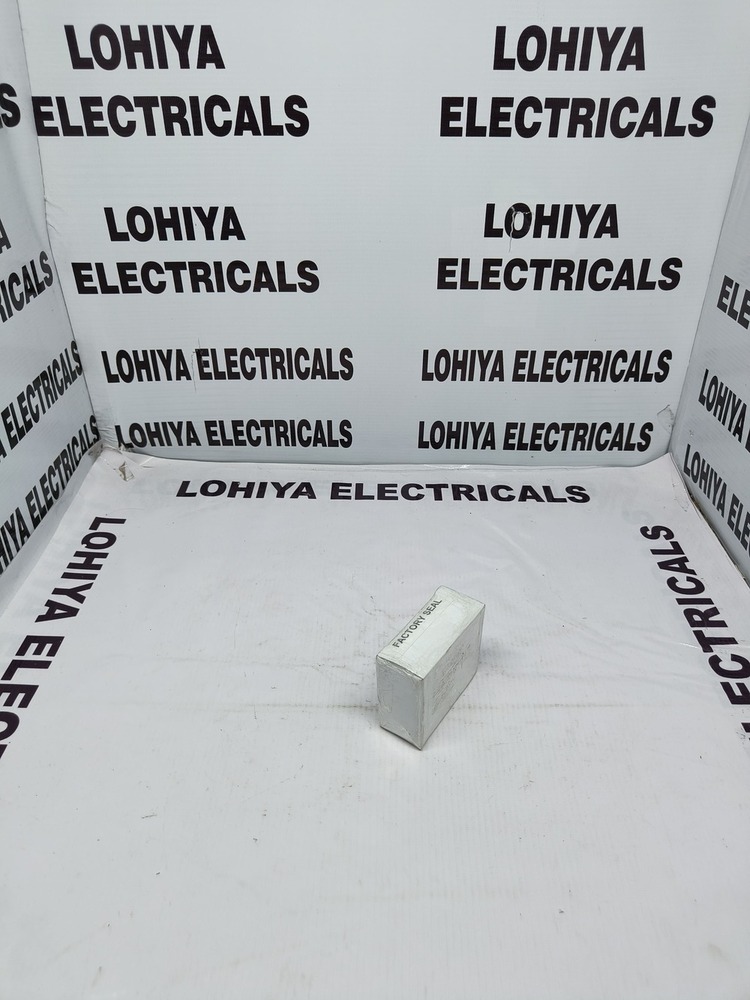

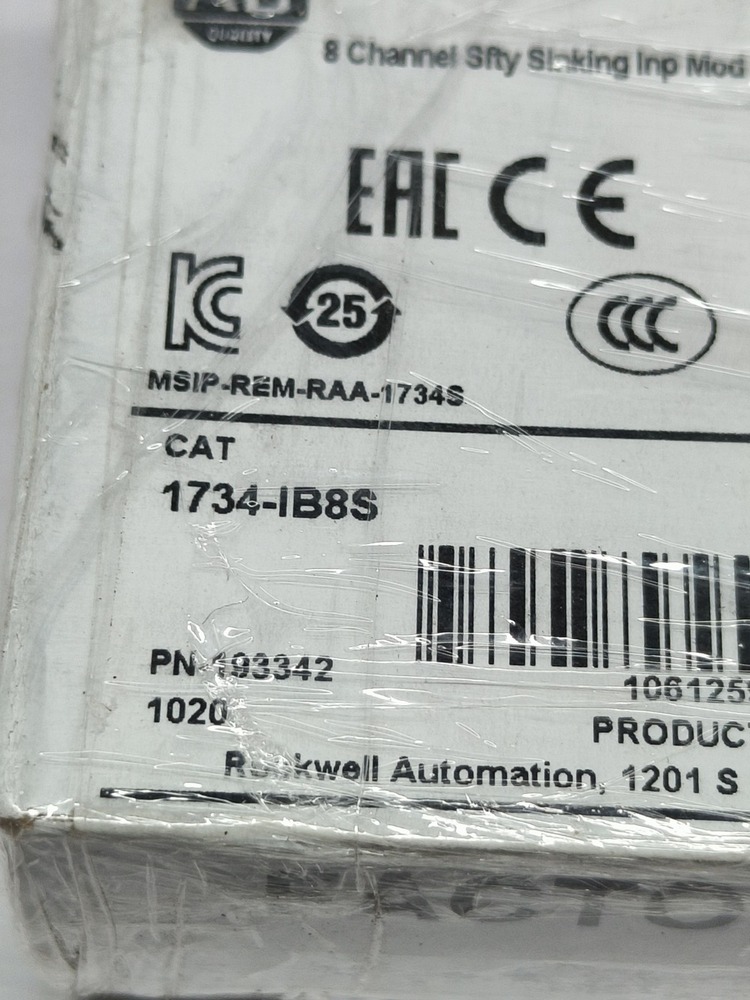

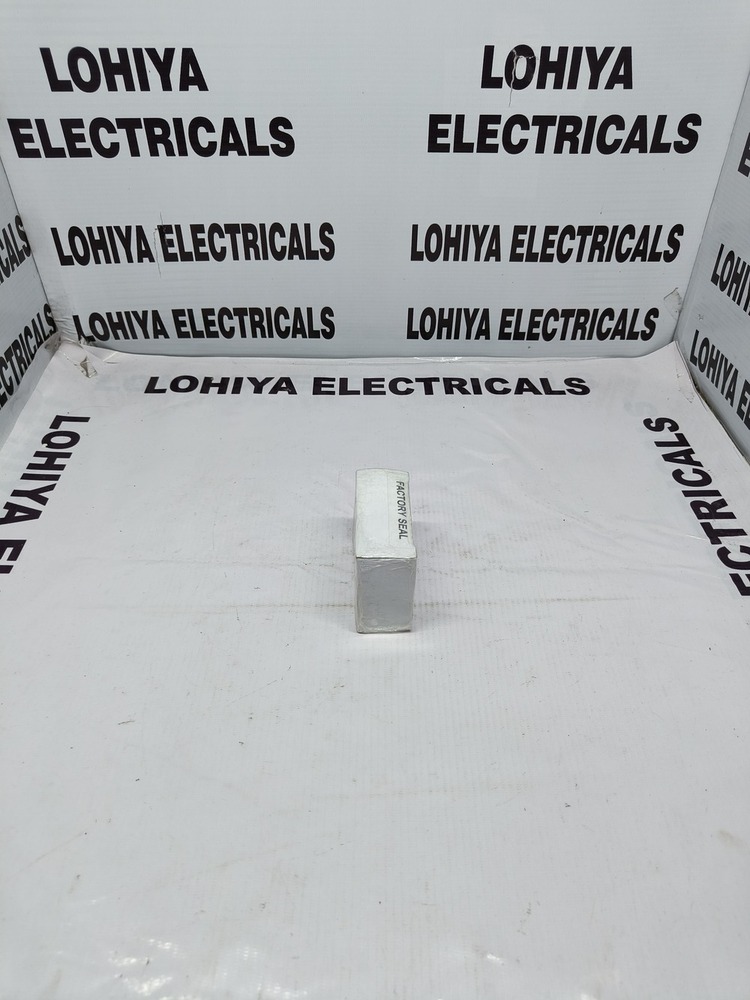

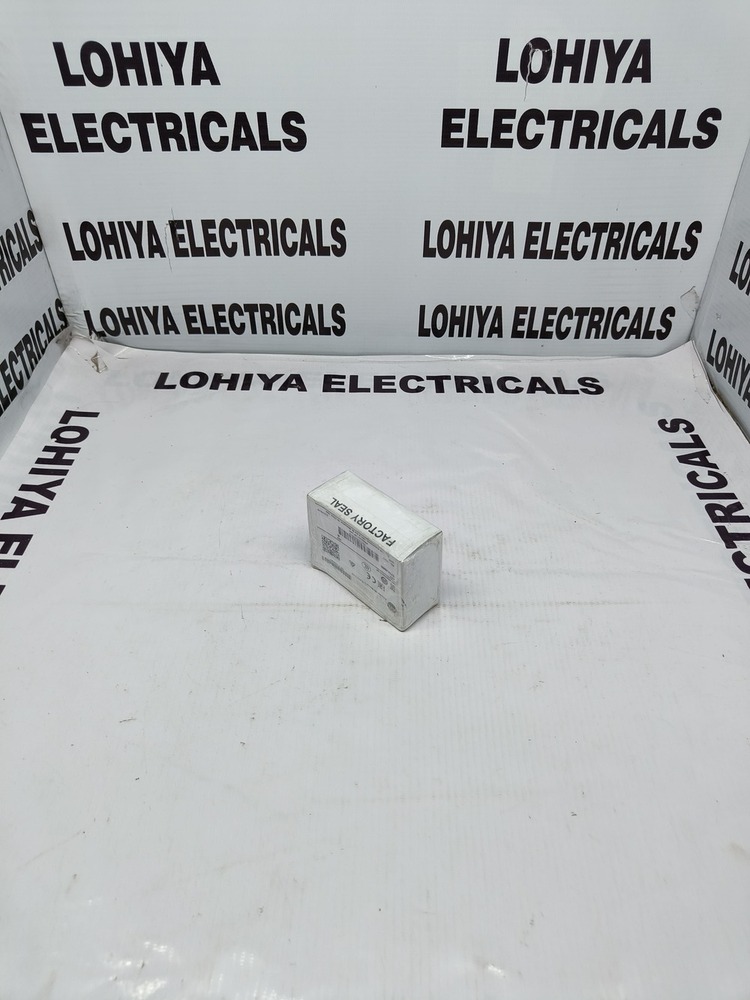

ALLEN BRADLY 1734-IB8S DIGITAL SAFETY INPUT MODULE

Send Inquiry

Request To Call Back

ALLEN BRADLY 1734-IB8S DIGITAL SAFETY INPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLY 1734-IB8S DIGITAL SAFETY INPUT MODULE Specification

Cabinet Material
Non-metallic

Protection Level
SIL3, Performance Level e (PL e)

Base Material
Industrial Polymer

Panel Type
DIN Rail Mount

Connectivity Type
POINT I/O Terminal Base

Cooling System
Natural convection

Current Rating
8mA per input

Way
8 Channels

Rated Current
8mA per channel

Protection Class
Class II

Cover Material
Industrial Polymer

Operating Voltage
19.2...28.8V DC

Rated Insulation Voltage
250V

Features
Safety-rated input, fault detection, compact size, status LEDs

Rated Operation Voltage
24V DC

Thickness
Compact design

Components
Input circuitry, safety diagnostic electronics

Control System
Compatible with POINT I/O System

Product Type
Digital Safety Input Module

Material
Plastic

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
2A per channel

Dimension (L*W*H)
75mm x 25mm x 55mm

Application
Safety Control Systems, Machine Safety

IP Rating
IP20

Display Type
LED Indicators

Field Power Supply Voltage Range
19.2...28.8V DC

No. of Inputs
8

Module Type
Safe Digital Input

Series
POINT I/O Safety

Relative Humidity
5% to 95%, non-condensing

Storage Temperature
-40C to +85C

Operating Temperature
-20C to +55C

Communication Protocol
EtherNet/IP via Safety Controller

Power Consumption
2W max

Mounting Type
DIN Rail

Response Time
<12ms

Isolation Voltage
250V Continuous

Signal Type
Discrete

Module Number
1734-IB8S

About ALLEN BRADLY 1734-IB8S DIGITAL SAFETY INPUT MODULE

Discover the top-rated ALLEN BRADLY 1734-IB8S Digital Safety Input Module, purpose-built for advanced safety control systems. With its crackerjack 8-channel safe digital input and discrete signal management, this module ensures unbeatable reliability in machine safety applications. Thanks to a radiant compact design, it fits seamlessly onto a DIN Rail and boasts a rapid response time of under 12ms. Rated for SIL3 and delivering performance level e (PL e), the 1734-IB8S operates securely within industrial environments, offering superior fault detection and efficient connectivity through EtherNet/IP via a safety controller. Find this advanced module for robust safety solutions in India.

Intended Usage and Application Site

The ALLEN BRADLY 1734-IB8S Digital Safety Input Module is ideal for integration into safety control systems used in industrial automation. Its specific usage includes monitoring safety devices, ensuring machine and worker protection in hazardous areas. Simply mount it onto a DIN Rail within the control panel, then connect safety input devices to its eight discrete channels. This radiant input module is compatible with the POINT I/O system, providing seamless deployment in high-demand industrial environments.

Certifications, Delivery, and Payment Details

Certified to IEC 61131-2 and rated SIL3, the ALLEN BRADLY 1734-IB8S is recognized for meeting stringent safety standards. Delivered securely across Indias export market, each unit is packaged to ensure optimal condition upon arrival. Standard delivery times vary, depending on location and order size, typically ranging from a few days to two weeks. Payment terms are tailored for flexibility, accommodating advance payment and other secure transaction options for a streamlined procurement process.

FAQs of ALLEN BRADLY 1734-IB8S DIGITAL SAFETY INPUT MODULE:

Q: How does the ALLEN BRADLY 1734-IB8S enhance safety in control systems?

A: The module enhances safety with SIL3-rated, performance level e inputs, robust fault detection, and fast response times, making it suitable for critical machine safety applications.

Q: What specific site applications is this input module best suited for?

A: It is best suited for industrial safety control systems, especially where machine guarding, emergency stop buttons, or other safety device monitoring is required within control panels.

Q: Where should the module be installed for optimal performance?

A: Install the module on a DIN Rail inside an industrial electrical cabinet, ensuring ambient temperatures are maintained between -20C and +55C and humidity between 5% and 95%, non-condensing.

Q: What is the process of connecting the module to a control system?

A: Simply mount the module on a DIN Rail, connect it to the POINT I/O Terminal Base, and interface it with a safety controller over EtherNet/IP for efficient integration and monitoring.

Q: What benefits does the compact design of the 1734-IB8S offer?

A: Its compact design allows for efficient use of space in crowded control panels while maintaining full diagnostic, safety, and connectivity functions, supporting flexibility and scalability in automation.
