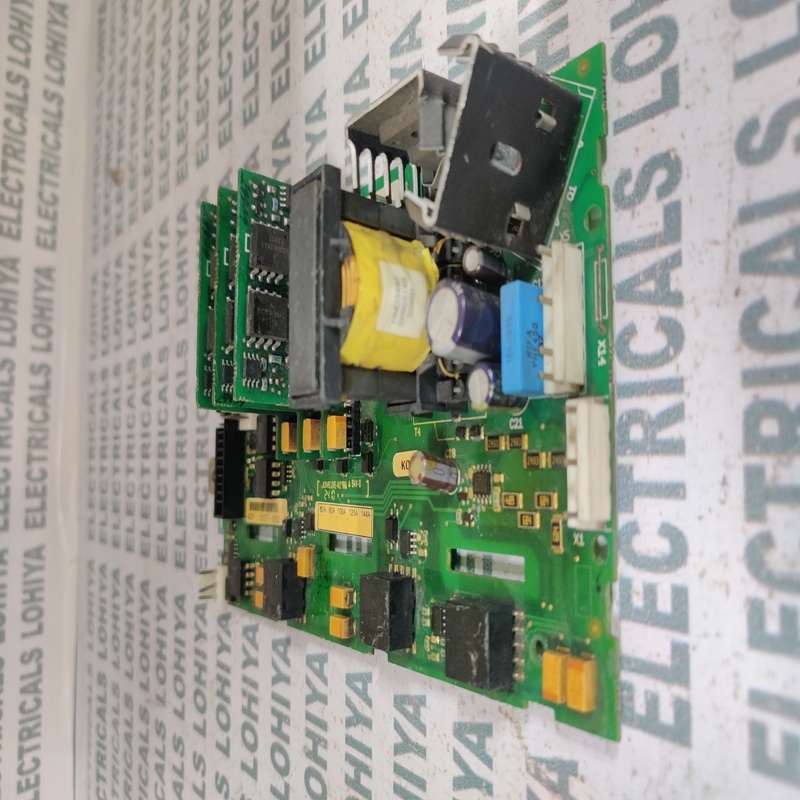

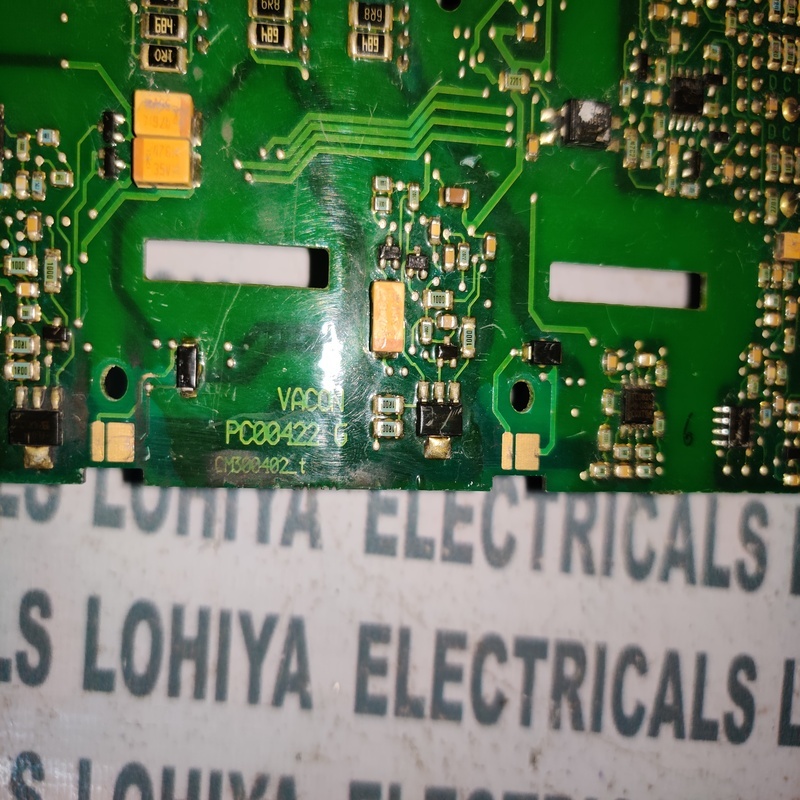

VACON PC00422 G CM300402-T DRIVE BOARD

Get a Price/Quote

VACON PC00422 G CM300402-T DRIVE BOARD Specification

Protection Level
PCB conformal coating

Cover Material
Epoxy Resin/Conformal Coating

Rated Current
Up to 15A (channel-specific)

Rated Insulation Voltage
600V AC

Connectivity Type
Through-board connectors

Way
Multi-Way

Current Rating
15A

Features
High-reliability, industrial use, replaceable, supports Vacon CM300402-T, multi-stage protection

Cabinet Material
Not enclosed (PCB only)

Thickness
1.6 mm (PCB)

Operating Voltage
24V DC (logic input), up to 600V (power components)

Protection Class
Class II (when installed in enclosure)

Base Material
FR4

Cooling System
Natural (external fan required for enclosure)

Control System
Microcontroller / DSP Controlled

Components
ICs, Power Transistors, Opto-couplers, Relays, Capacitors, Connectors

Panel Type
SMD/Through-hole mixed

Rated Operation Voltage
24V DC (logic circuit), up to 600V (power lines)

Product Type
Drive Controller Board

Material
High-quality Epoxy Laminated PCB

Surface Finish
Lead-Free HASL

Standard
OEM Vacon Standard

Surface Color
Green

Rated Voltage
DC 24V (logic), up to 600V (power stages)

Frequency (MHz)
Up to 20 MHz control circuit

Maximum Output Current
Up to 20A (per channel, application-dependent)

Dimension (L*W*H)
Approx. 290 mm x 150 mm x 15 mm

Application
Vacon AC Drive / Inverter Controllers

IP Rating
IP00 (open PCB board)

Display Type
No direct display (external connection required)

RoHS Compliance
Yes

Storage Temperature Range
-20°C to +85°C

Firmware Update Method
JTAG or UART via connector

PCB Layer
4-Layer

Operating Temperature Range
0°C to +60°C

Signal Isolation
Optical isolation for control signals

Mounting Type
Panel/Chassis mount via standoffs

Fuse Protection
On-board fuses for critical paths

Compatible Models
VACON CM300402-T series drives

About VACON PC00422 G CM300402-T DRIVE BOARD

Discover the latest, elite VACON PC00422 G CM300402-T DRIVE BOARD, designed with remarkable precision for VACON CM300402-T series drives. This popular product features spectacular on-board fuse protection, advanced optical isolation, and a robust epoxy FR4 base for high reliability. Its multi-way capability and panel/chassis mounting ensures flexible installation. With a 4-layer PCB, RoHS compliance, and a lead-free HASL finish, it provides outstanding performance up to 600V AC and 20A output. Try Now for industrial excellence and premium control solutions.

Elite Applications for Industrial Control

VACON PC00422 G CM300402-T DRIVE BOARD is tailored for Vacon AC drive and inverter controller applications. Its robust surface and SMD/through-hole mixed layout make it ideal for mounting in industrial sites. Perfect for commercial environments, the board delivers reliable multi-stage protection and seamless integration, supporting large-scale operations where precise control and durability are critical.

Certifications, Stock, and Sample Availability

The VACON PC00422 G CM300402-T DRIVE BOARD comes with RoHS certification to assure environmental compliance. Goods transport is streamlined, with stock ready for immediate shipment and sample availability for valuation before bulk purchase. Operating mainly in the domestic industrial market, this drive board supports comprehensive goods movement and secure commercial deployment, ensuring quick solutions and sustained reliability.

FAQs of VACON PC00422 G CM300402-T DRIVE BOARD:

Q: How is the VACON PC00422 G CM300402-T DRIVE BOARD mounted?

A: The drive board supports panel or chassis mounting via standoffs, providing flexibility for installation in various industrial enclosures or control panels.

Q: What compatible models can use this drive board?

A: It is specifically designed for use with VACON CM300402-T series drives, ensuring optimal compatibility and performance within this product line.

Q: When can samples of the drive board be requested?

A: Samples are available for evaluation and testing prior to placing bulk orders, allowing for thorough product valuation and compatibility assessment.

Q: Where is VACON PC00422 G CM300402-T DRIVE BOARD typically applied?

A: It is widely used in industrial and commercial settings, especially for Vacon AC drive and inverter controller applications where high reliability and protection are vital.
