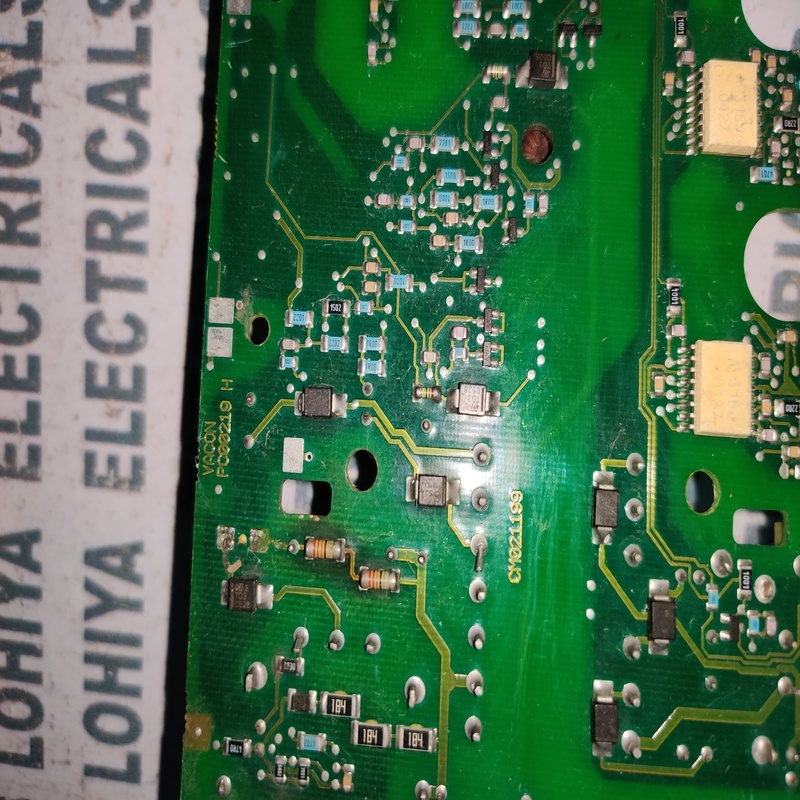

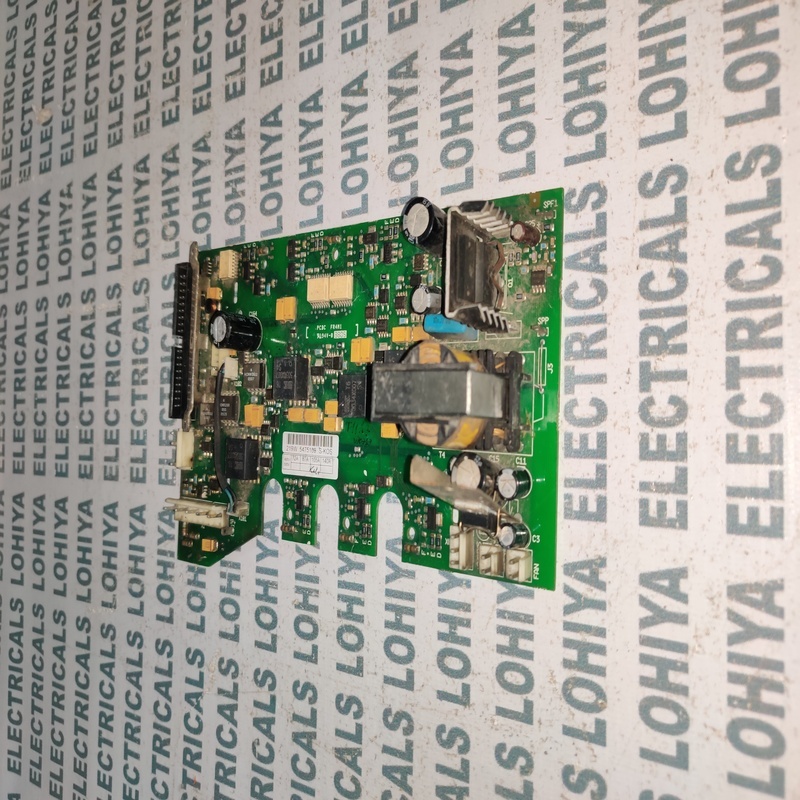

VACON PC00219H CM021199 DRIVE BOARD

Get a Price/Quote

VACON PC00219H CM021199 DRIVE BOARD Specification

Current Rating
6A Max

Way
Single Side Load & Signal Routing

Rated Insulation Voltage
500V

Base Material
Flame Retardant Epoxy

Protection Class
Class I, PCB Assembly

Cover Material
Not Applicable (Exposed PCB)

Connectivity Type
Screw Terminal, Header Connector

Cabinet Material
Installed within VACON enclosure

Cooling System
No On-board; Uses Drive Enclosure Cooling

Components
Integrated Circuits, Capacitors, Relays, Connectors

Operating Voltage
24V DC (Logic), 400V AC (Power)

Protection Level
PCB Conformal Coating

Rated Operation Voltage
400V AC

Thickness
1.6 mm (PCB)

Panel Type
Embedded Module

Control System
Microcontroller-driven Signal Control

Features
Reliable Performance, Easy Integration, Genuine OEM Replacement

Rated Current
6A Max

Product Type
Drive Control Board

Material
FR4 Epoxy PCB, High-grade Electronic Components

Surface Finish
HASL (Hot Air Solder Leveling)

Standard
OEM/Original Manufacturer

Surface Color
Green

Rated Voltage
24V DC (Control Circuit); 400V AC (Power Circuit)

Frequency (MHz)
50/60 Hz Compatible

Maximum Output Current
Up to 6A (Module Specific)

Dimension (L*W*H)
Approx. 270mm x 122mm x 20mm

Application
VACON Drive and Frequency Inverter System

IP Rating
Not rated; for internal mounting only

Display Type
Not Directly Equipped

OEM Reference
VACON Genuine Spare

Fuse Protection
Provided on Board

Storage Temperature
-20°C to +80°C

Mounting Type
Screw Mounting on Drive Chassis

Humidity Tolerance
< 95% RH (non-condensing)

Weight
Approx. 400g

Operating Temperature
-10°C to +60°C

Compatibility
Compatible with select VACON frequency converter modules

PCB Layers
Double Layer

Board Name/Code
VACON PC00219H CM021199

About VACON PC00219H CM021199 DRIVE BOARD

Buy online the crackerjack VACON PC00219H CM021199 DRIVE BOARD, a potent and majestic solution for frequency converter modules. Favorable reviews praise its reliability and genuine OEM replacement quality. Designed with screw mounting for drive chassis, this FR4 epoxy PCB delivers optimal safety and integration, boasting double-layer construction and fuse protection. Operating across -10C to +60C, it withstands high humidity and provides seamless performance. Rated for 24V DC and 400V AC with up to 6A output, order today to experience dependable control and effortless maintenance.

Application Places & Direction of Use for VACON PC00219H CM021199 DRIVE BOARD

The VACON PC00219H CM021199 DRIVE BOARD is expertly crafted for integration into VACON drive and frequency inverter systems. Suitable for internal cabinet installation, it excels in industrial automation settings, factories, and power management applications. To use, simply install via screw mounting onto the drive chassis, connect with provided screw terminals, and ensure proper enclosure cooling. This embedded module ensures seamless compatibility with VACON systems, offering reliable microcontroller-driven control for optimized performance.

Main Export Markets, Supply Ability & Outlay

The VACON PC00219H CM021199 DRIVE BOARD mainly supplies to European and Asian domestic markets, catering to industries seeking reliable frequency inverter solutions. With robust supply ability, orders are efficiently fulfilled through the designated FOB port. Customers benefit from competitive outlay, ensuring access to genuine OEM products. Trusted traders and suppliers streamline domestic and international shipments, delivering consistent quality. The board is an ideal outlay for those prioritizing top-notch operational control in their VACON systems.

FAQs of VACON PC00219H CM021199 DRIVE BOARD:

Q: How do I properly install the VACON PC00219H CM021199 DRIVE BOARD?

A: Install the board by screwing it onto the drive chassis within the VACON enclosure, following manufacturer instructions for connector attachment and ensuring enclosure cooling for optimal performance.

Q: What applications is the VACON PC00219H CM021199 DRIVE BOARD suitable for?

A: This board is ideal for integration in VACON frequency inverter systems, commonly used in automation, industrial machinery, and power management setups requiring dependable signal and control routing.

Q: When should the VACON PC00219H CM021199 DRIVE BOARD be replaced?

A: Replacement is recommended when drive system diagnostics indicate board failure or during scheduled maintenance, ensuring minimal downtime and sustained operational reliability.

Q: Where can I buy the VACON PC00219H CM021199 DRIVE BOARD online?

A: You can purchase the drive board online from authorized suppliers or OEM traders specializing in VACON genuine spare parts for prompt and reliable delivery.

Q: What benefits does using a genuine OEM VACON PC00219H CM021199 DRIVE BOARD offer?

A: Utilizing this genuine OEM board guarantees optimal compatibility, reliable control performance, and easy integration, supporting the longevity and efficiency of your VACON drive system.

Q: What is the process for ordering and lead times?

A: Ordering is straightforward via online platforms or directly through traders; supply ability is robust and usually fulfilled from the designated FOB port, with standard lead times based on order quantity and location.
