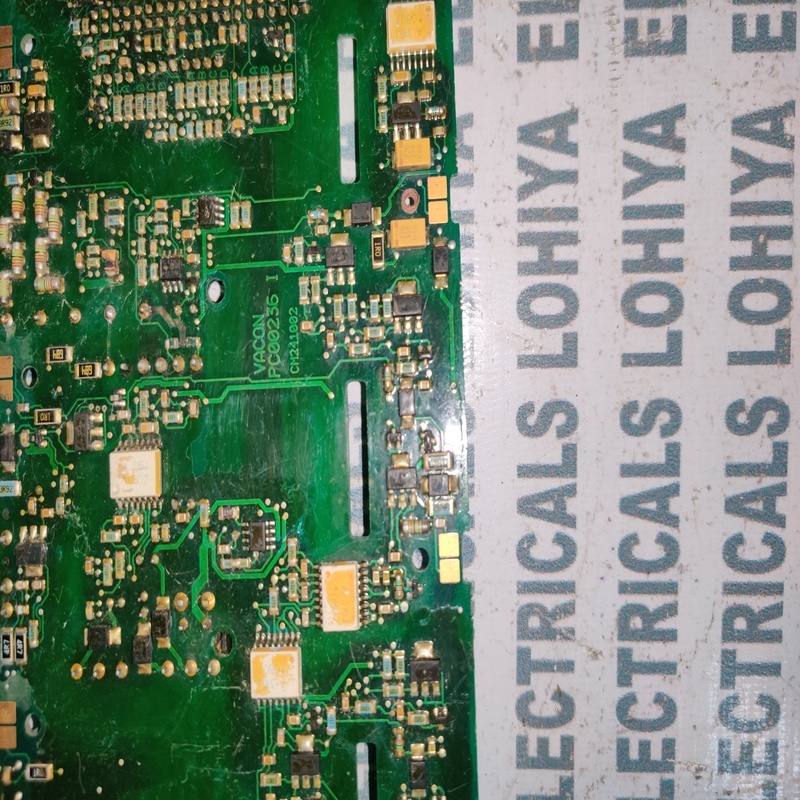

VACON PC00236 I CM241002 DRIVE BOARD

Get a Price/Quote

VACON PC00236 I CM241002 DRIVE BOARD Specification

Cover Material
N/A (PCBA)

Current Rating
10 A

Protection Class
Conformal Coating, ESD Protection

Connectivity Type
Edge Connectors, Screw Terminal Ports

Operating Voltage
24 V DC (Logic), 690 V AC (Drive)

Way
Multi-Layer

Control System
Microcontroller-based

Rated Insulation Voltage
800 V AC

Panel Type
Controller/Drive Interface

Base Material
FR4 Epoxy Glass

Rated Operation Voltage
690 V AC Max

Thickness
1.6 mm (PCB)

Protection Level
Conformal Coated

Cooling System
External Forced Air (via drive)

Rated Current
10 A

Cabinet Material
Not Applicable (PCB)

Features
Supports VACON VFD, Fast Switching, Multi-layer circuit design, OEM quality, Fault/Status Indication

Components
Microprocessor, Power MOSFETs, Relays, Connectors, Passive Components

Product Type
Drive Board / Control Board

Material
High-grade PCB (Printed Circuit Board), Electronic Components

Surface Finish
Solder Masked, Glossy Finish

Standard
OEM (Original Equipment Manufacturer) Specification

Surface Color
Green

Rated Voltage
24 V DC (Control), Up to 690 V AC (Drive)

Frequency (MHz)
50/60 Hz operation

Maximum Output Current
10 A

Dimension (L*W*H)
250 mm x 130 mm x 18 mm (approx)

Application
VACON VFD (Variable Frequency Drive) Series, Industrial Automation

IP Rating
IP00 (PCB Assembly only)

Display Type
None (Board level product)

RoHS Compliance
Yes

Board Series
Industrial Drive Interface Board

Special Function
Short Circuit and Overload Protection; Communication Bus Supported; Diagnostic LED Points

Signal Type
Digital/Analog Interface

Weight
Approx. 220g

Mounting Type
PCB Mount / Screw Mount Holes

Operating Temperature Range
-10°C to +60°C

Lifecycle Status
Active

Model Number
PC00236 / CM241002

About VACON PC00236 I CM241002 DRIVE BOARD

Take advantage of the celebrated VACON PC00236 I CM241002 DRIVE BOARD, a masterpiece in industrial drive interface technology now available at a reduced price. Customizable for demanding industrial automation tasks, this first-string PCB-mounted controller delivers reliable digital/analog signal interfacing and robust short circuit and overload protection. Designed to OEM specifications, it features multi-layer high-grade FR4 epoxy glass with glossy solder-masked finish and RoHS compliance. Supporting VACON VFD Series, it combines diagnostic LEDs, fast switching, and conformal coating to achieve optimal performance and durability.

Superior Functionality for Industrial Automation

The VACON PC00236 I CM241002 DRIVE BOARD is used as a control and interface solution for VACON VFD Series, supporting advanced variable frequency drive operations. Its primary competitive advantages include multi-layer, conformal coated design for enhanced durability, reliable overload protection, and versatile mounting options. Intended for industrial use, this board offers secure connectivity and efficient signal management, setting a benchmark in the drive controller category.

Sample Options, Packaging, and Payment Flexibility

Samples of the VACON PC00236 I CM241002 DRIVE BOARD can be arranged for evaluation or export market requirements, with charges as per supply agreements. Packaging details ensure secure transit with robust anti-static measures. Payment terms are flexible, accommodating various buyer needs to streamline procurement and global shipping processes. This approach guarantees customer satisfaction and smooth transaction handling for suppliers and traders.

FAQs of VACON PC00236 I CM241002 DRIVE BOARD:

Q: How does the VACON PC00236 I CM241002 DRIVE BOARD contribute to industrial automation processes?

A: The drive board provides precise control and communication with VACON VFD systems, enabling efficient motor management, fault detection, and protected operation in various industrial environments.

Q: What are the mounting options available for this drive board?

A: The board supports PCB mounting as well as screw mount holes, offering flexibility in installation and ensuring compatibility with different equipment configurations.

Q: When is a sample of the VACON PC00236 I CM241002 DRIVE BOARD available for testing?

A: Samples can be provided upon request, with supply charges and terms agreed upon during the export market negotiation process.

Q: Where can this drive board be used effectively?

A: It is best utilized in VACON VFD applications, industrial automation systems, and environments requiring robust controller/drive interfacing.

Q: What protection features are integrated into the drive board?

A: The board includes short circuit and overload protection, diagnostic LED indicators, ESD safeguards, and a conformal coating for enhanced reliability.
