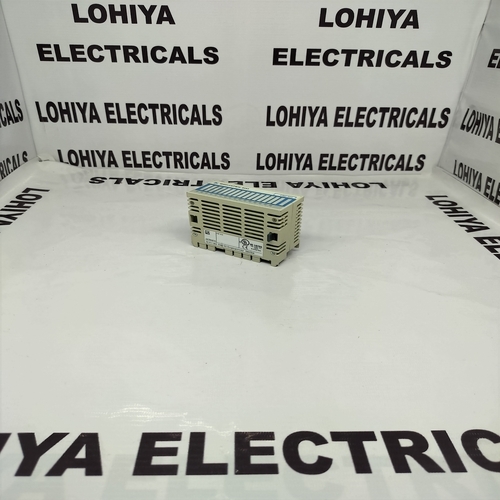

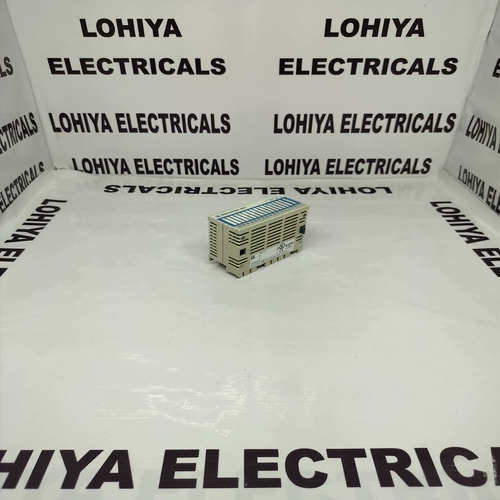

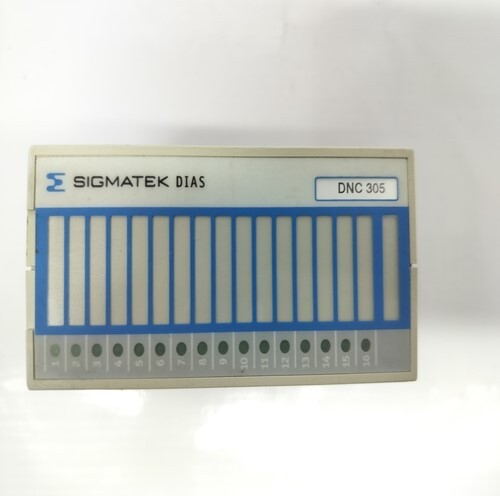

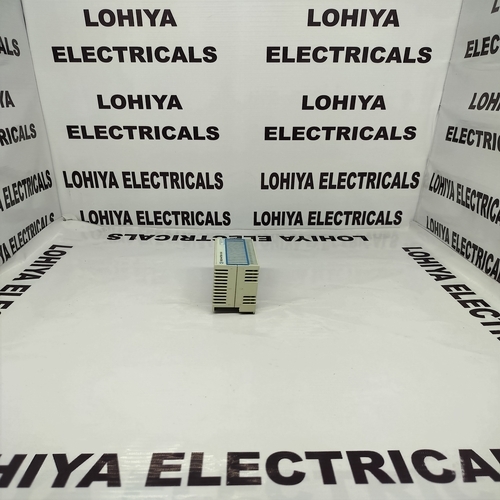

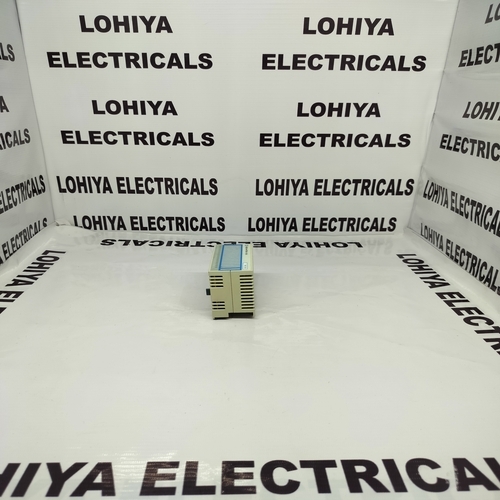

SIGMATEK DNC 305 DIGITAL INPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

SIGMATEK DNC 305 DIGITAL INPUT MODULE Specification

Protection Level
Overvoltage and Reverse Polarity Protection

Panel Type
DIN Rail Mounting

Features
Hot Swap Capability, Channel Diagnostics, Compact Size

Connectivity Type
Removable Terminal Blocks

Current Rating
4 mA/channel

Thickness
Standard Module Thickness

Rated Insulation Voltage
500V AC

Rated Current
4 mA per channel

Control System
SIGMATEK Control System Compatible

Cooling System
Natural Air Cooling

Components
PLC Input Terminals, Status LEDs

Cover Material
Polycarbonate

Cabinet Material
Polycarbonate

Operating Voltage
24V DC

Base Material
Polycarbonate

Rated Operation Voltage
24V DC

Protection Class
Class II

Product Type
Digital Input Module

Material
Industrial Grade Plastic, Electronic Components

Surface Finish
Matte

Standard
IEC 61131

Surface Color
Light Grey

Rated Voltage
24V DC

Frequency (MHz)

Maximum Output Current

Dimension (L*W*H)
104 x 35 x 72 mm

Application
Industrial Automation, PLC Systems

IP Rating
IP20

Display Type
LED Channel Indicators

Wiring Type
Screw Terminal

Relative Humidity
5% to 95%, non-condensing

Weight
Approx. 120 g

Operating Temperature Range
0C to +55C

Storage Temperature Range
-25C to +70C

Number of Digital Inputs
16 channels (24V DC sinking/sourcing)

Mounting Method
35 mm DIN Rail

Input Signal Type
PNP/NPN compatible

Input Delay
5 ms (typical)

About SIGMATEK DNC 305 DIGITAL INPUT MODULE

The SIGMATEK DNC 305 DIGITAL INPUT MODULE is a formidable addition to any industrial automation lineup. Designed for heroic performance, this scarce and select module boasts 16 customizable digital input channels, supporting both PNP and NPN signals for potent versatility. The device is engineered with robust overvoltage and reverse polarity protection, and features hot swap capability, providing operational flexibility. Encased in industrial-grade polycarbonate, the matte light grey finish complements its rigorous IEC 61131 standard compliance. Mounting is effortless via a 35 mm DIN rail, making it a turnkey solution for complex PLC systems where reliability and precision are paramount.

Superior Application Features and Advantages

The SIGMATEK DNC 305 DIGITAL INPUT MODULE stands out for its compact form, hot swap capability, and advanced channel diagnostics. Designed for industrial automation and PLC systems, this module ensures reliable, real-time response and status indication through LED channel indicators. Customizable input options and formidable protection levels enhance operational safety and efficiency, making it ideal for demanding environments where precision and durability are essential competitive advantages.

Supply Capability and Pricing Commitment

SIGMATEK DNC 305 DIGITAL INPUT MODULE is supplied nationwide with high shipment frequency from Indias leading ports. Sample units are available for initial evaluation, and we guarantee the lowest price for bulk orders. Every module is shipped promptly to ensure rapid deployment at your facility. With strong supply ability and responsive support, traders and suppliers ensure fast fulfillment and comprehensive after-sales care for every shipment.

FAQs of SIGMATEK DNC 305 DIGITAL INPUT MODULE:

Q: How can I customize the SIGMATEK DNC 305 DIGITAL INPUT MODULE for my application?

A: You can select the input type (PNP/NPN), configure programmable input channels, and utilize its removable terminal blocks for tailored system integration, ensuring compatibility with your PLC requirements.

Q: What are the principal features that set the DNC 305 apart in industrial automation?

A: It offers 16 digital inputs, hot swap capability, advanced diagnostics, overvoltage and reverse polarity protection, and compact design, making it formidable for critical industrial and PLC systems.

Q: Where can I source samples or bulk orders of the SIGMATEK DNC 305 module?

A: You can source samples or bulk shipments from authorized suppliers and traders across India, with modules shipped from major FOB ports to ensure fast delivery and competitive pricing.

Q: When should I consider using the DNC 305 module in my automation system?

A: Its ideal when you need a potent, reliable input module for industrial environments, with DIN rail mounting and superior operational safety features, especially in scalable PLC applications.

Q: What benefits do the channel diagnostics and LED indicators offer?

A: Channel diagnostics and LED indicators provide instant status feedback, streamline troubleshooting, and boost uptime by allowing proactive monitoring of each input channel in real time.

Q: How does the hot swap capability improve maintenance processes?

A: Hot swap capability allows modules to be replaced or added while the system is operational, reducing downtime and simplifying maintenance without interrupting ongoing automated processes.
