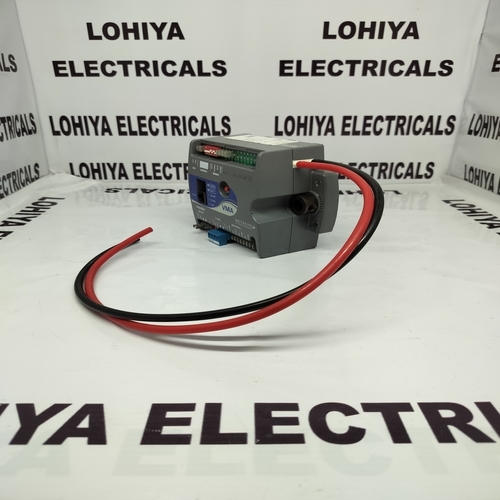

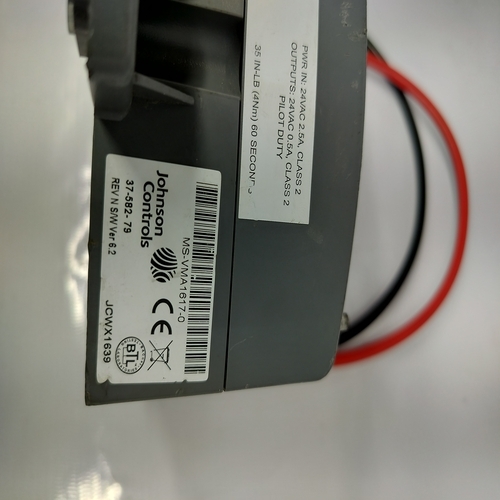

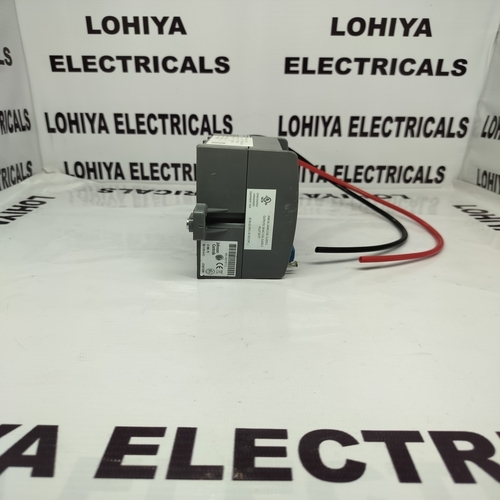

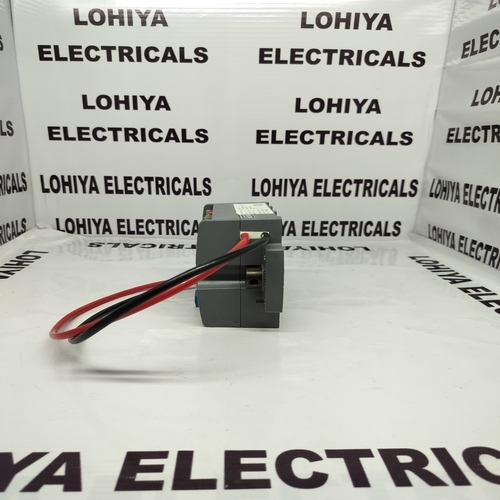

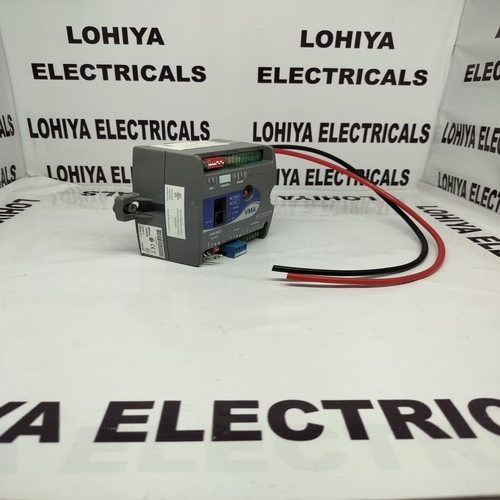

JOHNSON CONTROLS MS-VMA1617-0 CONTROLLER

Get a Price/Quote

MOQ : 1 Piece

JOHNSON CONTROLS MS-VMA1617-0 CONTROLLER Specification

Protection Level
IP20

Base Material
Plastic

Components
Microprocessor, I/O Terminals, Communications Port

Rated Current
Depends on output, up to 0.5 A per output

Cooling System
Passive, convection ventilation

Protection Class
Class 2

Operating Voltage
24 VAC

Cabinet Material
Plastic

Current Rating
0.5 A (Digital Outputs)

Panel Type
Modular electronic panel

Connectivity Type
MS/TP (BACnet) communication

Rated Operation Voltage
24 VAC

Thickness
Approximately 40 mm

Features
Integrated actuator, BACnet MS/TP communication, preloaded applications, service port, plug-in terminals

Control System
Direct Digital Control (DDC)

Way
Single (for individual VAV box control)

Cover Material
Plastic

Product Type
Controller, Variable Air Volume (VAV)

Material
Plastic, Metal components

Surface Finish
Matte

Standard
UL 916, CE, C-Tick, FCC compliant

Surface Color
Gray

Rated Voltage
24 VAC 20%, 50/60 Hz

Frequency (MHz)
50/60 Hz

Maximum Output Current
0.5 A max (per digital output)

Dimension (L*W*H)
180 mm x 144 mm x 40 mm (approx.)

Application
HVAC control for Variable Air Volume (VAV) systems

IP Rating
IP20

Display Type
On-board status LEDs

Binary Outputs
3 (triac outputs)

Analog Inputs
4 (configurable)

Model Number
MS-VMA1617-0

Binary Inputs
4 (configurable)

Onboard Actuator Torque
35 to 85 in-lb (4 to 10 Nm)

Analog Outputs
1

Ambient Operating Humidity
10% to 90% RH non-condensing

Mounting Type
Direct-mount on VAV box

Communication Protocol
BACnet MS/TP

Ambient Operating Temperature
0C to 50C (32F to 122F)

Power Consumption
8 VA maximum

Service Port
Mini-B USB for local configuration

About JOHNSON CONTROLS MS-VMA1617-0 CONTROLLER

Buy the JOHNSON CONTROLS MS-VMA1617-0 CONTROLLER for affordable and outstanding HVAC control in modern environments. This kingly device is decorated with advanced features such as four configurable analog and binary inputs, a strong 35-85 in-lb onboard actuator, BACnet MS/TP communication, and integrated status LEDs. Ideal for VAV systems, this controller guarantees precise, reliable performance. Order now to experience robust digital control, secure installation, and long-lasting durability. Trusted supplier and trader in India-make your HVAC systems exceptional with the MS-VMA1617-0!

Versatile Controller for HVAC Automation

The JOHNSON CONTROLS MS-VMA1617-0 CONTROLLER is used for precise Variable Air Volume (VAV) control in HVAC systems, regulating airflow with reliability. Utilized in building automation, it features an integrated actuator and user-friendly plug-in terminals. This outstanding machine is decorated with configurable inputs and outputs, digital control, preloaded applications, and onboard status LEDs, making operation easy and effective. This controller is the preferred choice for energy-efficient, kingly automation in commercial, institutional, and industrial buildings.

Certified Quality and Prompt Delivery

The JOHNSON CONTROLS MS-VMA1617-0 CONTROLLER is certified by UL 916, CE, C-Tick, and FCC, ensuring global standards of quality and safety. Secure shipping and careful packaging guarantee every unit is shipped safely to your site. With reliable supply ability and efficient logistics, your purchase order is processed swiftly for timely delivery throughout India. Choose us for your controller needs and benefit from outstanding service and support with each order.

FAQ's of JOHNSON CONTROLS MS-VMA1617-0 CONTROLLER:

Q: How does the MS-VMA1617-0 controller improve HVAC system performance?

A: The MS-VMA1617-0 controller ensures outstanding airflow regulation and precise VAV box control by using advanced direct digital control with configurable inputs and outputs, resulting in energy efficiency and optimized comfort.

Q: What are the main features of the JOHNSON CONTROLS MS-VMA1617-0 CONTROLLER?

A: Key features include integrated actuator with 35-85 in-lb torque, BACnet MS/TP communication, onboard status LEDs, preloaded applications, secure plug-in terminals, configurable analog and binary inputs/outputs, and passive convection cooling.

Q: Where is this controller typically used?

A: This controller is primarily used in commercial, institutional, and industrial buildings for Variable Air Volume (VAV) HVAC systems, enhancing indoor climate control and energy management.

Q: What certifications does this controller hold?

A: The controller meets several international quality and safety standards, including UL 916, CE, C-Tick, and FCC compliance, making it suitable for a wide range of global applications.

Q: What is the process for ordering and receiving the product?

A: Place a purchase order through our platform, and benefit from secure shipping and efficient delivery. Orders are processed quickly, ensuring timely receipt and reliable supply across India.

Q: What are the benefits of its modular design and integrated actuator?

A: The modular design with integrated actuator allows for simple, direct mounting on VAV boxes, minimizing installation time and providing robust, kingly performance for long-term operation.
