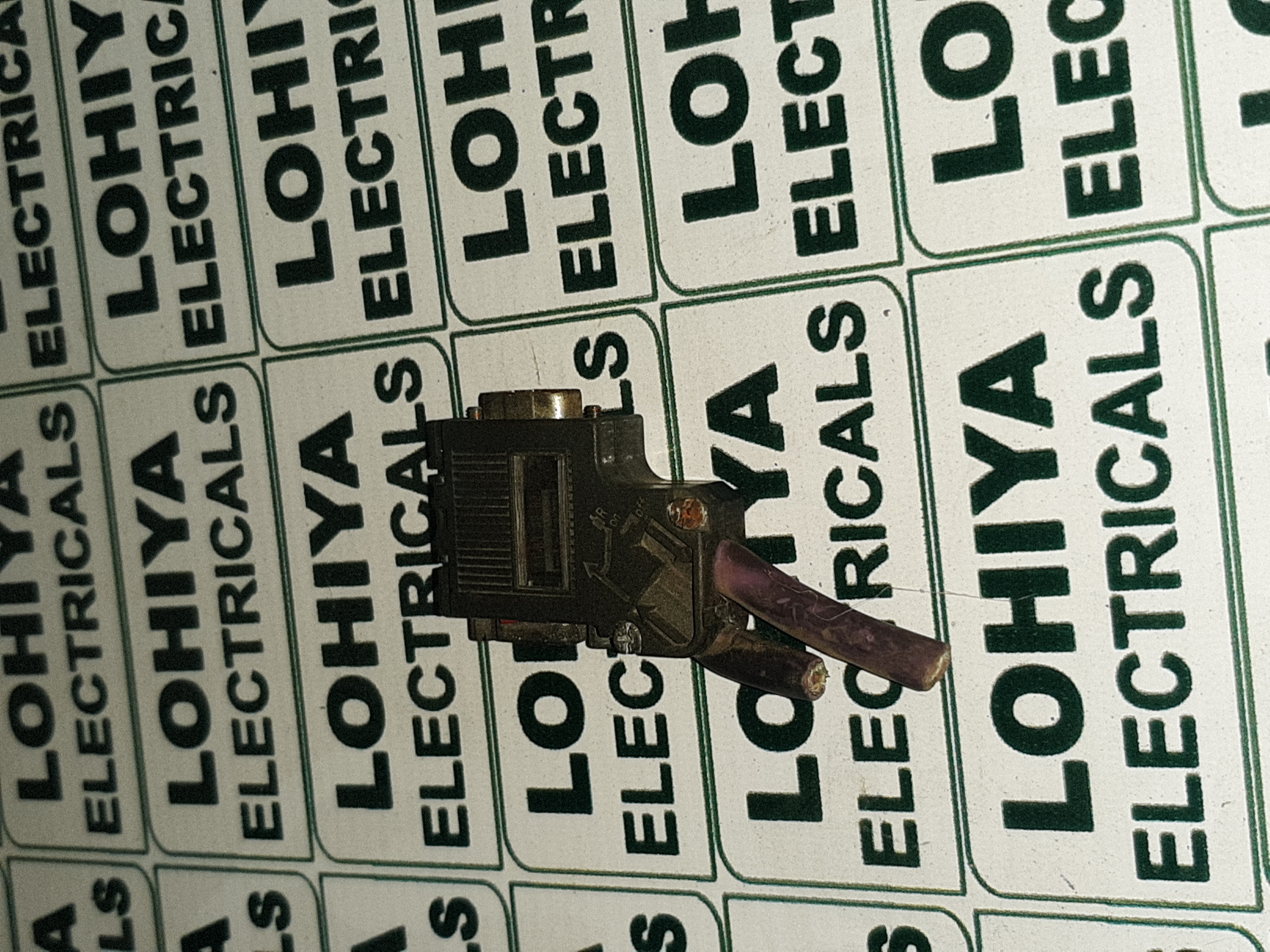

SIEMENS PROFIBUS CONNECTOR 6ES7 972-0BA42-0XA0

Get a Price/Quote

SIEMENS PROFIBUS CONNECTOR 6ES7 972-0BA42-0XA0 Specification

IP Rating
IP20

Insulation Material
Plastic

Shape
Rectangular

Connector Type
DB9 Female

Surface Finish
Matte

Mounting Type
Panel Mount

Feature
Integrated PG (Programming) Port with Switchable Termination

Overheating Protection
YES

Efficiency
High Signal Integrity

Humidity %
Max 95% (non-condensing)

Operating Temperature
-25C to +60C

Product Type
PROFIBUS Connector

Application
Industrial Automation, PROFIBUS DP Networks

Protection Level
IP20

Frequency (MHz)
Up to 12 Mbps Supported

Rated Voltage
5 V DC

Energy Consumption
Low

Output Type
DB9 Female

Color
Grey

Dimension (L*W*H)
Approx. 58 mm x 40 mm x 16 mm

Weight
60 g

Size
Standard

Phase
Single Phase

Input Voltage
5 V DC

No Of Poles
9

Material
Metal and Plastic

Connection Type
Screw Terminal

Termination
Switchable (integral termination resistor)

Contact Plating
Gold plated contacts for improved conductivity

Cable Entry
45° Angle

Wire Size Supported
0.25 mm² to 0.5 mm²

Standards Compliance
PROFIBUS DP Standard EN 50170

Vibration Resistance
Acc. to IEC 60068-2-6

Mechanical Durability
>200 Cycles Insertion/Withdrawal

Storage Temperature
-40°C to +70°C

Baud Rate Support
Up to 12 Mbps

PG Port
Yes, Integrated for Programming Devices

Package Includes
1x PROFIBUS Connector, User Manual

About SIEMENS PROFIBUS CONNECTOR 6ES7 972-0BA42-0XA0

Discover matchless efficiency with the SIEMENS PROFIBUS CONNECTOR 6ES7 972-0BA42-0XA0, now at a reduced price for significant savings. This new connector brings perfect integration for industrial automation, featuring a 45 cable entry, gold-plated contacts, and switchable termination for ineffable signal integrity. Compliant with the PROFIBUS DP Standard EN 50170, it supports baud rates up to 12 Mbps and works with wire sizes from 0.25 mm to 0.5 mm. Its rugged metal/plastic build, panel mount design, and IP20 protection ensure reliability in demanding industrial environments. Enjoy easy connection, superior durability, and integrated PG portall in a compact, energy-efficient package.

Key Features & Application of the SIEMENS PROFIBUS CONNECTOR

Experience high signal integrity with gold-plated contacts and a switchable termination resistor integrated seamlessly into the SIEMENS PROFIBUS CONNECTOR 6ES7 972-0BA42-0XA0. Designed for effortless panel mounting, this connector is best suited for industrial automation systems and PROFIBUS DP networks. Its robust construction and 45 cable entry ensure perfect installation even in compact spaces, while the integrated PG port offers enhanced connectivity for programming devices directly at the site of application.

Certifications, Export Markets & Payment Terms

This Siemens connector is fully compliant with PROFIBUS DP Standard EN 50170 and vibration resistance per IEC 60068-2-6, ensuring industrial-grade quality. Our main export markets include Europe, Asia, and the Middle East. Dispatching is prompt after payment clearance, and the sale price is highly competitive. Freight charges vary based on destination. We accept major payment terms, including bank transfers and L/C, making procurement simple and secure for all our buyers.

FAQs of SIEMENS PROFIBUS CONNECTOR 6ES7 972-0BA42-0XA0:

Q: How does the switchable termination feature benefit my PROFIBUS installation?

A: The switchable termination resistor ensures efficient signal transmission and prevents signal reflections, leading to improved reliability and integrity in your PROFIBUS DP network.

Q: What is the process for installing the SIEMENS PROFIBUS CONNECTOR?

A: Installation is straightforward: use the screw terminal connection, secure the 45 cable entry, and mount the connector on the panel. The integrated PG port and switchable termination further simplify setup.

Q: Where is the optimal site of application for this connector?

A: This connector is ideally suited for industrial automation settings and PROFIBUS DP networks, where robust, reliable, and compact connectivity solutions are needed.

Q: What certifications does the SIEMENS PROFIBUS CONNECTOR meet?

A: It conforms to PROFIBUS DP Standard EN 50170 and vibration resistance according to IEC 60068-2-6, ensuring matchless quality and performance in challenging industrial environments.
