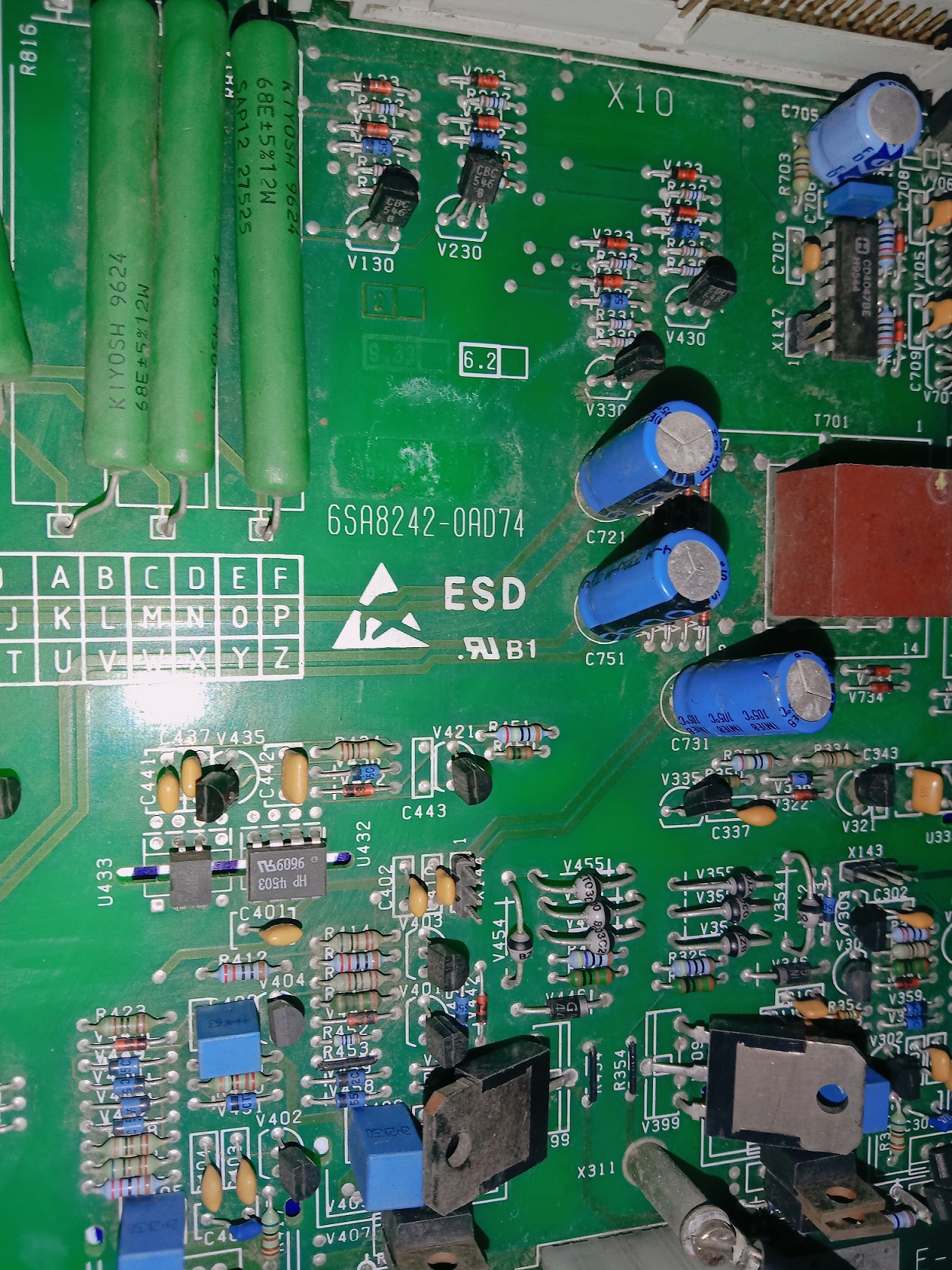

SIEMENS PCB INVERIER PCB 6SA8242-0AD74

Get a Price/Quote

SIEMENS PCB INVERIER PCB 6SA8242-0AD74 Specification

Cooling Method
Natural convection or forced air (depending on installation)

Current Range
Up to 8.0 A

Working Temperature
-10C to +50C

Features
High efficiency, compact design, Siemens reliability, robust construction

Output Current
8.0 A

Power Supply
External/Integrated (as per system)

Application
Industry automation, Motor control, Drives & machinery

Phase
Three Phase

Rated Current
8 A

Power Factor
>0.95

Operating Temperature
-10C to +50C

Output Type
Three Phase

Connector Type
Screw/plug terminal

Rated Power
3.7 kW

Noise Level
<60 dB

Product Type
PCB Inverter (Siemens PCB Inverter PCB 6SA8242-0AD74)

Output Power
3.7 kW

Output Frequency
0-400 Hz

Input Voltage
380-480V AC

Voltage Protection
Overvoltage, undervoltage protection integrated

Efficiency
98%

Material
High-grade PCB (epoxy coated), electronic components

Line Regulation
1%

Storage Temperature
-40C to +85C

Weight
Approx. 0.5 kg

Response Time
<10 ms

Humidity
Max. 95%, non-condensing

Control Method
PWM (Pulse Width Modulation)

Model Number
6SA8242-0AD74

Compatible Series
Siemens SINAMICS

Mounting Type
Panel/board mount

Input Frequency
50/60 Hz

Display
Status LED

Dimensions
Approx. 180mm x 120mm x 25mm

Cooling Requirement
External cooling required for high loads

Protection Class
IP20

Insulation Resistance
>10M at 500V DC

Communication Interface
Analog/Digital I/O, RS485 (on controller side)

Service Life
>100,000 hours

About SIEMENS PCB INVERIER PCB 6SA8242-0AD74

Experience premier performance with the SIEMENS INVERTER PCB 6SA8242-0AD74an extraordinary solution for advanced industry automation and motor control. This unmatchable panel/board mount PCB is designed for durability, boasting over 100,000 hours service life and unparalleled efficiency at 98%. Protect your investment with integrated voltage safeguards and high-quality epoxy coating. With customizable analog/digital I/O and advanced connectivity, youll be able to procure seamless control, optimize processes, and redeem exceptional operational reliability in demanding environments. Perfectly compatible with Siemens SINAMICS, its engineered for uncompromising results.

Competitive Advantages & Areas of Application

The SIEMENS INVERTER PCB 6SA8242-0AD74 stands out with high efficiency, compact form, and robust Siemens reliability, delivering unmatchable performance in industry automation, motor drives, and complex machinery. Its panel/board mount versatility and extraordinary control mechanism via PWM ensure premier precision in automation processes. Suitable for demanding industrial conditions, its application method is straightforwardsimply integrate into your system and optimize external cooling for high-load uses, ensuring consistent and superior operation over time.

Sample Availability, Certification & Reliable Supply

SIEMENS PCB INVERTER PCB 6SA8242-0AD74 samples are available for evaluation to support your procurement decisions. It meets recognized certification standards, ensuring safety and reliability in line with industry norms. Our logistics team ensures smooth transport services, minimizing expenditure and guaranteeing timely delivery. Strong supply ability means bulk orders are efficiently managed, providing you with an uninterrupted supply chain solution that supports your operational needs and industry timelines.

FAQs of SIEMENS PCB INVERIER PCB 6SA8242-0AD74:

Q: How does the SIEMENS INVERTER PCB 6SA8242-0AD74 ensure efficiency and reliability in industrial applications?

A: The PCB delivers a 98% efficiency rate and incorporates overvoltage/undervoltage protection, robust construction, and a service life of over 100,000 hours, making it exceptionally reliable for continuous industrial use.

Q: What areas of application are ideal for this Siemens inverter PCB?

A: This product excels in industry automation, motor control, drives, and advanced industrial machinery, particularly where precision, reliability, and efficiency are paramount.

Q: When should external cooling be added to the SIEMENS 6SA8242-0AD74?

A: External cooling is recommended for high-load or continuous operation environments to maintain optimal performance and extend the PCBs service life.

Q: How can samples of the SIEMENS PCB INVERTER PCB 6SA8242-0AD74 be procured?

A: Samples can be requested through official Siemens suppliers or authorized traders, who will arrange logistics and ensure secure, prompt transport to your location.

Q: What is the process for integrating the inverter PCB into industrial systems?

A: Integration involves panel/board mounting, connection via screw/plug terminals, and configuration through analog/digital I/O or RS485 communication for seamless operation within SINAMICS-compatible setups.

Q: What are the logistical benefits of sourcing this PCB from a certified supplier?

A: Certified suppliers provide reliable transport services, streamlined procurement processes, and efficient handling of expenditure, ensuring timely delivery and consistent supply.
