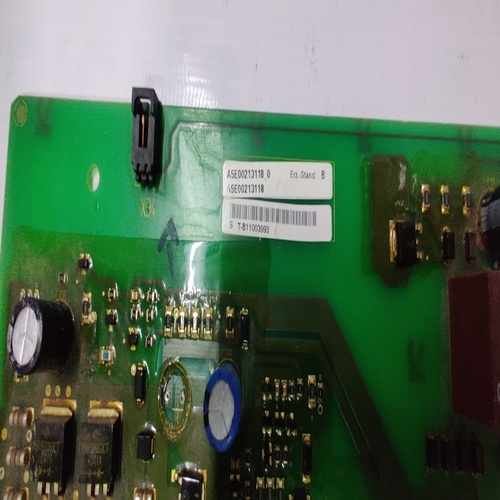

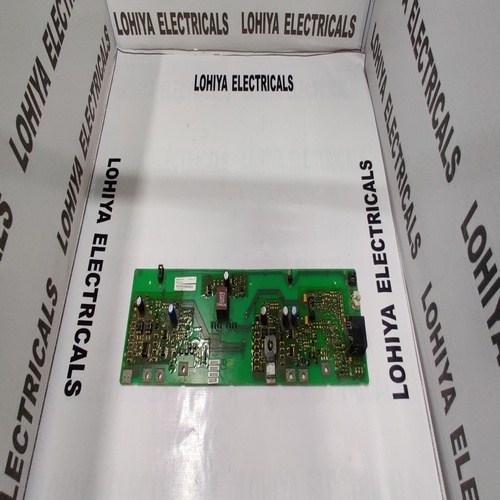

SIEMENS A5E00213118 INVERTER DRIVE TRIGGER BOARD

Get a Price/Quote

SIEMENS A5E00213118 INVERTER DRIVE TRIGGER BOARD Specification

Current Range
Up to 3A (gate trigger circuit)

Connector Type
Pin header and plug-in terminal blocks

Phase
Three-phase support

Features
Short circuit protection, high-speed switching, status LED indicators

Rated Current
As per gate driver specification

Output Current
Dependent on gate drive configuration, up to 3A

Operating Temperature
0C to 60C

Cooling Method
Passive

Noise Level
Low, <45 dB

Output Type
Signal output for gate triggering of IGBTs/MOSFETs

Working Temperature
0C to 60C

Power Supply
24V DC regulated

Application
Triggering and control in Siemens inverter and variable speed drive applications

Rated Power
As per drive system specification

Power Factor
High (dependent on inverter setup)

Product Type
Inverter Drive Trigger Board

Output Power
Depends on amplifier and connected motor, typically up to 3 kW

Output Frequency
Controllable via inverter, up to 400 Hz

Input Voltage
24V DC (typical for control boards)

Voltage Protection
Integrated over-voltage and under-voltage protection circuits

Efficiency
High (>95%)

Material
High-grade PCB, electronic components, insulated connectors

Line Regulation
Stable drive control within 1%

Storage Temperature
-25C to +85C

Weight
Approx. 250 grams

Control Interface
Compatible with Siemens inverter drive circuits

Firmware Version
Factory programmed

Compliance
RoHS compliant

Isolation Voltage
1500V AC

Service Life
Over 50,000 hours typical

Packaging
Antistatic bag

PCB Layer
Four-layer design for optimized signal integrity

Diagnostic Functions
On-board fault detection and LED indication

Model Number
A5E00213118

Mounting Type
PCB mounted with screw holes for secure fitting

About SIEMENS A5E00213118 INVERTER DRIVE TRIGGER BOARD

The SIEMENS A5E00213118 INVERTER DRIVE TRIGGER BOARD offers an exceptional solution for gate triggering in Siemens inverter drives. Featuring exquisite four-layer PCB design, the board ensures soaring signal integrity and reliability. With a high efficiency rating (>95%) and RoHS compliance, it stands out as a bargain for those seeking value and performance. Its markdown price allows users to redeem advanced features such as on-board diagnostics, voltage protection, and LED indication. Secure mounting via screw holes complements its robust build, making it ideal for various industrial control applications.

Exceptional Versatility and Strategic Application

The SIEMENS A5E00213118 INVERTER DRIVE TRIGGER BOARD is perfectly suited for both specific and general use cases, excelling in a variety of Siemens inverter and variable speed drive applications. It delivers competitive advantages through robust control, stable signal output, and enhanced protection features. The PCBs reliable design contributes to minimal noise and extended service life, ensuring it meets unique industrial needs while maintaining high performance.

Premium Export Reach and Reliable Domestic Supply

Dispatching this premier product across multiple international markets, the SIEMENS A5E00213118 board is available with steady supply ability. Export destinations include regions with soaring demand for high-grade inverter solutions. Domestic markets are equally well served, with prompt delivery and transparent estimate options. Whether for global or local procurement, traders across India can rely on consistent stock and premium quality standards.

FAQs of SIEMENS A5E00213118 INVERTER DRIVE TRIGGER BOARD:

Q: How do I securely mount the SIEMENS A5E00213118 trigger board?

A: The board is designed with screw holes for easy and secure PCB mounting, ensuring robust fitting in control cabinets or enclosures.

Q: What competitive advantages does this trigger board offer over standard alternatives?

A: It provides high efficiency, exceptional noise reduction, integrated voltage protection, and on-board diagnostic features with status LED indicators, making it superior for industrial applications.

Q: Where can I use the SIEMENS A5E00213118 INVERTER DRIVE TRIGGER BOARD?

A: This board is suitable for Siemens inverter drive circuits and variable speed drive systems, commonly found in manufacturing, process control, and automation sectors.

Q: When is the optimal time to consider upgrading to this trigger board?

A: You should consider upgrading when reliability, advanced diagnostics, and secure gate triggering are essential for enhancing your drive systems performance and dependability.

Q: What is the process for redeeming warranty or support for this product in India?

A: You can contact your supplier or trader with the model number and purchase details. Warranty claims and technical support will be processed promptly under Siemens guidelines.

Q: How does the boards on-board fault detection benefit my operations?

A: The built-in fault detection and LED indication functions allow early identification of issues, promoting swift troubleshooting and reducing potential downtime.
