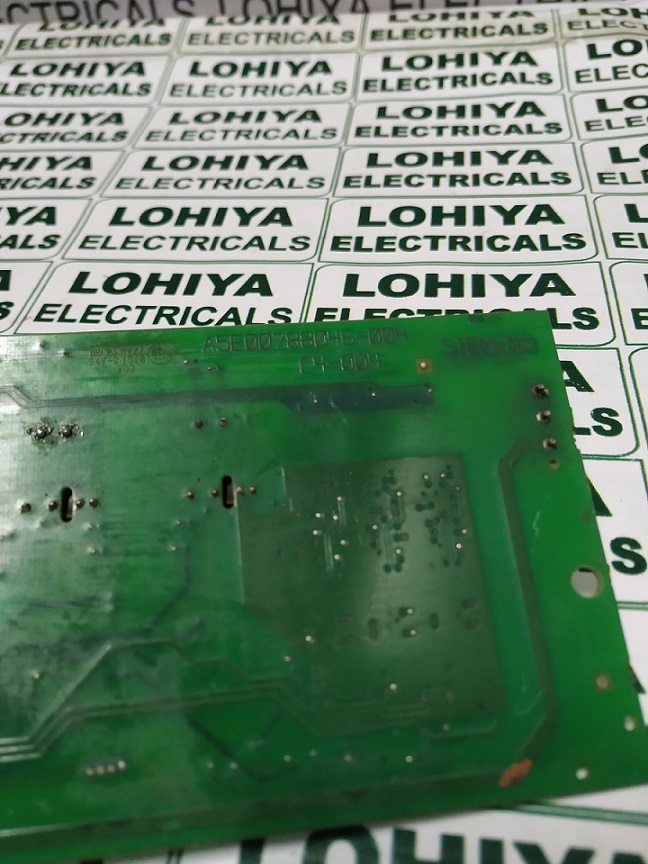

SIEMENS A5E00788046-004-C4-004 PCB Card

Get a Price/Quote

SIEMENS A5E00788046-004-C4-004 PCB Card Specification

Cooling System
Convection Air

Panel Type
PCB

Components
Capacitors, Resistors, ICs, Connectors, Relays

Rated Insulation Voltage
250V AC

Protection Level
IP20

Current Rating
2A

Protection Class
Class II

Control System
Siemens Compatible

Thickness
1.6 mm

Connectivity Type
Edge Connector, Pin Header, Terminal Block

Features
Precision Soldered, High Signal Integrity, Ready-to-mount

Rated Current
2A

Rated Operation Voltage
24V DC

Base Material
Epoxy Composite

Operating Voltage
24V DC

Way
4 Layer

Product Type
Control PCB Card

Material
Fiberglass Reinforced Epoxy (FR-4)

Surface Finish
HASL (Hot Air Solder Leveling)

Standard
IEC, RoHS Compliant

Surface Color
Green

Rated Voltage
24V DC

Frequency (MHz)
50/60 MHz

Maximum Output Current
2A

Dimension (L*W*H)
110mm x 70mm x 18mm

Application
Industrial Automation, Siemens PLC systems

IP Rating
IP20

Storage Temperature Range
-40C to +85C

Operating Temperature Range
0C to +60C

Signal Type
Digital/Analog

Mounting Type
Plug-In / Screw Mount

Revision
C4-004

Humidity Range
5% to 95% RH, Non-condensing

Compliance
CE, RoHS

Weight
Approx. 120g

Part Number
A5E00788046-004-C4-004

Number of Layers
4 Layers

Lifecycle Status
Active

About SIEMENS A5E00788046-004-C4-004 PCB Card

Find brilliance and reliability with the SIEMENS A5E00788046-004-C4-004 PCB Cardyour last chance to jump on a marvelously engineered solution for industrial automation and Siemens PLC systems. Boasting an incomparable 4-layer design, this ready-to-mount PCB features plug-in/screw mount, digital/analog signal support, and brilliant operating flexibility in environments from 0C to +60C. Its robust fiberglass reinforced epoxy construction ensures optimum performance, while CE and RoHS compliance guarantee operational safety. Enjoy precise signal integrity with a 24V DC rating and superior HASL surface finish. Secure yours with swift Indian supply!

Notable Features and Suitable Applications

This PCB card is packed with precision-soldered components, including capacitors, resistors, ICs, and relays for remarkable signal integrity and dependable operation. Suitable for use in various Siemens-compatible control systems, it excels in industrial automation and can be integrated into PLC panels and relay logic applications. The cards mounting flexibility, high frequency capability, and advanced cooling system make it fit for demanding scenarios where reliability and rigorous operational standards are vital.

Certifications, Supply Ability, and Delivery Time

Outlay on this marvelously compliant PCB card ensures CE and RoHS adherence for international safety and environmental standards. The SIEMENS A5E00788046-004-C4-004 is reliably supplied in India, with prompt dispatch and smooth transportation logistics, ensuring your project timelines are met efficiently. Suppliers and traders keep robust inventory to meet industrial scale demands, while streamlined delivery processes minimize wait times from order placement to product arrival.

FAQs of SIEMENS A5E00788046-004-C4-004 PCB Card:

Q: How does the SIEMENS A5E00788046-004-C4-004 PCB Card benefit industrial automation systems?

A: This PCB card ensures high signal integrity, reliable connectivity, and compatibility with Siemens PLC systems, enhancing control, precision, and long-term performance in industrial automation setups.

Q: What mounting options are available for this PCB card?

A: It offers plug-in and screw mount options, providing flexibility and secure installation in diverse panel configurations.

Q: Where can the SIEMENS A5E00788046-004-C4-004 be used besides automation panels?

A: Beyond Siemens PLC panels, its suitable for relay logic circuits, control cabinets, and various industrial machinery requiring robust, certified PCB solutions.

Q: What certifications does this PCB card carry and why are they important?

A: It is CE and RoHS compliant, signifying adherence to safety and environmental standards crucial for industrial deployments globally.

Q: How is the delivery process managed for suppliers in India?

A: Orders are dispatched efficiently with smooth transportation arrangements, ensuring timely delivery to meet the requirements of industrial clients.

Q: When should one consider replacing or upgrading to this PCB card?

A: Upgrade or replace when enhanced reliability, multi-layer signal integrity, and compliance are required for expanding or modernizing automation systems.
