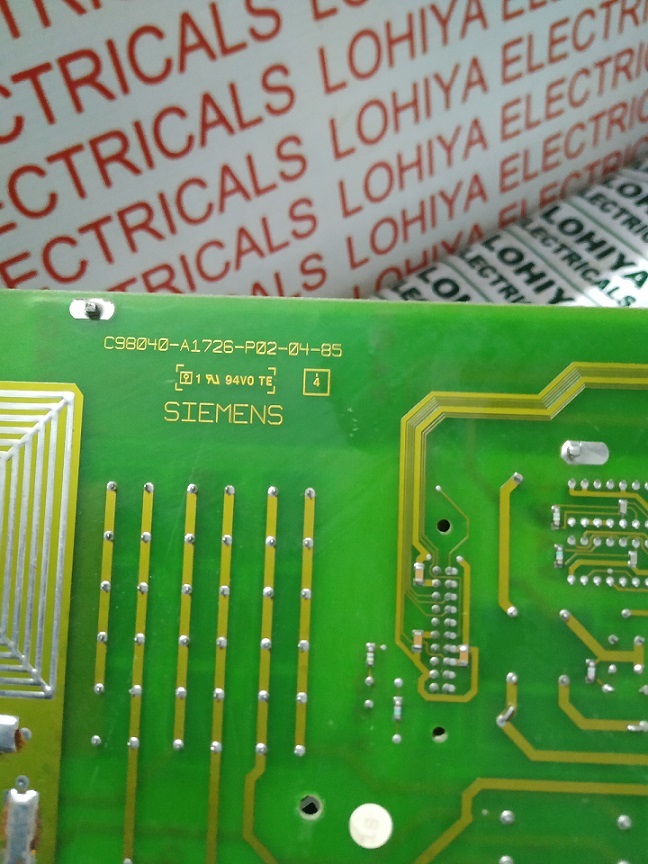

SIEMENS C98040-A1726-P02-04-85 PCB Card

Get a Price/Quote

SIEMENS C98040-A1726-P02-04-85 PCB Card Specification

Control System
SIPLUS/ SIMATIC Compatible

Cabinet Material
N/A (PCB Card only)

Thickness
1.6 mm

Rated Current
0.5 A

Base Material
FR4 Epoxy Resin

Components
SMT and THT Electronic Components Mounted

Cover Material
None (Open Card)

Panel Type
DIN Rail Mount PCB

Way
Multilayer

Features
High Reliability, Industrial Grade, RoHS Compliant

Rated Operation Voltage
24 V DC

Protection Level
IP20

Cooling System
Passive / Air Cooled

Operating Voltage
24 V DC

Connectivity Type
Edge Connector, Plug-In Terminal

Current Rating
0.5 A

Rated Insulation Voltage
500 V

Protection Class
Class I

Product Type
PCB Card / Control Board

Material
Fiberglass Epoxy (FR4)

Surface Finish
HASL (Hot Air Solder Leveling)

Standard
SIEMENS Industrial Automation Standard

Surface Color
Green

Rated Voltage
24 V DC

Frequency (MHz)
50/60 Hz compatible

Maximum Output Current
400 mA

Dimension (L*W*H)
200 mm x 100 mm x 15 mm

Application
Industrial Automation, SIEMENS Drives

IP Rating
IP20

Humidity Range
5% to 95% RH (non-condensing)

Storage Temperature
-40°C to +85°C

Mounting Type
Plug-In / Slot Mount

Operating Temperature
0°C to +60°C

Part Number
C98040-A1726-P02-04-85

Number of Layers
4

Manufacturing Technology
Wave Soldered & Automated Assembly

Weight
Approx. 150 g

SIEMENS C98040-A1726-P02-04-85 PCB Card About

Find the top-rated SIEMENS C98040-A1726-P02-04-85 PCB Card, renowned for its rarefied engineering and commanding presence in industrial automation. Enjoy marvelous reliability at the best price from a leading supplier in India. With wave-soldered, automated assembly and a durable fiberglass epoxy (FR4) build, this 4-layer, DIN rail mount PCB card is optimized for seamless performance in SIPLUS/SIMATIC systems. Rated for 24V DC and 0.5A, it offers trustworthy operation under rigorous industrial standards, with a robust IP20 protection and RoHS compliance for ultimate confidence.

Extra Features and Usage Potential

The SIEMENS C98040-A1726-P02-04-85 PCB Card stands out for its high reliability, industrial-grade construction, and commanding multilayer design. Engineered for heavy-duty applications, it integrates both SMT and THT electronic components, offering versatility for SIPLUS/SIMATIC compatible control systems. Particularly apt for use in industrial automation and Siemens Drives, its passive cooling and plug-in design ensure rarefied ease in installation and operation, making it ideal for continuous, demanding environments.

Main Domestic Market and Certifications

Delivered across India with prompt shipped goods, this PCB card carries essential certifications like RoHS compliance and conforms to SIEMENS industrial automation standards. Samples are available to support your evaluation process at a competitive list price. Each unit is delivered ensuring thorough quality checks, supporting businesses looking for reliable automation solutions. Its notable credentials, excellent distribution, and transparent pricing render it a commanding choice for the Indian domestic market.

FAQs of SIEMENS C98040-A1726-P02-04-85 PCB Card:

Q: How is the SIEMENS C98040-A1726-P02-04-85 PCB Card used in industrial automation?

A: This PCB Card is primarily used for reliable signal control and system integration within SIPLUS/SIMATIC compatible industrial automation setups, supporting Siemens Drives for efficient and robust operations.

Q: What are the main benefits of choosing this SIEMENS PCB card?

A: The product offers high reliability, long operational life, industrial-grade standards, RoHS compliance, a multilayer structure for stability, and compatibility with modern control systems, making it a marvelous choice for demanding applications.

Q: Where can the SIEMENS C98040-A1726-P02-04-85 PCB Card be installed?

A: It is designed for plug-in or slot mounting on DIN rails within control panels or automation cabinets, offering versatility in new projects or system upgrades.

Q: What certifications does this PCB card hold and why are they important?

A: It is RoHS compliant and built to SIEMENS industrial automation standards, ensuring quality, safety, and environmental responsibility for end users.

Q: How is the shipping and delivery process managed for this product in India?

A: Goods are shipped efficiently across India, with sample availability to aid pre-purchase evaluation. Each unit is delivered after meticulous quality checks, guaranteeing customer satisfaction.
