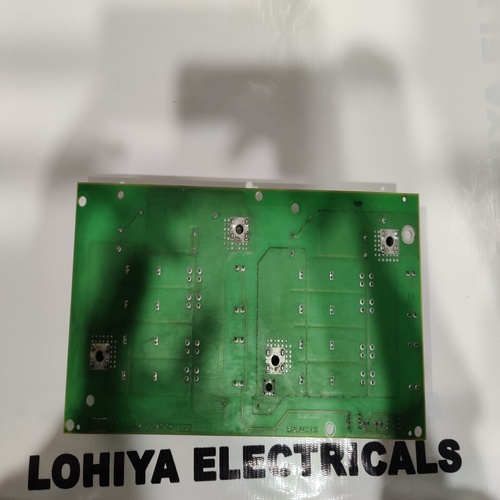

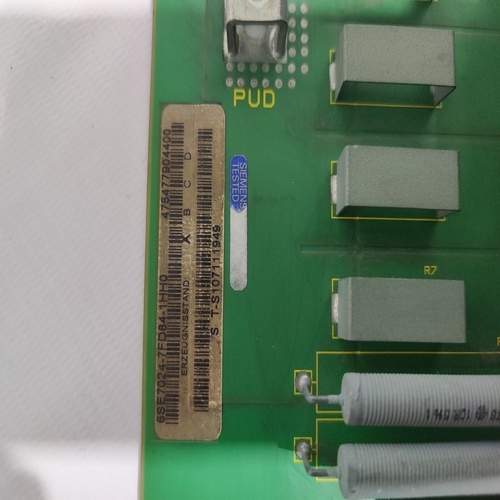

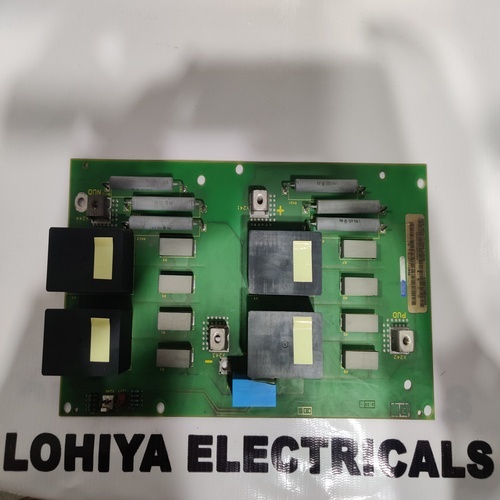

SIEMENS 6SE7024-7FD84-1HH0 INVERTER CHARGING BOARD RELAY

Send Inquiry

Request To Call Back

SIEMENS 6SE7024-7FD84-1HH0 INVERTER CHARGING BOARD RELAY

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 6SE7024-7FD84-1HH0 INVERTER CHARGING BOARD RELAY Specification

Cooling System
Passive, no active cooling required

Rated Operation Voltage
AC 230V / DC 24V

Rated Current
3A (Relay)

Features
OEM replacement; Siemens genuine part; charge relay function for inverter

Connectivity Type
Screw terminal / pin header connectors

Thickness
Approx. 1.6 mm PCB

Cabinet Material
NA (open board)

Rated Insulation Voltage
250V AC

Protection Class
Class I (when installed in system)

Base Material
FR4 Epoxy Glass

Way
Single Way Relay

Control System
Relay-based logic circuits

Components
Relay, resistors, capacitors, connectors, diodes

Protection Level
Conformal Coated for moderate protection

Current Rating
3A

Operating Voltage
24V DC / 230V AC

Cover Material
None / NA (Open PCB type)

Product Type
Inverter Charging Board Relay

Material
High-grade PCB with electronic and electromechanical components

Surface Finish
Solder mask finish

Standard
Siemens Industry Standard

Surface Color
Green PCB with white marking

Rated Voltage
DC 24V / AC 230V (relay contact)

Frequency (MHz)
50/60 Hz (inverter frequency support)

Maximum Output Current
Up to 3A (relay load rating)

Dimension (L*W*H)
Approximately 140mm x 70mm x 30mm

Application
For Siemens 6SE7024 Series Inverter Charging Circuits

IP Rating
NA (Suitable for controlled electrical enclosure)

Compatible Drives
SINAMICS S and SIMOVERT MASTERDRIVE VC/MC 6SE7024-7FD84-1HH0

Mounting Type
PCB Mount; screw mounting slots available

Board Weight
Approx. 120g

Environmental Compliance
RoHS Compliant

Response Time
<10 ms

Life Expectancy
100,000 cycles mechanical (Relay)

Storage Temperature
-25°C to +70°C

Relay Type
Electromechanical

Operating Temperature Range
0°C to +60°C

About SIEMENS 6SE7024-7FD84-1HH0 INVERTER CHARGING BOARD RELAY

Unlock outstanding operational reliability with the SIEMENS 6SE7024-7FD84-1HH0 INVERTER CHARGING BOARD RELAY, now available at a reduced price with competitive pricing. Renowned for its opulent design, this board is a sought-after component featuring electromechanical relay technology and majestic compatibility with SINAMICS S and SIMOVERT MASTERDRIVE VC/MC drives. Featuring robust PCB mounting and screw slots, this relay offers swift response times (<10 ms), advanced RoHS compliance, and unparalleled durability up to 100,000 cycles. Enhance your automation system with Siemens industry-standard excellencea genuine, OEM replacement tailored for high-demand plant environments.

Versatile Uses and Industrial Applications

The SIEMENS 6SE7024-7FD84-1HH0 INVERTER CHARGING BOARD RELAY is specifically used for inverter charging circuits in SINAMICS S and SIMOVERT MASTERDRIVE VC/MC drives. It finds applications in power plants, manufacturing floors, and automation infrastructure where reliable energy conversion is essential. Ideal for controlled environments, it is best suited for enclosure-mounted site installations in process plants and manufacturing sitesdelivering consistent performance in demanding locations.

Market Value & Delivery Expertise

Recognized for prominent market value, this SIEMENS relay is sought-after in both domestic and international markets. Main export markets include regions with strong industrial automation demand. Products are handed over swiftly, with express shipping options ensuring prompt delivery. In India, its primary domestic market, reliable supply chains guarantee timely access. Choose this premium relay for assured performance and rapid distribution wherever needed.

FAQs of SIEMENS 6SE7024-7FD84-1HH0 INVERTER CHARGING BOARD RELAY:

Q: How does the SIEMENS 6SE7024-7FD84-1HH0 improve inverter charging processes?

A: This relay enhances inverter charging circuits by ensuring swift, reliable switching with a response time of less than 10 ms, safeguarding components and maintaining optimal plant performance.

Q: What are the main installation requirements for this charging board relay?

A: Installation is straightforward with both PCB mount and screw mounting slots available, suitable for controlled enclosures in industrial applications.

Q: Where can the SIEMENS 6SE7024-7FD84-1HH0 be used?

A: It is ideal for power plants, manufacturing sites, and automation setups utilizing SINAMICS S or SIMOVERT MASTERDRIVE VC/MC drives.

Q: How soon can I expect delivery after placing an order?

A: With express shipping available, products are typically handed over to logistics partners promptly, ensuring rapid delivery for both domestic and export markets.

Q: What is the life expectancy and benefit of using this relay?

A: The relay offers a mechanical life expectancy of up to 100,000 cycles, ensuring long-term durability and reliable operational continuity in demanding industrial environments.
