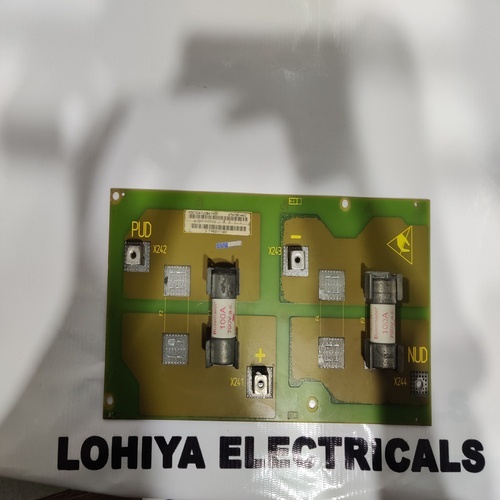

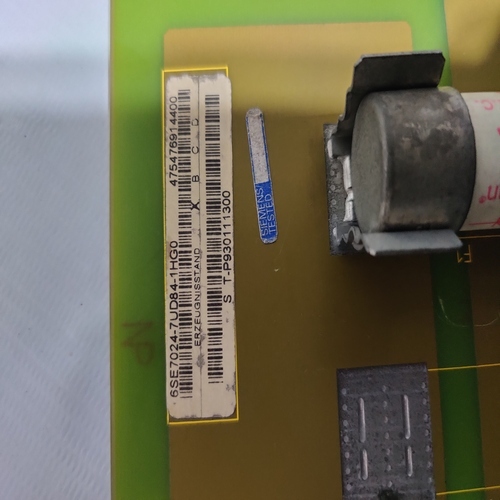

SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD

Send Inquiry

Request To Call Back

SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD Specification

Control System
PLC controlled, digital control

Protection Class
Class I

Current Rating
40A

Protection Level
Conformal coated PCB

Features
Heavy-duty, reliable performance, Siemens design

Cabinet Material
Not included (board only)

Connectivity Type
Terminal blocks, plug-in connectors

Rated Current
40A

Base Material
Epoxy Glass Fibre

Panel Type
Printed Circuit Assembly

Components
Microcontroller, IGBTs, capacitors, resistors, connectors

Cover Material
None (open board)

Rated Operation Voltage
3-phase: 380-480V AC

Cooling System
Fan or heatsink (external required)

Thickness
Standard PCB thickness ~1.6 mm

Rated Insulation Voltage
Over 500V

Operating Voltage
380-480V AC

Product Type
Inverter Board

Material
Industrial-grade PCB, electronic components

Surface Finish
Matte solder mask

Standard
Siemens quality standards, IEC

Surface Color
Green with white print

Rated Voltage
380-480V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
40A

Dimension (L*W*H)
Approx. 300mm x 200mm x 30mm

Application
Industrial inverter drive, motor control

IP Rating
IP00

Display Type
LED/LCD (external interface)

Operating Temperature Range
0°C to 50°C

Storage Temperature Range
-20°C to 70°C

Safety Features
Overload, short-circuit protection integrated

Typical Application
Automation systems, drive technology

Humidity
Max. 95% non-condensing

Control Inputs
Digital and analog interface supported

Power Output Type
Three-phase output

Model Number
6SE7024-7UD84-1HG0

Maintenance
Low maintenance board

Compatibility
SIMOVERT Master Drives series

Serviceability
Field-replaceable module design

Mounting Type
Screw or bracket mount

About SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD

Redeem the illustrious capabilities of the SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD, crafted for radiant performance in demanding automation settings. With limited stock available, this astonishing board offers reliable, personalisable solutions for motor control and drive technology. Mount with ease using screw or bracket options, and benefit from integrated overload and short-circuit protection. Experience low-maintenance operation and field-replaceable modules. Compatible with SIMOVERT Master Drives, this green matte-finished, industrial-grade board meets the highest Siemens and IEC standardsdelivering premium efficiency in every application.

Versatile Application Areas & User Profiles

The SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD is tailored for automation systems and industrial inverter drives. Commonly used for motor control, it finds application in industries deploying SIMOVERT Master Drives. Technicians, engineers, and industrial managers rely on its reliability for process automation. Designed for installation in environments with 0C to 50C operation, it supports both digital and analog input, making it vital equipment for varied industrial users seeking precise and efficient drive management.

Sample Policy, Export Market & Payment Terms

We offer a premium sample policy for the SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD upon purchase order confirmation, ensuring client satisfaction before significant expenditure. Our main export markets include India and other industrial regions needing top-tier drive components. Payment terms are flexible, facilitating transactions through multiple modes to simplify procurement. Dealers and traders can expect transparent, customer-focused service throughout the order process to support their business needs abundantly.

FAQs of SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD:

Q: How is the SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD typically mounted in automation systems?

A: The inverter board can be securely mounted using screws or brackets, making installation versatile and suitable for various equipment setups in industrial environments.

Q: What primary applications does this inverter board serve?

A: It is primarily used in industrial inverter drives and motor control, optimized for automation systems requiring robust and reliable power management.

Q: When should the SIEMENS inverter board be replaced or serviced?

A: Service or replacement is recommended during scheduled maintenance cycles or when the board exhibits signs of reduced performance, leveraging its field-replaceable modular design for minimal downtime.

Q: Where is the SIEMENS 6SE7024-7UD84-1HG0 INVERTER BOARD most commonly utilized?

A: It is widely installed in facilities using SIMOVERT Master Drives, including manufacturing plants, drive technology workshops, and automation control units.

Q: What safety features are integrated in this inverter board?

A: This board includes built-in protections against overload and short-circuit conditions, ensuring safe and continuous operation in rigorous industrial environments.

Q: How does personalisation benefit users of the SIEMENS inverter board?

A: Personalising digital and analog control inputs enables users to optimise the inverters performance for specific application requirements, increasing efficiency and user satisfaction.
