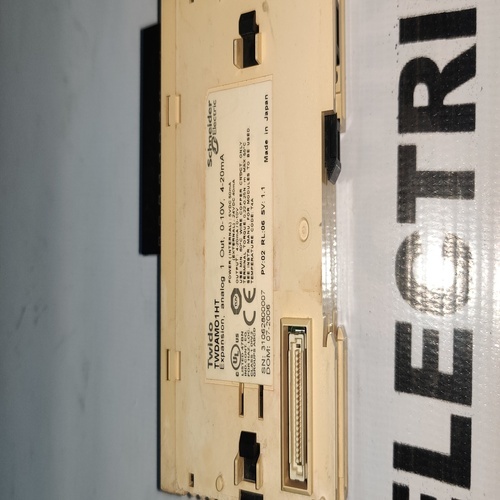

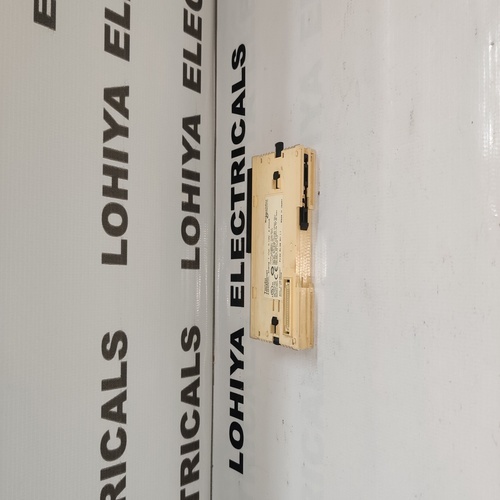

SCHNEIDER ELECTRIC TWDAMO1HT TWIDO ANALOG INPUT MODULE

Send Inquiry

Request To Call Back

SCHNEIDER ELECTRIC TWDAMO1HT TWIDO ANALOG INPUT MODULE

Get a Price/Quote

SCHNEIDER ELECTRIC TWDAMO1HT TWIDO ANALOG INPUT MODULE Specification

Cover Material
Polycarbonate

Panel Type
Module Mount

Rated Current
0.5 A

Base Material
Polycarbonate

Components
Analog Input Ports

Control System
TWIDO PLC System

Current Rating
0.5 A

Connectivity Type
Screw Terminal

Thickness
35 mm

Features
Hot-swappable, Compact Size, Wide Range of Input

Way
2 Channel

Rated Operation Voltage
24 V DC

Rated Insulation Voltage
500 V

Protection Class
Class II

Operating Voltage
24 V DC

Protection Level
IP20

Cooling System
Natural Cooling

Product Type
Analog Input Module

Material
Plastic and Electronic Components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24 V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
0.5 A

Dimension (L*W*H)
70 x 23 x 83 mm

Application
PLC Automation

IP Rating
IP20

Display Type
LED Status Indicator

Conversion Type
12-bit Resolution

Type of Analog Signal
Voltage: 0-10 V, Current: 0-20 mA

Response Time
30 ms

Storage Temperature
-25C to +70C

Vibration Resistance
2 g (10 500 Hz)

Mounting Type
DIN Rail

Relative Humidity
10% to 95% (non-condensing)

Operating Temperature
0C to +55C

Power Consumption
3 W

Number of Analog Inputs
2

About SCHNEIDER ELECTRIC TWDAMO1HT TWIDO ANALOG INPUT MODULE

Spotlight your automation setup with the SCHNEIDER ELECTRIC TWDAMO1HT TWIDO Analog Input Module, an elite component renowned for its cost-effective performance in PLC systems. Featuring prodigious precision with a 12-bit conversion type, this imposing module offers two versatile analog inputs accommodating voltage (0-10 V) or current (0-20 mA). The lustrous matte-finished, grey polycarbonate casing ensures robust performance and IP20 protection. Optimized for DIN rail mounting, the TWDAMO1HT stands out with its hot-swappable design, natural cooling, and compact profile, making it an ideal choice for modern industrial environments.

Versatile Applications and Seamless Integration

The SCHNEIDER ELECTRIC TWDAMO1HT TWIDO Analog Input Module is expertly designed for PLC automation across myriad sectors. Its compact form factor fits effortlessly on module-mounted application surfaces, specifically tailored for panel and industrial automation cabinets. Perfect for manufacturing floors, process plants, and utility operations, it excels in high-performance environments requiring precise analog signal monitoring and control. This modules rugged construction and wide operational range make it exemplary for diverse application places where reliability is non-negotiable.

International Supply, Swift Dispatch & Transparent Policies

SCHNEIDER ELECTRIC TWDAMO1HT TWIDO Analog Input Module caters to prodigious export markets across the globe, with prominent supply ability from leading traders and suppliers in India. Customers can request a quotation for the asking price, ensuring clear and straightforward transactions. Samples are dispatched based on an accommodating sample policy, tailored to support both bulk buyers and smaller industrial clients. Efficient logistics ensure that modules reach international destinations promptly, empowering businesses with time-sensitive demands.

FAQs of SCHNEIDER ELECTRIC TWDAMO1HT TWIDO ANALOG INPUT MODULE:

Q: How does the TWDAMO1HT module benefit PLC automation systems?

A: The TWDAMO1HT enhances PLC automation by providing precise analog input handling with 12-bit resolution, wide input signal compatibility (0-10 V, 0-20 mA), and fast response, resulting in accurate monitoring and process control.

Q: What is the process for installing this analog input module?

A: Simply mount the module onto a DIN rail in your control panel, connect your analog signals via the screw terminal ports, and integrate it with your TWIDO PLC system. The hot-swappable feature allows easy maintenance or replacement.

Q: Where can this module be effectively used?

A: It is ideal for use in industrial automation panels, manufacturing plants, process control cabinets, and utility systems where precise analog signal acquisition is required.

Q: What are the key usage features of the TWDAMO1HT?

A: Key features include dual-channel analog inputs, a compact design for space-saving installation, natural cooling, LED status indicators, and robust vibration resistance, making it suitable for demanding environments.

Q: How can I order or request a quotation for this module?

A: You may contact authorized suppliers or traders in India for a quotation. Prices are provided based on current supply and volume requirements, and orders are processed efficiently for timely dispatch.

Q: What standards and protection does this module offer?

A: The module conforms to IEC 61131-2, provides IP20 protection, and is built to withstand challenging operating and storage conditions, ensuring durability and safety.
