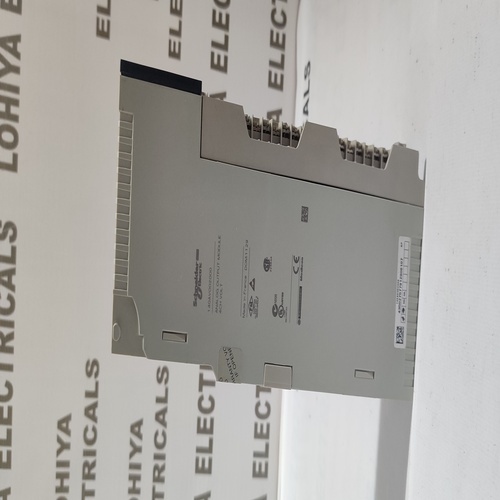

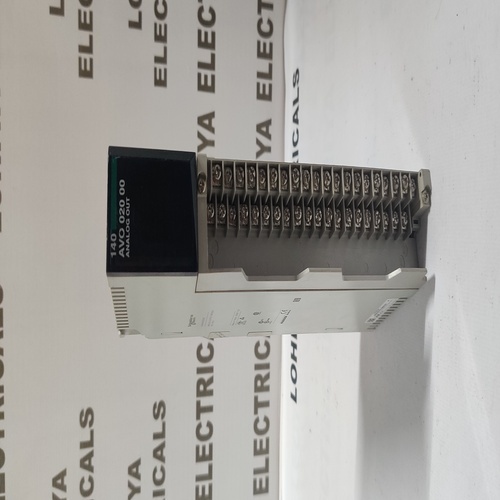

SCHNEIDER ELECTRIC 140AVO02000 ANALOG OUT MODULE

Send Inquiry

Request To Call Back

SCHNEIDER ELECTRIC 140AVO02000 ANALOG OUT MODULE

Get a Price/Quote

MOQ : 100 Pieces

SCHNEIDER ELECTRIC 140AVO02000 ANALOG OUT MODULE Specification

Way
2 Channels

Base Material
Polycarbonate/ABS

Thickness
Approx. 40 mm

Components
2 Analog Output Channels, LED Indicators

Cover Material
Polycarbonate

Control System
Modicon Quantum Automation Platform

Features
Galvanic Isolation, Short-circuit Protection, Detachable Terminal

Protection Class
Class I

Connectivity Type
Removable 16-point Terminal Block

Rated Insulation Voltage
250V (rms)

Operating Voltage
18 to 30V DC

Panel Type
DIN Rail Mountable

Rated Operation Voltage
24V DC (input)

Rated Current
0-20mA analog, 0-10V analog

Cooling System
Natural Air Cooling

Current Rating
0 to 20mA (Current Output)

Cabinet Material
Polycarbonate

Protection Level
Conformal Coated, Overvoltage Protection

Product Type
Analog Output Module

Material
Industrial Grade Components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24V DC/120V AC

Frequency (MHz)
DC to 60 Hz analog output

Maximum Output Current
0.5A/channel

Dimension (L*W*H)
98 x 32.5 x 183 mm

Application
PLC I/O Expansion, Process Automation, Industrial Control

IP Rating
IP20

Display Type
LED Status Indicators

Output Ranges
020 mA, 420 mA, 010 V, +/-10 V programmable

Power Consumption
4.1W (typical)

Isolation
Channel-to-bus 1780V for 1 minute

Storage Temperature
-40C to 85C

Accuracy
0.1% of full scale

Operating Temperature
0C to 60C

Mounting Type
DIN Rail and Panel Mount

Resolution
12 Bits

Response Time
< 3 ms

Load Resistance
<500 (current output), 2 k (voltage output)

Module Type
Quantum Series, Analog Output

Hot Swap Support
Yes

Relative Humidity
5% to 95% non-condensing

About SCHNEIDER ELECTRIC 140AVO02000 ANALOG OUT MODULE

Find the SCHNEIDER ELECTRIC 140AVO02000 Analog Out Modulean imposing solution for modern automation needs. This top-tier Quantum Series module offers perfect adaptability with programmable output ranges: 020 mA, 420 mA, 010 V, and +/-10 V. Marvelous 12-bit resolution and 0.1% accuracy ensure superior performance. Enjoy robust channel-to-bus isolation, hot-swap support, and rapid response times under 3 ms. Its protective, industrial-grade matte polycarbonate housing meets IEC 61131-2 standards and is ideal for PLC I/O expansion, process automation, and industrial control environments.

Remarkable Features & Key Benefits

The 140AVO02000 module boasts galvanic isolation, overvoltage and short-circuit protection, LED indicators, and flexible connectivity with a detachable terminal block. Used by system integrators and automation professionals, it stands out due to its excellent precision, durability, and compatibility with the Modicon Quantum platform. Primary competitive advantages include hot swap functionality, strong insulation, and quick response. This robust unit is perfect for mission-critical applications requiring maximum reliability and straightforward maintenance.

Sample Policy and Swift Delivery Assurance

Customers can request a sample of the SCHNEIDER ELECTRIC 140AVO02000 Analog Out Module, subject to availability and company terms. Upon order completion, each unit is carefully packed and promptly dispatched, with shipment typically occurring within standard industry lead times. All modules are certified to meet IEC 61131-2 standards, ensuring reliability and safety throughout the shipping and installation process, so clients receive their products swiftly and fully compliant for immediate use.

FAQs of SCHNEIDER ELECTRIC 140AVO02000 ANALOG OUT MODULE:

Q: How is the SCHNEIDER ELECTRIC 140AVO02000 module installed within an automation system?

A: The module supports both DIN rail and panel mounting, offering flexible installation options to fit various industrial cabinet setups. Its detachable terminal block streamlines wiring and maintenance.

Q: What are the primary usage scenarios for the 140AVO02000 Analog Out Module?

A: This module is ideal for PLC I/O expansion, process automation, and industrial control applications. It integrates seamlessly with the Modicon Quantum Automation Platform, making it suitable for complex control systems.

Q: How does the overvoltage protection benefit operational safety?

A: Integrated overvoltage protection safeguards both the module and connected devices from electrical surges, enhancing system longevity and minimizing downtime due to unexpected electrical events.

Q: When can customers expect shipment after placing an order?

A: After order completion, the product is dispatched promptly, typically within standard lead times. The shipment is tracked to ensure timely delivery and customer satisfaction.

Q: What certifications does this module hold for industrial use?

A: The 140AVO02000 module is certified according to IEC 61131-2 standards, ensuring compliance with international safety and performance requirements for industrial automation equipment.
