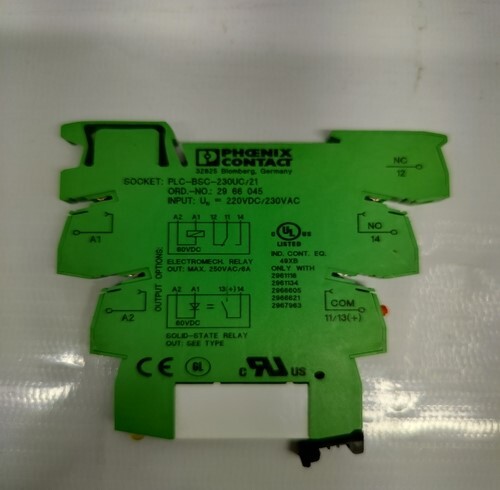

PHOENIX CONTECT PLC-BSC-230UC/21 SOLID-STATE RELAY

Send Inquiry

Request To Call Back

PHOENIX CONTECT PLC-BSC-230UC/21 SOLID-STATE RELAY

Get a Price/Quote

MOQ : 1 Piece

PHOENIX CONTECT PLC-BSC-230UC/21 SOLID-STATE RELAY Specification

Cooling Method
Passive cooling

Rated Current
2 A

Application
Industrial automation, PLC interfacing, switching loads

Features
Wear-free switching, optical isolation, plug-in design, status LED

Connector Type
Screw connection

Operating Temperature
-20 C to +60 C

Phase
Single Phase

Current Range
0.02 A to 2 A

Power Supply
230 V AC/DC control voltage

Noise Level
Silent operation (no mechanical contact)

Output Current
2 A AC continuous

Output Type
1 x NO contact

Working Temperature
-20 C to +60 C

Product Type
Solid-State Relay

Output Power
2 A

Output Frequency
50/60 Hz

Input Voltage
230 V AC/DC

Voltage Protection
Integrated varistor

Efficiency
High switching frequency and long service life

Material
Plastic housing

Storage Temperature
-40 C to +85 C

Weight
Approx. 71.2 g

Surge Voltage
4 kV (between input/output)

Status Indication
Yellow LED

Mounting Type
DIN rail (NS 35/7.5, NS 35/15)

Input Current (at rated voltage)
4 mA

Depth
80 mm

Height
94 mm

Insulation Voltage
4 kV

Switching Voltage Range
12 V AC to 250 V AC

Control Voltage Range
230 V AC/DC (195 V AC to 253 V AC/DC)

Width
6.2 mm

Switching Element
Triac

Standards
IEC 60947-5-1, EN 60947-5-1

About PHOENIX CONTECT PLC-BSC-230UC/21 SOLID-STATE RELAY

The PHOENIX CONTACT PLC-BSC-230UC/21 SOLID-STATE RELAY is a best-seller, now available at a reduced price! This splendid relay offers unmatched performance for industrial automation, PLC interfacing, or switching loads. Its excellent features include a slim 6.2 mm DIN rail-mountable design, silent operation, wear-free switching, and high switching frequency. With an unprecedented 4 kV surge and insulation voltage, optical isolation, and integrated varistor voltage protection, it ensures safe and reliable operation. Promotion running-experience superior quality, long service life, and hassle-free installation. Secure your supply and maximize efficiency today!

Innovative Features & Versatile Usage

The PHOENIX CONTACT PLC-BSC-230UC/21 is equipped with extra features such as a plug-in design, screw connection, status LED, and passive cooling mechanism. Delivering silent operation with its solid-state, triac-based switching element, this relay excels across industrial automation, power distribution, and PLC interfacing environments. Its wear-free optical isolation makes it ideal for both continuous duty and demanding cyclic applications, accommodating a broad current range from 0.02 A to 2 A for varied usage needs.

Supply Ability & Sample Policy

We ensure excellent supply ability for the PHOENIX CONTACT PLC-BSC-230UC/21. Place your purchase order and benefit from fast shipment at a competitive sale price. To facilitate confident buying decisions, we offer a straightforward sample policy, and samples are available upon request. Our streamlined ordering and delivery process is designed to support bulk requirements as well as pilot projects, guaranteeing you receive authentic products and reliable customer service every time.

FAQ's of PHOENIX CONTECT PLC-BSC-230UC/21 SOLID-STATE RELAY:

Q: How is the PHOENIX CONTACT PLC-BSC-230UC/21 relay used in industrial automation?

A: This relay is typically used for efficient switching of AC loads, PLC interfacing, and automation equipment, offering wear-free operation and high electrical isolation for demanding environments.

Q: What extra features does the PHOENIX CONTACT solid-state relay offer?

A: Notable features include optical isolation, a plug-in design, yellow status LED, wear-free triac switching element, integrated varistor for voltage protection, silent operation, and a slim DIN rail mountable housing.

Q: When should I consider using a solid-state relay instead of an electromechanical relay?

A: Choose solid-state relays like this model when you need silent operation, faster response times, longer service life, and zero maintenance for high-frequency switching or sensitive automation systems.

Q: Where can I source samples of the PHOENIX CONTACT PLC-BSC-230UC/21 relay?

A: Samples are available in India through authorized suppliers and traders. Simply submit a sample request or purchase order to initiate the shipment process.

Q: What is the supply and shipment process for large orders of this relay?

A: After submitting your purchase order, shipments are processed promptly to ensure timely delivery. Bulk sale pricing is available and we maintain a strong supply ability to support frequent high-volume orders.

Q: How does the integrated varistor and optical isolation benefit relay operation?

A: The integrated varistor protects against voltage spikes, while optical isolation enhances user and equipment safety by electrically separating the control and output circuits, ensuring reliable and stable relay operation.
