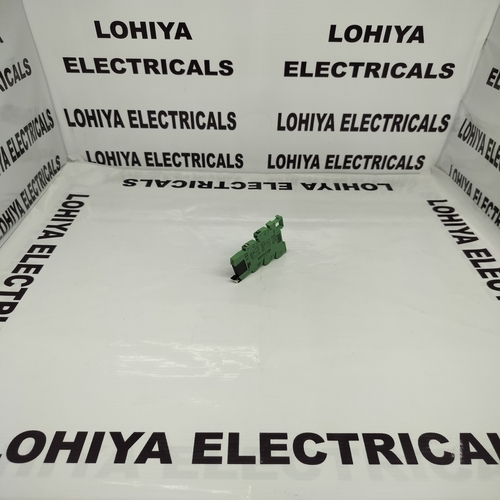

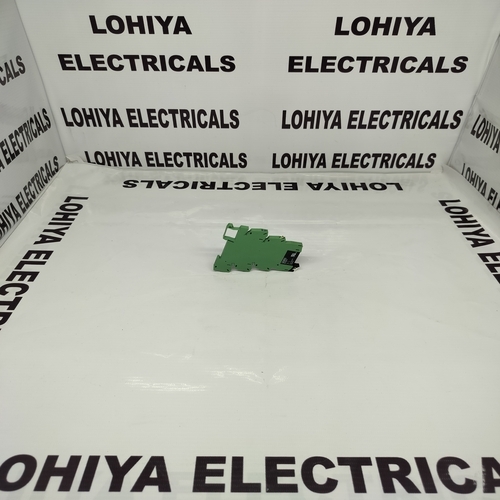

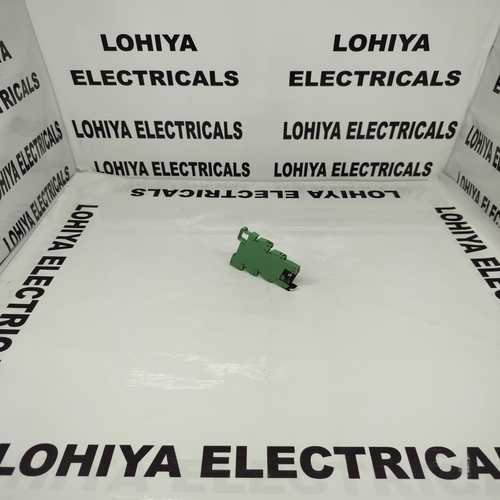

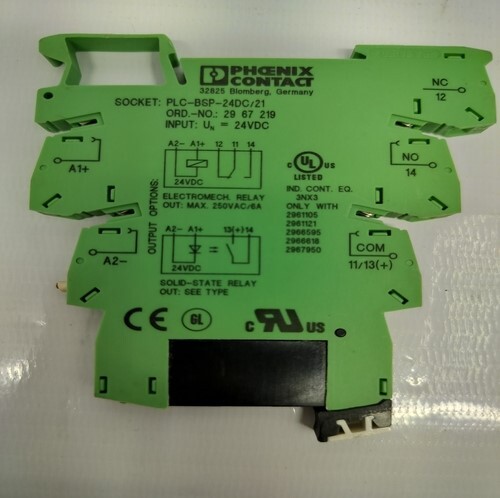

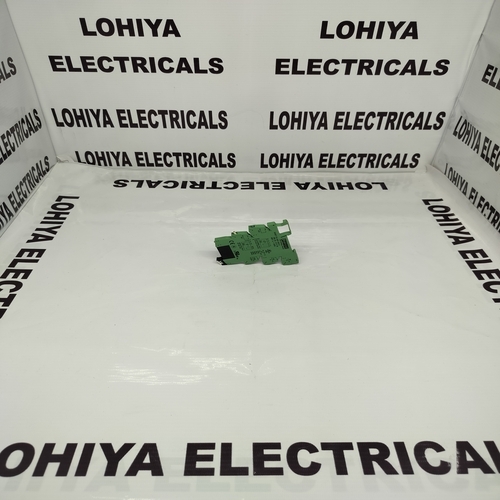

PHOENIX CONTECT PLC-BSP-24DC/21 RELAY BASE

Get a Price/Quote

MOQ : 1 Piece

PHOENIX CONTECT PLC-BSP-24DC/21 RELAY BASE Specification

Connector Type
Screw terminal connectors

Working Temperature
-40C to +60C

Output Type
Relay Contact (suitable for PLC relays)

Rated Current
6 A (max. per channel, with appropriate relay)

Application
For industrial automation, PLC interface, signal switching, and relay socket mounting

Output Current
Up to 6 A (with suitable relay)

Operating Temperature
-40C to +60C

Current Range
Max. 6 A (via relay contacts)

Power Supply
24 V DC relay coil supply

Features
Jumper-compatible, test socket, protective circuit, LED indication, DIN rail mounting

Cooling Method
Natural convection

Product Type
Relay Base

Input Voltage
24 V DC

Voltage Protection
Yes (with integrated protection circuit for relay coils)

Material
Plastic, Polyamide (PA)

Storage Temperature
-40C to +85C

Weight
Approx. 20 g (without relay)

Protection Features
Integrated diode and LED status indicator for coil

Accessories
Plug-in relay, retaining clip, partition plate (optional)

Relay Compatibility
Interface relays from Phoenix Contact PLC series

Number of Channels
1

Model Number
PLC-BSP-24DC/21

Color
Grey

Insulation Voltage
250 V AC/DC

Polarity Protection
Yes

Connection Capacity
0.2 mm2 to 2.5 mm2 (solid/stranded)

Mounting Type
DIN rail (NS 35/7.5, NS 35/15)

About PHOENIX CONTECT PLC-BSP-24DC/21 RELAY BASE

Seize the clearance opportunity and utilise this exclusive offer on the lofty PHOENIX CONTACT PLC-BSP-24DC/21 Relay Base, a preeminent solution designed for enlightened industrial automation needs. In demand for its robust engineering, this DIN rail-mounted base supports Phoenix Contact interface relays and offers stellar protection features including integrated diode, polarity safeguard, and LED status indicator. With a connection capacity supporting 0.2 mm to 2.5 mm wiring, it ensures versatility. Crafted from premium polyamide, it suits rigorous environments elevating both PLC interface switching and your control systems reliability.

Key Advantages and Industrial Applications

The PHOENIX CONTACT PLC-BSP-24DC/21 Relay Base emerges as a competitive, specialised solution designed for seamless integration with interface relays. Its advantage lies in robust protection features like integrated LEDs and polarity safeguards, making it ideal for industrial automation, PLC interfacing, and relay socket use. Efficient usage is reinforced with easy DIN rail mounting, jumper compatibility, and screw terminals, ensuring quick installation and reliable signal switching under varying operational conditions.

Markets and Certifications: Ready for Delivery

Stock ready for prompt dispatch in India, the PLC-BSP-24DC/21 Relay Base is available at a sale price for both domestic and main export markets. It is suited to a wide range of customers, including suppliers and traders, reflecting its global demand. Recognised for electrical safety with relevant certifications, customers benefit from fast delivery and assured quality. This relay base is a smart choice for robust and compliant electrical network solutions.

FAQs of PHOENIX CONTECT PLC-BSP-24DC/21 RELAY BASE:

Q: How does the PHOENIX CONTACT PLC-BSP-24DC/21 Relay Base benefit industrial automation systems?

A: The relay base simplifies signal switching and remote relay mounting, while integrated protective circuits and LED indication boost operational reliability and safeguard connected components.

Q: What is the process for mounting the PLC-BSP-24DC/21 Relay Base?

A: Mounting is straightforward via DIN rail (NS 35/7.5, NS 35/15). The screw terminal connectors and jumper compatibility facilitate quick, secure installation without specialised tools.

Q: When is it recommended to use the integrated protective features?

A: The diode, LED status, and polarity protection features should be used whenever consistent relay operation, coil protection, and visual status indication are required, especially in environments prone to voltage fluctuations.

Q: Where can this relay base be applied most effectively?

A: It is optimally used in industrial automation setups, PLC interface applications, and anywhere reliable signal switching and relay socket mounting are critical demands.

Q: What are the compatible relay and accessory options available for this base?

A: This relay base supports Phoenix Contact PLC series interface relays and is compatible with plug-in relays, retaining clips, and optional partition plates, offering installation flexibility.
