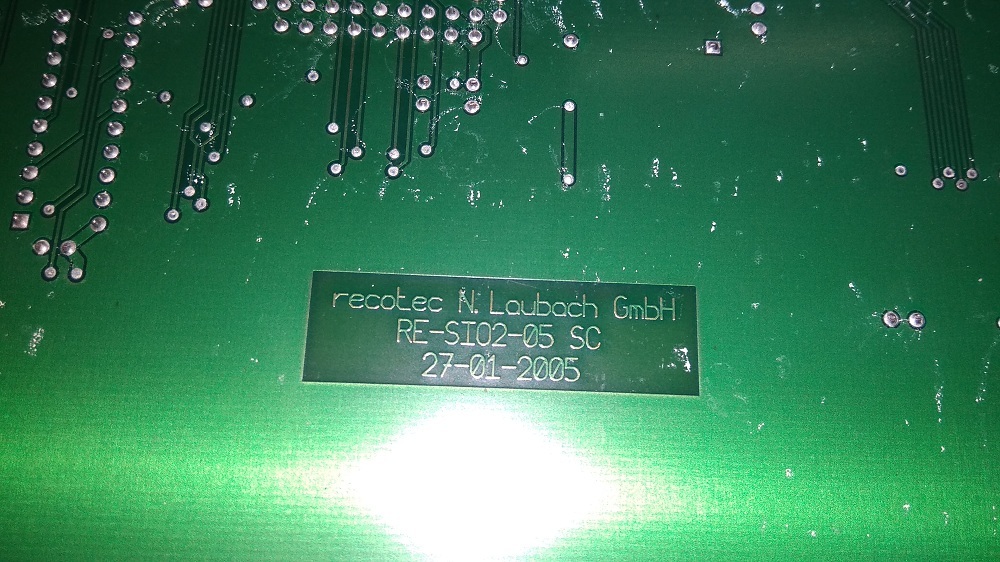

PCB CARD RE-SI02-05 SC

Get a Price/Quote

PCB CARD RE-SI02-05 SC Specification

Operating Voltage
250V

Connectivity Type
Edge Connector

Control System
Manual Soldering/Assembly

Rated Operation Voltage
250V AC/DC

Cooling System
Passive

Features
High Insulation, Flame Retardant, High Durability

Rated Insulation Voltage
500V

Panel Type
Rigid

Current Rating
5A

Rated Current
5A

Base Material
FR4 Epoxy Resin

Way
Single-Sided

Components
Solder Pad, Edge Connector

Protection Level
IP20

Protection Class
Class II

Thickness
1.6 mm

Product Type
PCB Card

Material
Fiberglass Epoxy (FR4)

Surface Finish
HAL (Hot Air Leveling)

Standard
IPC-A-600 Class 2

Surface Color
Green

Rated Voltage
250V

Frequency (MHz)
50 - 60

Maximum Output Current
5A

Dimension (L*W*H)
120 mm x 100 mm x 1.6 mm

Application
Electronic Circuit Integration, Industrial Automation

IP Rating
IP20

Copper Thickness
35 µm

Trace Width
0.2 mm

Min. Hole Size
0.3 mm

Test Method
Flying Probe/E-Test

Storage Humidity
<60% RH

Operating Temperature Range
-20°C to +85°C

Solder Mask Type
Epoxy Ink

Flame Retardance
UL94-V0

Layers
1 Layer

Mounting Type
PCB Mount

PCB CARD RE-SI02-05 SC Trade Information

Payment Terms
Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)

Supply Ability

Delivery Time
1 Week

Main Export Market(s)
Western Europe, Australia, North America, South America, Eastern Europe, Middle East, Central America, Africa, Asia

Main Domestic Market
All India

About PCB CARD RE-SI02-05 SC

The PCB CARD RE-SI02-05 SC embodies elite engineering for electronic circuit integration and industrial automation. With its rarefied composition of high-grade FR4 epoxy resin and a soaring single-sided copper layer of 35 m, this PCB guarantees high insulation, outstanding durability, and flame-retardant performance. Designed to deliver a glorious performance under temperatures from -20C to +85C, it accommodates a 250V operation and a robust 5A current rating. The instant checkout experience ensures a cost-effective solution for professionals seeking reliable, UL94-V0 compliant, and rigorous IPC-A-600 Class 2 certified boards. Perfect for demanding control systems and rapid assembly environments.

Versatile Applications and Usage

Applied with manual soldering or assembly, the PCB CARD RE-SI02-05 SC excels in integrating control systems within industrial automation and electronic circuit design. This elite product is frequently used as a high-reliability foundation for edge connectors and solder pads, providing a rarefied solution for engineers. Other applications extend to supporting passive cooling subsystems or serving as a robust connector platform for various industrial electronic projects.

Payment Terms and Certifications

We offer flexible payment terms and quick dispatch for orders of the PCB CARD RE-SI02-05 SC, making the transaction cost-effective and seamless. Samples are available upon request, allowing evaluation prior to bulk purchase. Each card comes with UL94-V0 flame-retardance certification and complies with IPC-A-600 Class 2 standards, ensuring only the most glorious and reliably tested products reach your facility at a reasonable asking price.

FAQs of PCB CARD RE-SI02-05 SC:

Q: How do I mount and connect the PCB CARD RE-SI02-05 SC in my system?

A: The PCB CARD RE-SI02-05 SC utilizes PCB mount technology and features edge connectors, making it easy to integrate through manual soldering or assembly for seamless electrical connectivity.

Q: What are the primary applications for this PCB card?

A: It is ideal for integration in industrial automation control systems, electronic circuit assemblies, and as a base for edge connectors or solder pad configurations in high-insulation environments.

Q: When can I expect dispatch after placing an order?

A: We ensure quick dispatch upon confirmation of payment. For most orders, processing and shipping are expedited to deliver the product efficiently to your location.

Q: Where does this PCB meet compliance or safety standards?

A: The PCB CARD RE-SI02-05 SC proudly adheres to UL94-V0 flame retardant standards and meets the IPC-A-600 Class 2 certification for quality and reliability.

Q: What is the main benefit of choosing this cost-effective PCB?

A: Its cost-effectiveness arises from durable FR4 materials, superior insulation properties, and compliance with elite international standards, providing long-term reliability at a competitive price.
