OMRON R7D-AP08H SERVO DRIVE

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OMRON R7D-AP08H SERVO DRIVE Specification

Rated Operation Voltage
230V AC

Thickness
Standard

Connectivity Type
RS-232C, USB (optional)

Current Rating
8A

Way
Single

Rated Current
8A

Cover Material
ABS Plastic

Components
Power Supply, Control Circuit, Interface Terminals

Operating Voltage
200-230V AC

Panel Type
DIN Rail Mount

Base Material
High Strength Alloy

Control System
PWM (Pulse Width Modulation)

Rated Insulation Voltage
300V AC

Cabinet Material
Alloy and ABS Plastic

Cooling System
Natural Air Cooled

Protection Class
Class I

Protection Level
IP20

Features
Compact Design, High Performance, Overload Protection

Product Type
Servo Drive

Material
Industrial Grade Components

Surface Finish
Matte

Standard
IEC/EN 61800-5-1

Surface Color
Black and Grey

Rated Voltage
200-230V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
8A

Dimension (L*W*H)
Approx. 180mm x 70mm x 170mm

Application
Industrial Automation

IP Rating
IP20

Display Type
7-Segment LED

Input Phase
Single Phase or Three Phase

Mounting Method
Panel / DIN Rail

Ambient Operating Temperature
0C to 55C

Weight
Approx. 1.6 kg

Response Frequency
Up to 500 Hz

Regenerative Processing
Built-in Regeneration Resistor

Motor Compatibility
Omron R88M Series Servo Motors

Storage Temperature
-20C to 65C

Relative Humidity
10% to 90% (non-condensing)

LED Status Indicators
Available

OMRON R7D-AP08H SERVO DRIVE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T)

Supply Ability
1 Piece Per Day

Delivery Time
3 Days

Sample Available
Yes

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About OMRON R7D-AP08H SERVO DRIVE

OMRON R7D-AP08H SERVO DRIVE Supplier In Bhavnagar, Gujarat, India

Lohiya Electricals deals in all types of Industrial Automation Products and We are dealing in all of India.

Model No:- R7D-AP08H

Product Name:- OMRON R7D-AP08H SERVO DRIVE

Brand:- OMRON

Condition:- USED CONDITION

OMRON R7D-AP08H SERVO DRIVE in stock.

Note:- Custom/Duty and charges will be paid by the buyer (if any)

MORE INFORMATION ABOUT THIS PRODUCT

Description:-
OMRON
R7D-AP08H
SERVO DRIVE

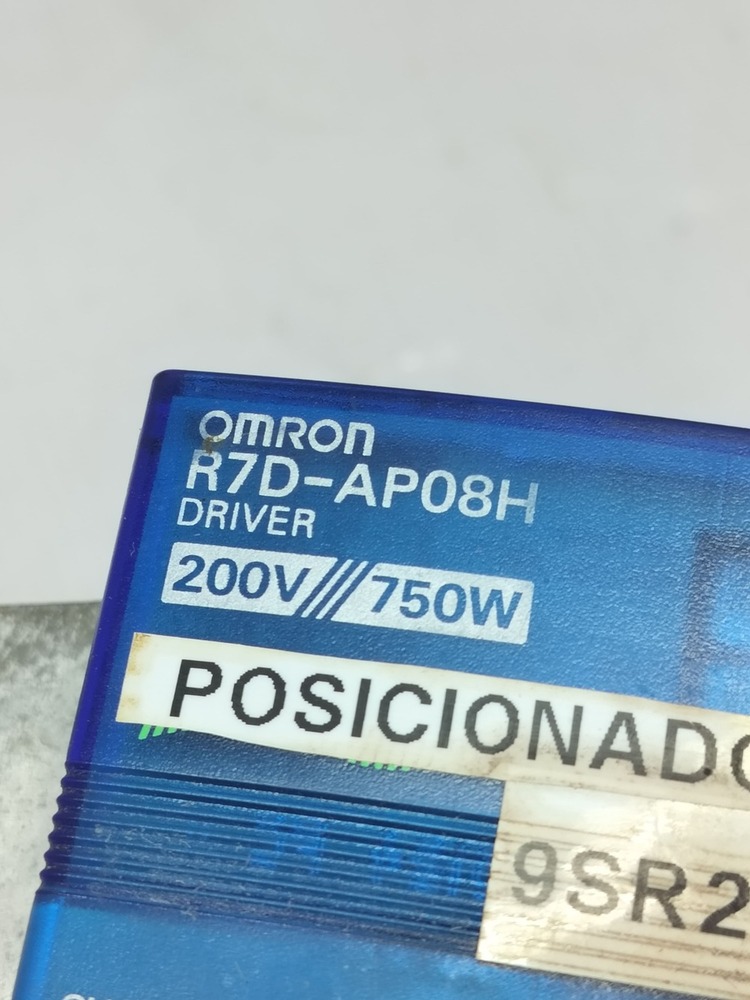

PLEASE CHECK LABEL PHOTO FOR MORE INFORMATION

UPLOADED BY:- HAFIZ SUMRA

Versatile Mounting and Easy Installation

The OMRON R7D-AP08H offers flexibility by supporting both panel and DIN rail mounting options, allowing for seamless integration into various control cabinets. Its compact design saves valuable space and simplifies installation for machine builders and automation professionals.

High Compatibility and Performance

Engineered to operate with Omron R88M Series Servo Motors, this servo drive boasts a fast response frequency of up to 500 Hz and robust overload protection. The built-in regenerative resistor enhances energy efficiency, making it ideal for demanding industrial applications.

FAQ's of OMRON R7D-AP08H SERVO DRIVE:

Q: How is the OMRON R7D-AP08H servo drive typically mounted in industrial panels?

A: This servo drive supports both DIN rail and panel mounting, making it easy to adapt to different installation environments within industrial automation cabinets.

Q: What motor types are compatible with the R7D-AP08H, and how do I connect them?

A: The R7D-AP08H is specifically designed for use with Omron R88M Series Servo Motors. Connection is established through clearly marked interface terminals available on the drive.

Q: When should I use built-in regeneration processing in my application?

A: The built-in regeneration resistor automatically manages excess energy during rapid motor deceleration, ensuring stable operation and prolonging the lifespan of both the drive and connected equipment.

Q: Where can the OMRON R7D-AP08H be used considering its protection and environmental ratings?

A: With an IP20 rating and a wide ambient temperature range (0C to 55C), the drive is suitable for most indoor industrial automation environments, provided it is protected from direct dust and moisture exposure.

Q: What benefits does the 7-segment LED display provide for users?

A: The integrated 7-segment LED display offers immediate visual feedback on operating status and error diagnostics, enabling users to monitor and troubleshoot the drive easily.

Q: How does overload protection work in the R7D-AP08H servo drive?

A: The servo drive is equipped with overload protection circuitry that monitors current levels, automatically limiting output and preventing damage during unexpected load surges.

Q: What connectivity options are available for control and monitoring?

A: For communication and control, the drive features RS-232C connectivity as standard, with optional USB interfaces, streamlining integration into various automation systems.
