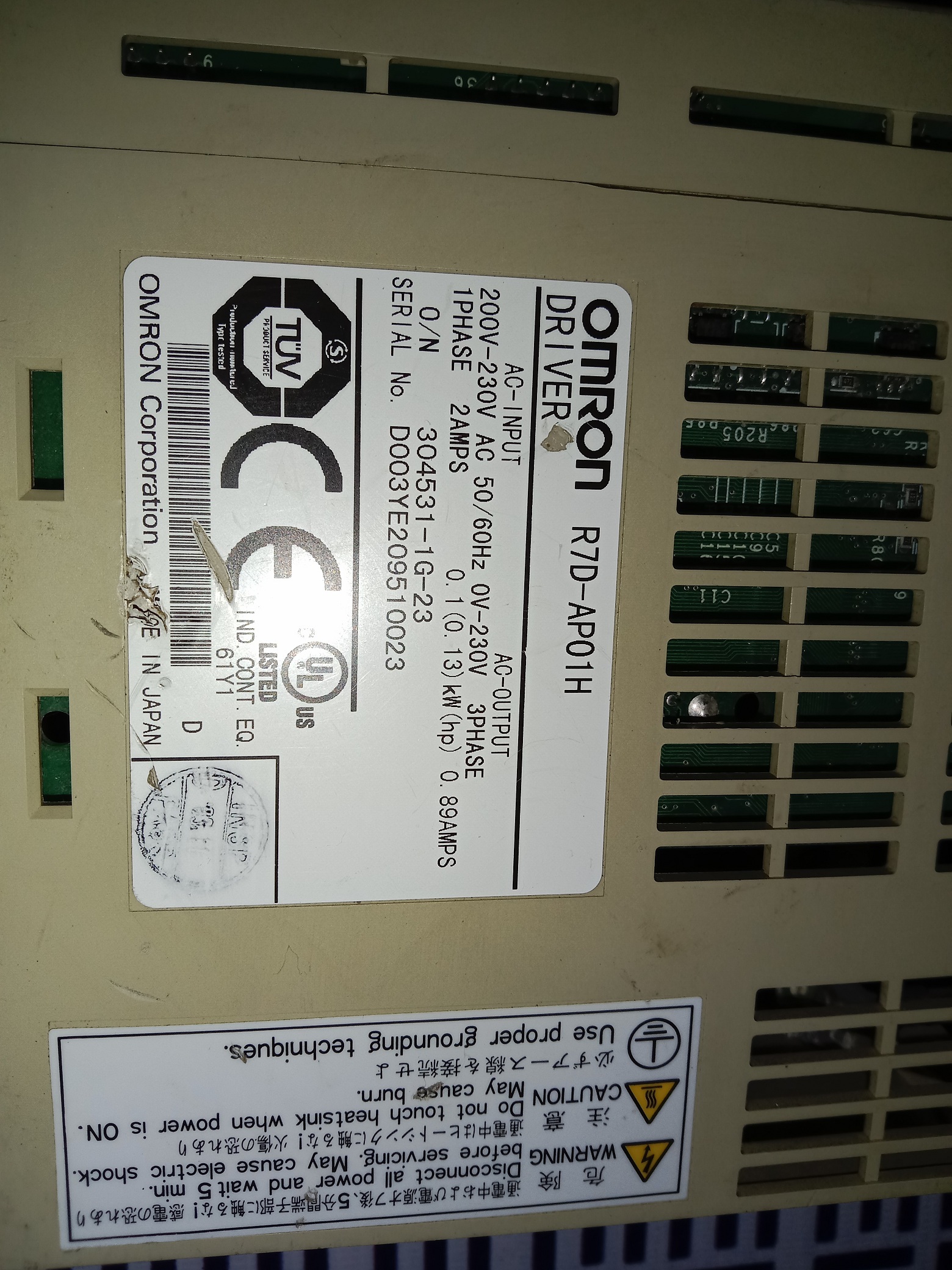

OMRON Servo Drive R7D-AP01H

Get a Price/Quote

OMRON Servo Drive R7D-AP01H Specification

Components
Servo amplifier circuitry

Cabinet Material
Plastic & metal frame

Thickness
Standard

Panel Type
Mountable panel type

Current Rating
1A

Rated Operation Voltage
200-230V AC

Way
Single Phase

Base Material
High-grade plastic with metal panel

Cooling System
Natural air cooling

Protection Class
Class I

Rated Current
1A

Features
Compact size, Reliable performance, Overload protection

Rated Insulation Voltage
Over 230V AC

Connectivity Type
Screw terminal, CN1/CN2 ports

Operating Voltage
200-230V AC

Cover Material
Plastic

Protection Level
IP20

Control System
Position, Speed & Torque control

Product Type
Servo Drive

Material
Industrial-grade components

Surface Finish
Matte

Standard
IEC/EN

Surface Color
Black

Rated Voltage
200-230V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
1A

Dimension (L*W*H)
123mm x 72mm x 45mm

Application
For controlling servo motors in automation and CNC applications

IP Rating
IP20

Display Type
Status LED

Encoder Interface
Incremental encoder support

Compliance
CE, RoHS

Digital Inputs
6 programmable inputs

Control Method
PWM control, Vector control

Series
OMRON Mechatrolink-II AC Servo

Installation Method
Panel Mount

Digital Outputs
3 outputs

Model Number
R7D-AP01H

Vibration Resistance
5.9 m/s² (10 to 55 Hz)

Input Voltage Range
200 - 230V AC ±10%

Output Power
100W

Humidity
90% Maximum (No condensation)

Regeneration Circuit
Built-in

Safety Functions
Overvoltage, Overcurrent, Overheat and Short circuit protection

Ambient Temperature
0°C to +55°C

Weight
Approx. 380g

About OMRON Servo Drive R7D-AP01H

The OMRON Servo Drive R7D-AP01H from the venerable Mechatrolink-II AC Servo series is a trending choice for modern automation and CNC needs. This compact yet powerful unit boasts an unbeatable input voltage range of 200-230V AC 10%, offering 100W output and reliable 1A rated current. Utilise the offer for this praiseworthy drive that features built-in regeneration, advanced PWM and vector control methods, six programmable digital inputs, and comprehensive protective functions. Highly recommended for machinists and system integrators seeking CE and RoHS compliance with practical panel mounting, robust IP20 protection, and exceptional vibration resistance. Perfect for industrial solutions across India.

Key Features, Commercial Uses & Application Areas

OMRONs R7D-AP01H Servo Drive features a built-in regeneration circuit, versatile PWM and vector control methods, and is constructed from industrial-grade components. Praiseworthy for its compact panel-mount design, this model ensures reliable, accurate performance in demanding automation and CNC setups. Its application extends to manufacturing lines, robotics, and precision equipment, making it ideal for sectors requiring dynamic, robust servo control solutions. The status LED and strong safety protections reinforce its value in commercial and industrial environments.

Export Market, Supply Ability & Packaging Information

We rate the OMRON R7D-AP01H as an export-ready drive, frequently supplied to global markets, including Asia, Europe, and North America. Our supply ability accommodates both small and bulk purchase orders efficiently. The offer includes robust packaging using standard export cartons that ensure safe transit. For any rate inquiry, supply timeline, or purchase order, our responsive team readily assists. This product remains in constant demand, making its acquisition a wise and strategic business decision.

FAQs of OMRON Servo Drive R7D-AP01H:

Q: How can the OMRON R7D-AP01H Servo Drive be utilised in industrial automation projects?

A: The OMRON R7D-AP01H serves as a compact and powerful servo amplifier, ideal for controlling servo motors in automation and CNC machinery, ensuring precise position, speed, and torque management.

Q: What makes the R7D-AP01H a highly recommended choice for automation systems?

A: With its built-in regeneration circuit, versatile control methods, multiple programmable inputs, and extensive protection features, the R7D-AP01H offers unmatched reliability, longevity, and flexibility for demanding automation setups.

Q: When should purchasers consider the R7D-AP01H over other servo drives?

A: Purchasers should select the R7D-AP01H when needing a compact, adaptable servo solution with CE and RoHS certification, robust safety features, and unbeatable performance for tasks requiring high precision in a humid or high-vibration environment.

Q: Where is the best place to install the OMRON R7D-AP01H?

A: This servo drive is best panel-mounted within control cabinets situated in industrial environments, protected from direct moisture, and within recommended temperature and humidity limits (0C to +55C, up to 90% non-condensing).

Q: What are the main benefits of its built-in safety functions?

A: The integrated overvoltage, overcurrent, overheat, and short circuit protections ensure operational safety, reduce unscheduled downtime, and help protect connected servo motors and machinery components throughout their use.
