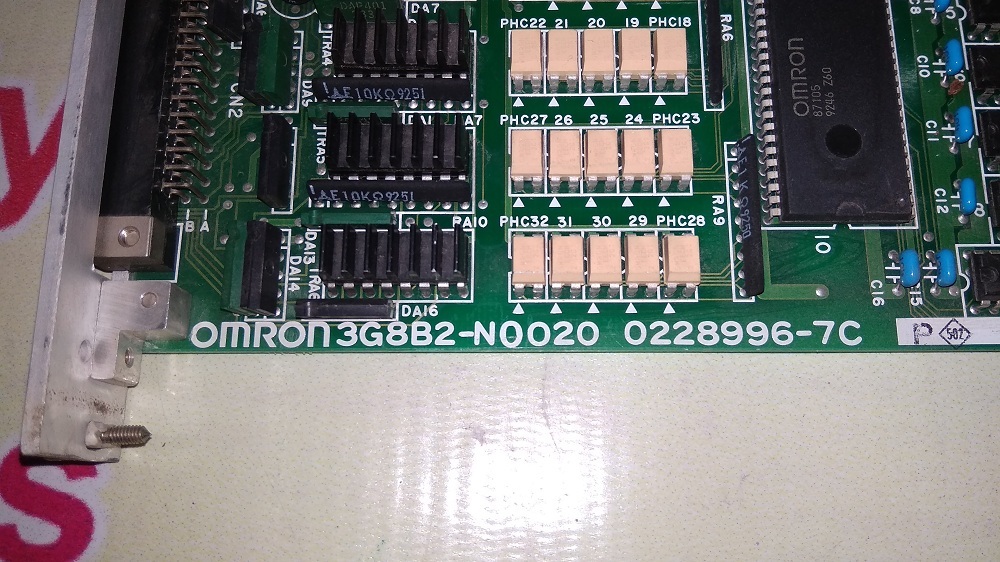

OMRON PCB CARD 3G8B2-N0020

Get a Price/Quote

OMRON PCB CARD 3G8B2-N0020 Specification

Protection Level
IP20

Base Material
FR-4

Panel Type
PCB Mounted

Features
High Reliability, Easy Installation, Durable

Cover Material
None/Open Frame

Cabinet Material
Not Applicable (PCB Board)

Thickness
1.6 mm

Connectivity Type
Screw Terminal Block

Current Rating
2A

Cooling System
Natural Air Cooled

Components
High-Grade Components Soldered on Board

Way
Single Side

Rated Current
2A

Control System
Relay/PLC Interface Compatible

Protection Class
Class II

Operating Voltage
24V DC

Rated Operation Voltage
24V DC

Rated Insulation Voltage
250V AC

Product Type
PCB Control Card

Material
High-quality Fiberglass Epoxy (FR4)

Surface Finish
Smooth/Glossy

Standard
OMRON Original Standard

Surface Color
Green

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
2A

Dimension (L*W*H)
Approx. 120mm x 80mm x 15mm

Application
Industrial Control, Automation, Machine Boards

IP Rating
IP20

Operating Temperature Range
0°C to 55°C

Storage Temperature Range
-20°C to 70°C

Resistance to Vibration
10 to 55 Hz, 0.75 mm amplitude

Resistance to Shock
300 m/s²

RoHS Compliance
Yes

Mounting Type
PCB Mount

Model Number
3G8B2-N0020

Remark
For industrial automation and machine applications only

OMRON PCB CARD 3G8B2-N0020 Trade Information

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T), Cash in Advance (CID)

Supply Ability

Delivery Time
1 Week

Main Export Market(s)
Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Central America

Main Domestic Market
All India

OMRON PCB CARD 3G8B2-N0020 About

Access masterful efficiency in industrial automation with the OMRON PCB CARD 3G8B2-N0020. This top-rated board boasts a noble FR4 fiberglass epoxy foundation, ensuring durability and high performance even under ephemeral yet demanding conditions. Ace engineered for PCB mounting, it smoothly operates within 0C to 55C and resists both shock (up to 300 m/s) and vibration. Designed for trustworthy relay or PLC interfacing, it provides reliable 24V DC operation at a maximum of 2A. RoHS compliance and easy installation guarantee a future-ready solution for machine control. Excellence is assured with OMRONs original standard and glossy finish.

Versatile Industrial Application and Usage

The OMRON PCB CARD 3G8B2-N0020 is expertly used as a control system interface for automation equipment and machine boards. Its versatile green epoxy surface is engineered for industrial control panels and automation circuits. Leveraging high-grade soldered components, its suited for relay/PLC interface media across a range of automation and machinery environments. This card meets the rigorous demands of modern industrial operations with dependable performance and robust application surfaces.

Payment, Export, and Quick Dispatch

Purchasing the OMRON PCB CARD 3G8B2-N0020 is seamless, with flexible payment terms catering to diverse business needs. The product is securely packaged to ensure integrity during transit and ready for quick dispatch upon receiving your purchase order. Widely exported to main markets in Asia, Europe, and beyond, our streamlined process guarantees prompt delivery. Rely on us for a timely supply and consistent support post-purchase, so your operations run uninterrupted.

FAQs of OMRON PCB CARD 3G8B2-N0020:

Q: How is the OMRON PCB CARD 3G8B2-N0020 best utilized in industrial settings?

A: The OMRON PCB CARD 3G8B2-N0020 is best utilized as a relay or PLC interface within industrial automation and machine control panels. Its design supports high reliability in controlling equipment and systems.

Q: What key features ensure the reliability and durability of this PCB card?

A: This model boasts robust FR4 fiberglass epoxy material, vibration and shock resistance, smooth installation, and RoHS compliance. Together, these features guarantee durability, reliability, and long service life.

Q: Where can the OMRON PCB CARD 3G8B2-N0020 be installed?

A: It is specifically designed for PCB mount applications in machine boards, automation systems, and industrial control cabinets, making it ideal for a variety of factory and machinery setups.

Q: What is the process for ordering and receiving this PCB card?

A: Simply submit a purchase order; we ensure secure packaging and quick dispatch. Products are shipped to main export markets with a commitment to prompt delivery and reliable transaction support.

Q: When should I choose this OMRON PCB card over other options?

A: Select this card when your application demands ace reliability, a 24V DC interface, high resistance to industrial shocks and vibrations, and compatibility with relay/PLC systems in demanding automation environments.
