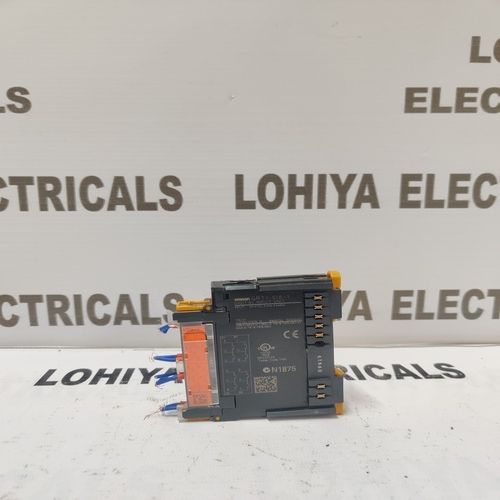

OMRON GRT1-ID8-1 DIGITAL INPUT UNIT

Get a Price/Quote

MOQ : 1 Piece

OMRON GRT1-ID8-1 DIGITAL INPUT UNIT Specification

Current Rating
4 mA per input

Thickness
Compact

Features
Compact modular design, Fast response time, Expandable with other GRT1 units

Connectivity Type
Removable Terminal Block

Operating Voltage
24 VDC

Rated Current
4 mA per channel

Base Material
Plastic

Components
Input Terminal, Status LED

Rated Operation Voltage
24 VDC

Control System
Distributed I/O

Cover Material
Plastic

Way
8-Channel

Protection Level
IP20

Rated Insulation Voltage
250 V

Cooling System
Natural Cooling

Panel Type
DIN Rail Mount

Protection Class
Class II

Product Type
Digital Input Unit

Material
Plastic

Surface Finish
Matte

Standard
CE

Surface Color
Gray

Rated Voltage
24 VDC

Maximum Output Current
Not Applicable (Input Unit)

Dimension (L*W*H)
117 mm x 18 mm x 60 mm

Application
Industrial Automation, PLC systems

IP Rating
IP20

Display Type
LED Status Indicators

Input Type
SINK (NPN)

Storage Temperature
-25°C to 65°C

OFF Voltage
5 VDC or less

ON Current
3.5 mA (typical, at 24 VDC)

Mounting Type
DIN Rail (Standard 35mm)

Wiring Method
Screwless clamps

Operating Temperature
0°C to 55°C

ON Voltage
15 to 24 VDC

Response Time
ON: 0.5 ms, OFF: 0.5 ms

Compatible Series
OMRON SmartSlice GRT1-series

LED Indicators
Status for each input channel

Relative Humidity
10 to 90% (non-condensing)

Number of Inputs
8 digital inputs

About OMRON GRT1-ID8-1 DIGITAL INPUT UNIT

Utilise the fresh, new release from OMRONthe illustrious GRT1-ID8-1 DIGITAL INPUT UNIT. Designed for noteworthy industrial automation, this top-drawer input module features 8 digital SINK (NPN) inputs with fast ON/OFF response times of just 0.5 ms. Experience advanced reliability through screwless clamps and robust DIN rail mounting. Each input channel boasts an LED status indicator for immediate feedback. Its CE-certified, IP20-protected, compact modular design is compatible with the esteemed OMRON SmartSlice GRT1-series, making it a remarkable choice for distributed I/O in PLC systems. Offer available for bulk and individual orders across India.

Enhanced Utility for Industrial Automation

The OMRON GRT1-ID8-1 DIGITAL INPUT UNIT is primarily used as a distributed I/O solution within industrial control panels and PLC systems. Its application sites include manufacturing plants, processing lines, and automated assembly units. Notable features of this machine include eight fast-response input channels, robust screwless wiring terminals, and independent LED indicators per channel, ensuring rapid diagnostics and effortless maintenance in demanding environments.

Sample, Export, and Delivery Policy

OMRONs GRT1-ID8-1 DIGITAL INPUT UNIT sample policy affords clients the ability to review the unit before committing to bulk procurement. Catering to both domestic and international clientele, the main export markets include regions with advanced industrial infrastructure. FOB Port options and efficient delivery logistics guarantee timely order completion and help maintain optimal market value for every stakeholder, from suppliers to traders in India.

FAQs of OMRON GRT1-ID8-1 DIGITAL INPUT UNIT:

Q: How is the OMRON GRT1-ID8-1 DIGITAL INPUT UNIT installed?

A: The OMRON GRT1-ID8-1 is designed for DIN rail mounting (standard 35mm), ensuring swift and secure installation in industrial control panels.

Q: What are the primary benefits of using this digital input unit?

A: Users benefit from rapid response times (0.5 ms), compact modular design, easy wire connection through screwless clamps, and clear status LED indicators for each channel, maximizing operational efficiency.

Q: Where can the OMRON GRT1-ID8-1 DIGITAL INPUT UNIT be applied?

A: This unit is ideal for industrial automation processes, including manufacturing facilities, PLC-based systems, and distributed I/O control architectures.

Q: When can I expect delivery after placing an order?

A: Delivery timelines depend on stock availability and the specified FOB Port, but orders are typically dispatched promptly to ensure market demand and value retention.

Q: What is the process for obtaining a sample unit?

A: Interested buyers can request a sample according to the suppliers sample policy, allowing for evaluation before finalizing bulk or recurring contracts.
