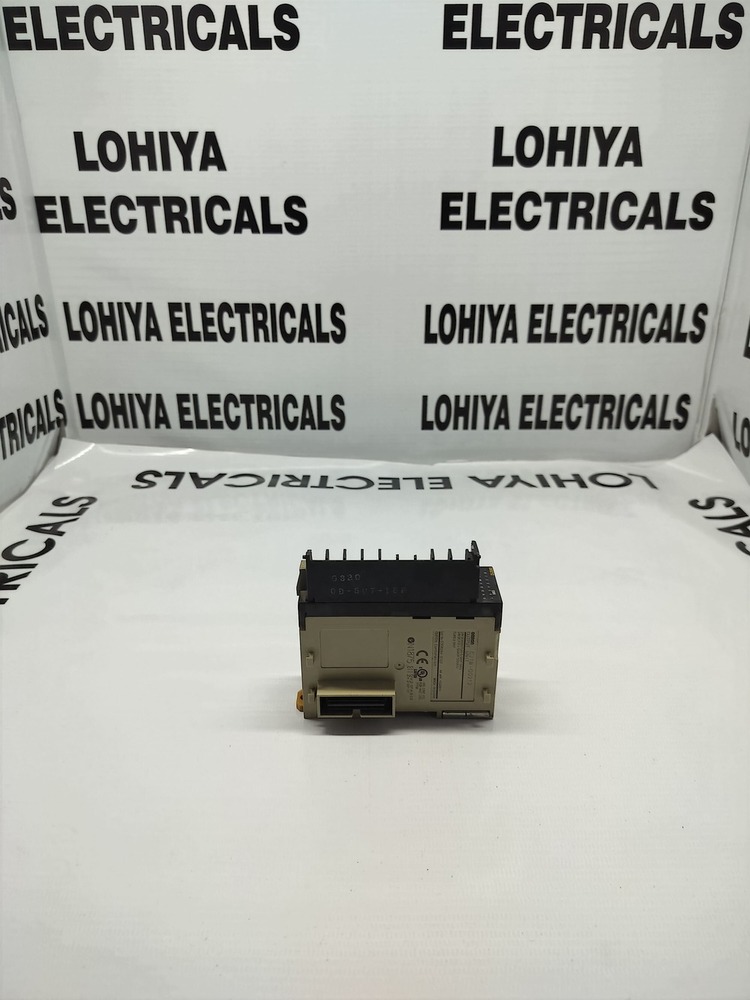

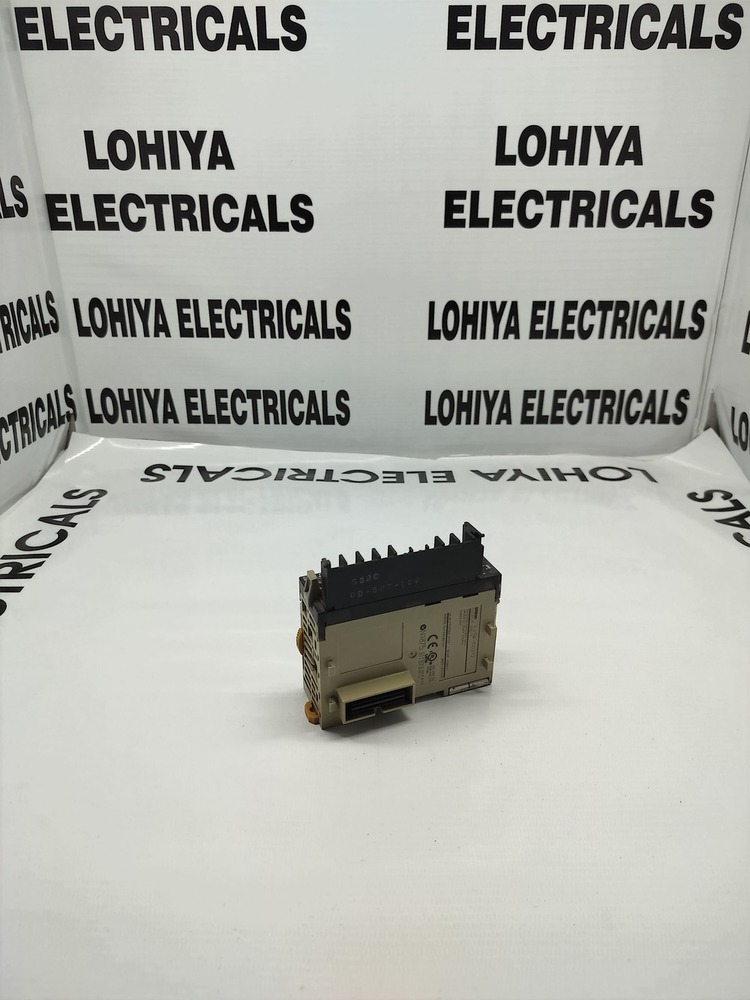

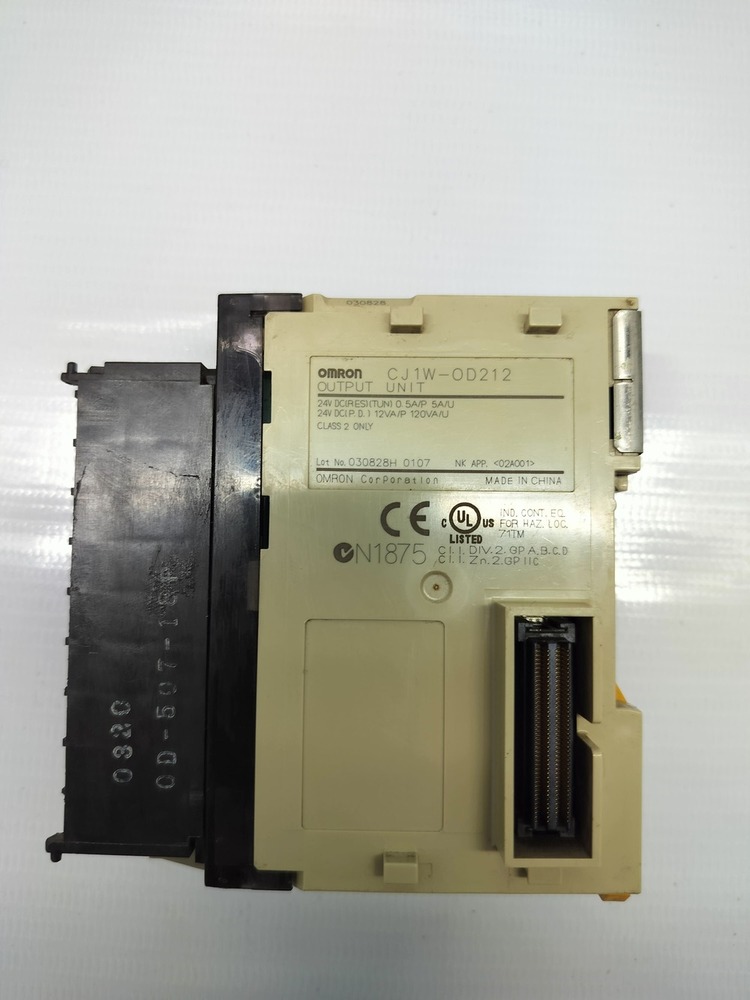

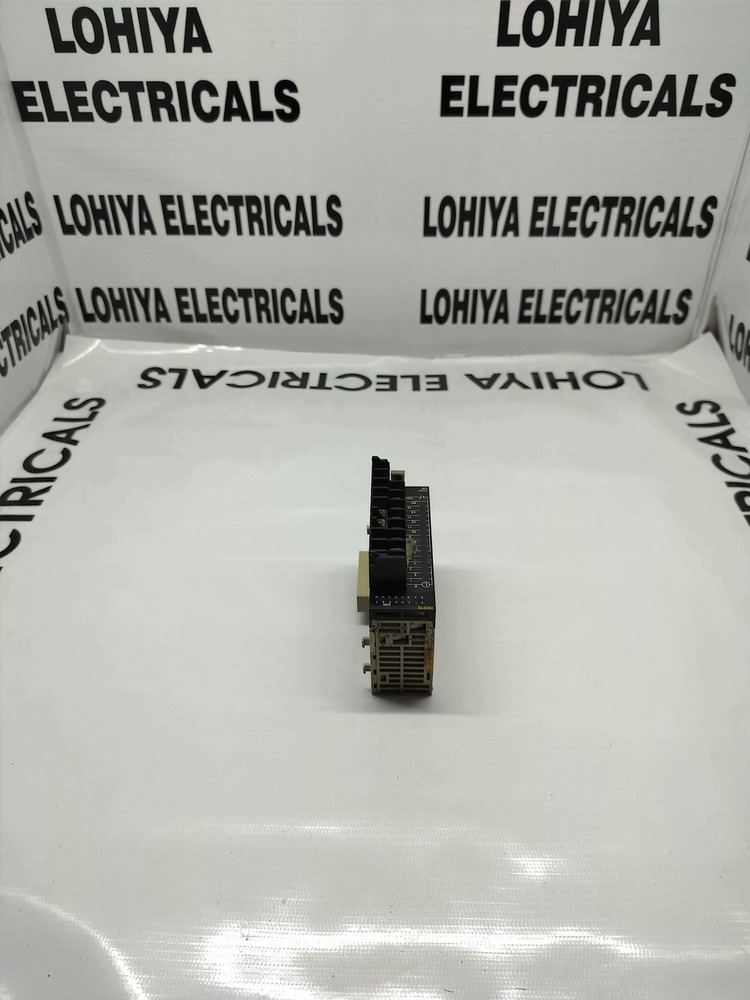

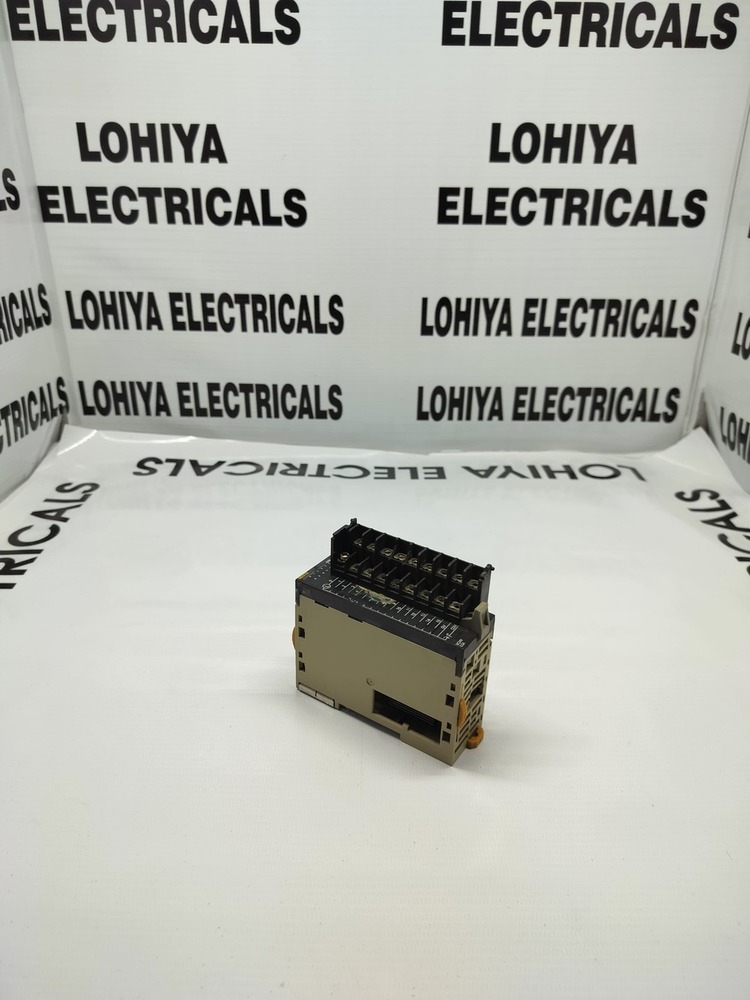

OMRON CJ1W-OD212 OUTPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

OMRON CJ1W-OD212 OUTPUT MODULE Specification

Control System
PLC Based

Rated Operation Voltage
24V DC

Cabinet Material
Plastic

Way
16 Outputs (12 used, sinking type)

Operating Voltage
20.4 to 26.4V DC

Base Material
Flame-Retardant Resin

Rated Insulation Voltage
500V AC (1 min between terminals)

Cover Material
Plastic

Cooling System
Air-cooled, natural convection

Thickness
Compact (Approx. 65 mm)

Panel Type
DIN Rail Mount

Protection Class
Class II

Components
Transistor (Sourcing) Outputs

Current Rating
0.5A/point, 2A/common

Features
Short-circuit Protection, Fuse Protection, Easy Mounting, Hot-swap Capability

Protection Level
IP20

Connectivity Type
Screw Terminals / Removable Terminal Block

Rated Current
0.5A/point

Product Type
Output Module

Material
Plastic, Electronic Components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey/Black

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
0.5A/point, 2A/common

Dimension (L*W*H)
90 x 31 x 65 mm

Application
Industrial Automation, PLC Systems

IP Rating
IP20

Display Type
LED Indicators for Output Status

Output Voltage Range
20.4 to 26.4V DC

Weight
Approx. 130g

Response Time
0.5 ms ON/OFF

Mounting Method
DIN Rail/Panel Mounting

Output Type
Transistor (Sourcing Output)

Surge Withstand Voltage
1,500V AC for 1 min

Number of Output Points
16 (12 points used)

Operation Temperature Range
0 to 55°C

About OMRON CJ1W-OD212 OUTPUT MODULE

Jump on the chance to elevate your industrial automation with the paragon of output modulesthe OMRON CJ1W-OD212 OUTPUT MODULE. Designed for excellence, this matchless unit allows users to take advantage of 16 output points (12 active), polished by a swift 0.5 ms response for rapid performance. Secure your operations within a compact 65 mm housing, featuring top-tier transistor sourcing outputs, DIN rail mounting, and robust surge protection. Get reliable output every cycle, all in a durable matte-finished enclosure, making this module an industry favorite for PLC systems nationwide.

Precision Performance for PLC Systems

The OMRON CJ1W-OD212 OUTPUT MODULE is expertly crafted for industrial automation, especially PLC-based control systems. It is used by engineers and plant operators for reliable transistor-based output control in factories, process plants, and smart manufacturing environments. Suitable for both specific industrial applications and general output control, this device ensures consistent delivery for mission-critical tasks, making it essential equipment for advanced factories and industrial assembly lines.

Global Market Reach & Flexible Payment Terms

The OMRON CJ1W-OD212 OUTPUT MODULE is shipped across major export markets including Asia, Europe, and the Middle East. Rate and asking price negotiations are seamless for suppliers and traders in India, with supply ability sufficient for bulk industrial demand. Common payment terms include T/T, L/C, and other arrangements as per buyer convenience. Clients can expect timely delivery and reliable support, making your procurement process straightforward and efficient.

FAQs of OMRON CJ1W-OD212 OUTPUT MODULE:

Q: How can the OMRON CJ1W-OD212 OUTPUT MODULE be integrated into PLC systems?

A: The module can be installed easily via DIN rail or panel mounting and connected using screw terminals or a removable terminal block. Its design allows for seamless integration with most Omron PLC automation setups.

Q: What types of protection features does this output module offer?

A: The CJ1W-OD212 includes matchless features such as short-circuit and fuse protection, as well as a surge withstand voltage of 1,500V AC for one minute. These safety features safeguard both the device and the connected components.

Q: When should I consider using this output module in my automation project?

A: This module is ideal when you require fast response output (0.5 ms) and reliable DC output (24V) in environments where up to 12 sourcing transistor outputs are needed, with robust performance and protection demanded by industrial automation.

Q: Where is the OMRON CJ1W-OD212 primarily used?

A: It is primarily used in industrial automation environments, such as automotive assembly lines, packaging plants, and process control rooms where PLC systems are deployed.

Q: What benefits do the LED indicators provide?

A: The built-in LED indicators provide immediate visual feedback for output status, making troubleshooting and system monitoring much more efficient for operators and maintenance teams.
