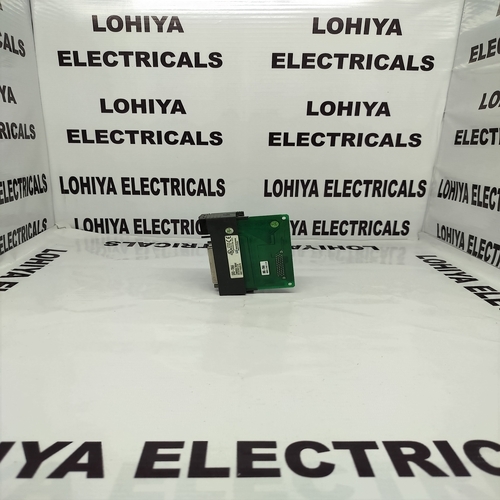

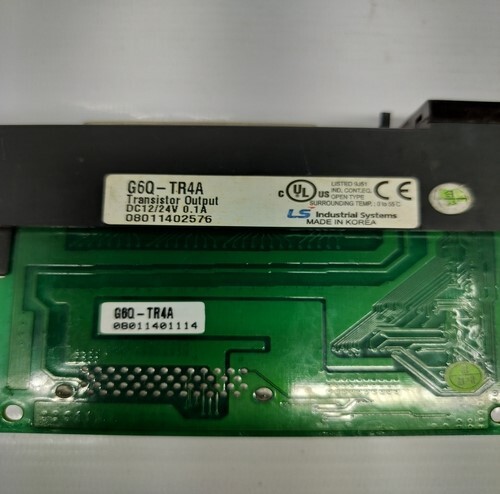

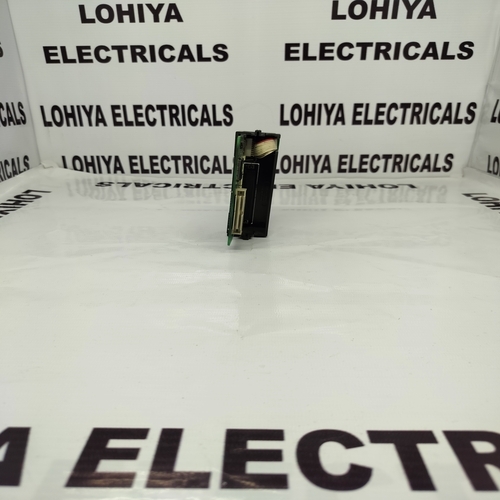

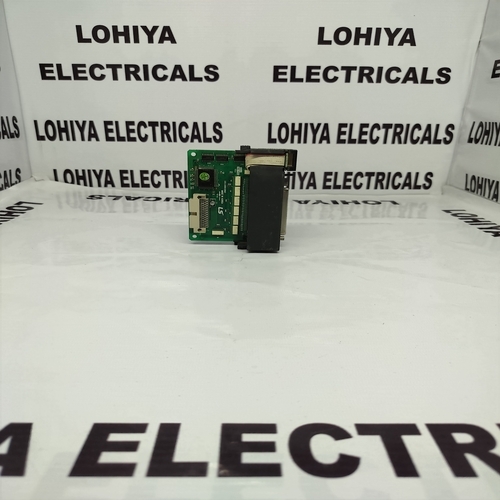

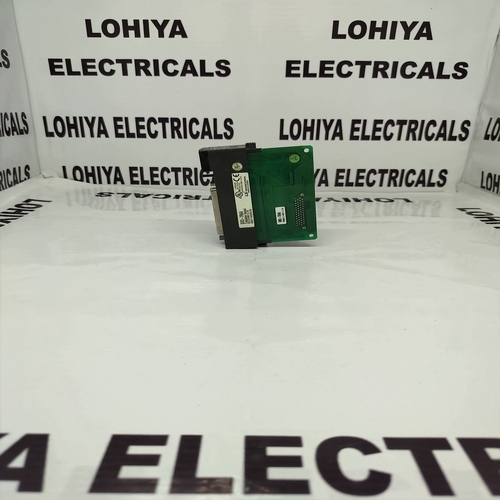

LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULE

Send Inquiry

Request To Call Back

LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULE Specification

Power Factor
High Power Factor Design

Rated Power
24 VDC, Up to 1.2A Total (4 x 0.3A)

Current Range
Maximum 0.3A per Channel

Power Supply
24 VDC

Working Temperature
0C to +55C

Connector Type
Screw Terminal Block

Operating Temperature
0C to +55C

Features
LED Indicator, Short-Circuit Protection, Removable Terminal Block

Application
PLC Automation, Industrial Control Systems

Rated Current
0.3A

Cooling Method
Natural Air Cooling

Noise Level
Low Electronic Noise

Phase
Single Phase

Output Current
0.3A per Channel

Output Type
NPN Transistor

Product Type
Transistor Output Module

Output Power
24 VDC, 0.3A per channel

Output Frequency
DC Output, Not Applicable

Input Voltage
24 VDC

Voltage Protection
Overvoltage Protection Provided

Efficiency
High Switching Efficiency

Material
Industrial Grade Plastic and Electronic Components

Line Regulation
Stable Line Regulation

Storage Temperature
-25C to +70C

Weight
Approx. 150g

Mounting Type
DIN Rail Mountable

Recommended Wire Size
0.3-1.5 mm2

Response Time
<0.5 ms

Isolation Method
Photo-coupler Isolation

Dielectric Strength
1,500 VAC, 1 minute (between output terminal and internal circuit)

Status Indication
Individual Channel LED Indicators

Compatibility
Compatible with LS Electric PLC Series

Number of Outputs
4 Channels

Module Dimensions
94 x 45 x 71 mm (W x H x D)

Insulation Resistance
>20M at 500 VDC

Environmental Resistance
Resistant to Dust and Vibration

Protection Function
Short-circuit, Overcurrent, Overvoltage Protection

About LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULE

The LS ELECTRIC G6Q-TR4A Transistor Output Module is a Limited time offering, designed for PLC automation and industrial control systems. Highly recommended for its decorated reliability, this module features 4 valuable output channels, each protected with redoubtable short-circuit, overcurrent, and overvoltage mechanisms. Customizable installation is seamless thanks to DIN Rail Mountable design and removable terminal blocks. Engineered with photo-coupler isolation and robust environmental resistance, it ensures stable performance across varied industrial applications. Individual LED indicators enhance operational transparency, making this module a premium choice for advanced automation needs.

LS ELECTRIC G6Q-TR4A Features & Applications

The G6Q-TR4A module boasts NPN transistor outputs, rapid response time under 0.5 ms, and valuable individual LED status indicators. Its surface is resistant to dust and vibration, making it ideal for demanding industrial environments. Used as a reliable interface in PLC automation and control systems, its compatibility with LS Electric PLC Series ensures seamless integration. Designed for single phase, 24 VDC application, it offers efficient switching and excellent protection for advanced control needs.

LS ELECTRIC G6Q-TR4A Packaging & Supply Information

Packaging for the G6Q-TR4A meets domestic market standards, ensuring goods transport is secure and efficient. Sample policy is typically available for valuation by traders and suppliers across India. The module is delivered via the nearest FOB port, streamlining logistic processes while maintaining product integrity. Customers benefit from sturdy cartons ensuring safe delivery and minimizing risk during shipment. Suppliers give priority to quality assurance and fast turnaround for bulk orders.

FAQs of LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULE:

Q: How can the LS ELECTRIC G6Q-TR4A module be installed in an industrial setup?

A: The module features a customizable DIN rail mount, allowing straightforward installation into standard industrial automation panels with screw terminal blocks.

Q: What protection functions does the G6Q-TR4A offer for output channels?

A: This model incorporates short-circuit, overcurrent, and overvoltage protection for each of the four output channels, ensuring operational safety and longevity.

Q: When is it recommended to use the G6Q-TR4A in a PLC system?

A: It is highly recommended for applications requiring fast switching, low noise levels, and robust environmental resistance in industrial control and automation systems.

Q: Where is the G6Q-TR4A commonly applied?

A: The module is routinely used in industrial control systems, PLC automation environments, and facilities prioritizing reliable and efficient signal output management.

Q: What are the benefits of individual channel LED indicators?

A: Each output channel has a dedicated LED, providing instant visual status indication and simplifying system diagnostics for operators.

Q: How is product valuation and delivery managed for traders in India?

A: Valuation is supported by sample policies and secure packaging, while goods are transported via the nearest FOB port, ensuring smooth logistics and product integrity.
