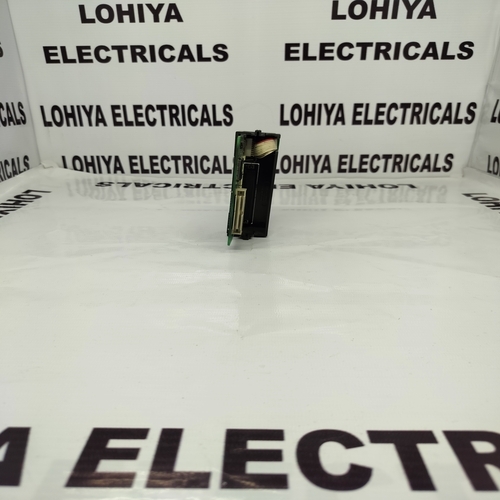

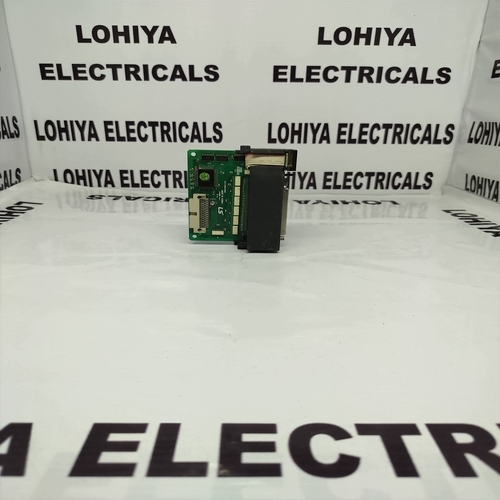

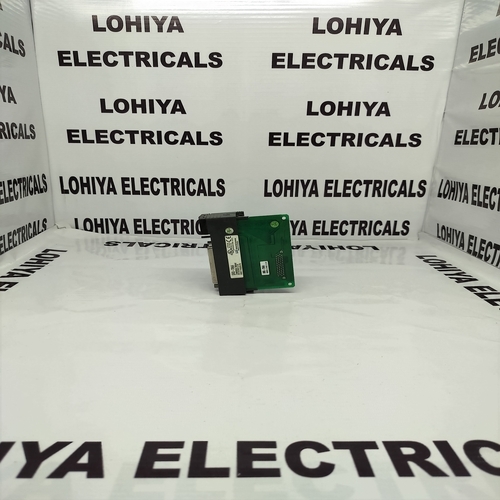

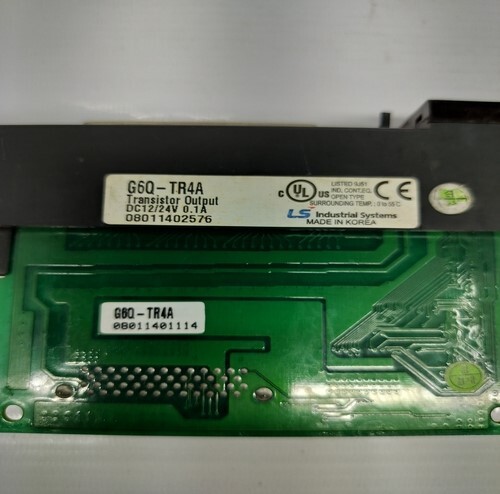

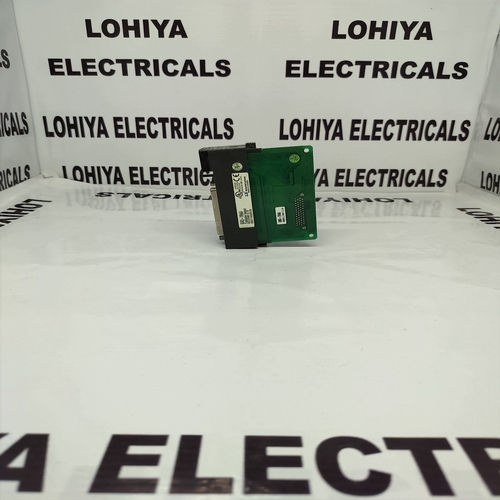

LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULEs

Get a Price/Quote

MOQ : 1 Piece

LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULEs Specification

Operating Temperature
0C to 55C

Power Supply
24V DC Power Supply

Output Type
Transistor (NPN)

Features
Fast Switching, Compact Design, Overload & Short Circuit Protection, DIN Rail Mountable

Output Current
0.5A per channel (max)

Phase
Single Phase

Rated Current
0.5A per channel

Application
Industrial Automation, PLC Systems, Machine Control

Cooling Method
Natural Air Cooling

Working Temperature
0C to 55C

Noise Level
Low

Current Range
0.1A to 0.5A (per channel)

Connector Type
Detachable Terminal Block

Product Type
Transistor Output Module

Input Voltage
24V DC

Voltage Protection
Yes (Internal Circuit Protection)

Efficiency
High Efficiency Switching

Material
Industrial Grade Plastic and Components

Storage Temperature
-25C to 70C

Weight
Approx. 150g

Signal Type
PNP/NPN (Configurable)

Vibration Resistance
10 to 55 Hz, 1.5 mm double amplitude

Output Voltage Drop
1V (at rated current)

Dimensions
90 x 80 x 27 mm (Approx.)

Mounting Type
DIN Rail or Screw Mount

Shock Resistance
300 m/s2 (approx. 30G)

Maximum Switching Voltage
30V DC

Insulation Resistance
100 M min. (500V DC)

Status Indicator
LED per Channel

Output Delay Time
ON: 0.1 ms, OFF: 0.5 ms

Number of Output Channels
4 Channels

About LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULEs

Experience the ephemeral power of the LS ELECTRIC G6Q-TR4A Transistor Output Modules, meticulously crafted for industrial automation. This scarce, advanced purchase caters to professionals seeking lavish efficiency and heroic reliability. With four configurable output channels (PNP/NPN), high-speed response, and breathtaking voltage protection, this module elevates your PLC systems to new standards. Insulation, vibration, and shock resistance ensure enduring performance. Enjoy compact design, natural air cooling, and robust internal circuit safeguardsall housed in industrial-grade plastic. Secure your G6Q-TR4A module now; opportunity is fleeting and supply is limited!

Extra Features and Exemplary Usage

The G6Q-TR4A module is designed for exclusive industrial applications, featuring DIN rail or screw mounting, LED status indicators, and overload protection for each channel. Its fast switching and compact profile accommodate seamless installation within PLC systems and machine control environments. Follow the simple direction of connecting via detachable terminal blocks and operate within the specified temperature for optimal longevity and high efficiency.

FOB Port, Payment Terms, and Certifications for Global Supply

LS ELECTRIC G6Q-TR4A modules are ready for export to major markets, supporting reliable exchange and robust supply chains. Each unit is shipped FOB from primary Indian ports, with flexible payment terms ensuring smooth transactions. Rigorously certified for quality and industrial standards, these modules meet stringent regulatory requirements, supporting customers worldwide in scalable automation integration. Contact your supplier or trader for tailored import arrangements and documentations.

FAQs of LS ELECTRIC G6Q-TR4A TRANSISTOR OUTPUT MODULEs:

Q: How do I configure the output signal type of the G6Q-TR4A module?

A: You can easily set the output signal type to either PNP or NPN, based on your specific application requirements, with configuration detailed in the instruction manual.

Q: What benefits does the fast switching capability offer in industrial automation?

A: Fast switching (ON: 0.1 ms, OFF: 0.5 ms) ensures precise control and rapid process response, maximizing efficiency in machine automation tasks.

Q: Where can I mount the LS ELECTRIC G6Q-TR4A Transistor Output Module?

A: The module supports both DIN rail and screw mounting, allowing for versatile installation in various control panels and automation systems.

Q: What makes this output module suitable for use in harsh industrial environments?

A: With high vibration and shock resistance, insulation protection, and wide temperature tolerance, the G6Q-TR4A is engineered for reliable performance in demanding industrial settings.
