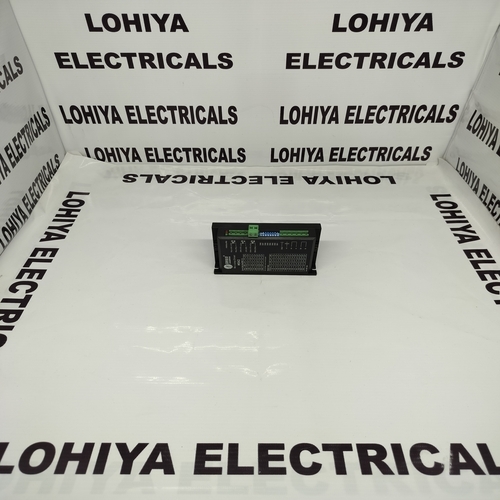

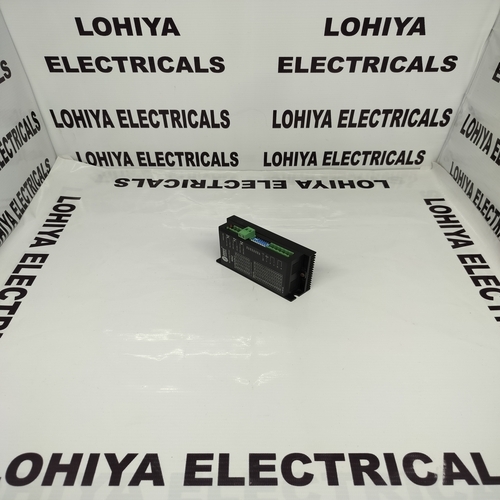

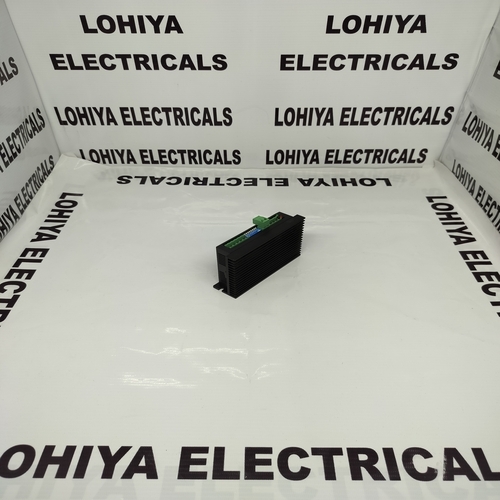

LEADSHINE M542 MICROSTEP DRIVER

Get a Price/Quote

MOQ : 1 Piece

LEADSHINE M542 MICROSTEP DRIVER Specification

Connector Type
Screw terminals

Phase
2-phase

Power Supply
24~50VDC recommended

Rated Current
4.2A Max

Application
CNC, robotics, textile, laser machines

Cooling Method
Natural air cooling

Current Range
1.0 Amp to 4.2 Amp selectable

Features
Microstepping up to 1/32, automatic idle-current reduction, opto-isolated inputs, short-circuit protection

Output Current
1.0A to 4.2A

Noise Level
Low Noise

Working Temperature
0C to +50C

Operating Temperature
0C to +50C

Output Type
Bipolar Stepper Motor Driver

Product Type
Microstep Driver

Output Frequency
Up to 200 kHz

Input Voltage
20~50VDC

Voltage Protection
Over-voltage and over-current protection

Efficiency
High (>90%)

Material
Metal (Aluminum alloy housing)

Storage Temperature
-10C to +70C

Weight
Approx. 280g

Mounting Method
Panel mount

Insulation Resistance
>= 500M

Protection
Short circuit, over-voltage, and over-current

Signal Interface
Optically isolated

Dimension
118 mm x 75.5 mm x 34 mm

Humidity
40-90% RH (non-condensing)

LED Indicators
Power and fault

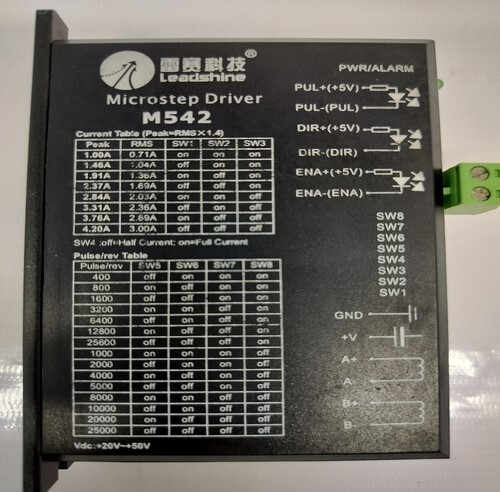

Microstep Settings
Selectable: Full, 1/2, 1/4, 1/8, 1/16, 1/32

Pulse Input Signal
3.3V to 24V compatible

Step Pulse Width
>= 2.5 s

About LEADSHINE M542 MICROSTEP DRIVER

Experience invincible performance with the LEADSHINE M542 MICROSTEP DRIVER, a grand solution for advanced motion control in CNC, robotics, textile, and laser applications. Towering with durability, its robust aluminum alloy housing ensures lasting reliability, while selectable microstep settings deliver precise operation. Featuring comprehensive protections and opto-isolated inputs, this driver operates at high efficiency with minimal noise. Procure now to elevate your automation projects-shop, buy, or exchange from India's premier supplier and trader to secure unmatched perfection for your setups.

Unmatched Versatility and Premium Features

The LEADSHINE M542 MICROSTEP DRIVER is engineered for diverse environments including CNC machines, robotics, and textile automation. Its primary competitive advantages include high efficiency (>90%), automatic idle-current reduction, and opto-isolated inputs for safety. Crafted from premium aluminum alloy, this driver offers a durable, natural air cooling design. The housing ensures robust protection against environmental challenges, making it a reliable choice for demanding applications requiring rigorous operational precision.

Certifications, Packaging & Sale Advantages

Each LEADSHINE M542 MICROSTEP DRIVER is delivered with strict adherence to quality standards. Secure packaging ensures the product arrives undamaged, ready for immediate integration. Take advantage of special sale price offers or explore exchange options for convenient procurement. Orders are promptly processed, with the driver being handed over for delivery within standard timelines to ensure swift deployment in your projects.

FAQ's of LEADSHINE M542 MICROSTEP DRIVER:

Q: How do I select the appropriate microstep setting on the LEADSHINE M542 MICROSTEP DRIVER?

A: Microstep settings can be easily selected with the DIP switches on the driver, offering options from Full, 1/2, 1/4, 1/8, 1/16, to 1/32 step resolutions, allowing you to configure precision according to your application's requirements.

Q: What are the key benefits of using optically isolated inputs in the M542 driver?

A: Optically isolated inputs help prevent voltage spikes and electrical noise from interfering with the control signals, ensuring the driver operates securely and offers reliable motor performance even in high-interference environments.

Q: Where is the best-suited surface of application for the M542 Microstep Driver?

A: The M542 is ideal for installations on panel-mounted control units in industrial settings like CNC machines, robotics workstations, textile equipment, and laser machine panels, offering consistent protection and efficient integration.

Q: When can I expect delivery after purchasing the LEADSHINE M542 MICROSTEP DRIVER?

A: Once you complete your purchase or exchange, the driver is typically handed over to our trusted delivery partners right away, ensuring you receive your product promptly as per our standard delivery timelines.

Q: What process ensures the M542 driver is properly protected during shipment?

A: Each driver is packed securely with protective materials and verified for quality before dispatch, so it reaches you in pristine condition without damage during transit.

Q: How does the automatic idle-current reduction feature work for users?

A: This feature automatically lowers the current to the stepper motor when idle, reducing heat generation, saving energy, and prolonging the overall lifespan of the motor and driver.
