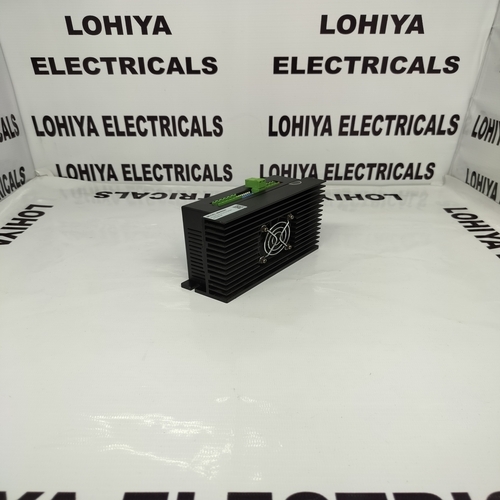

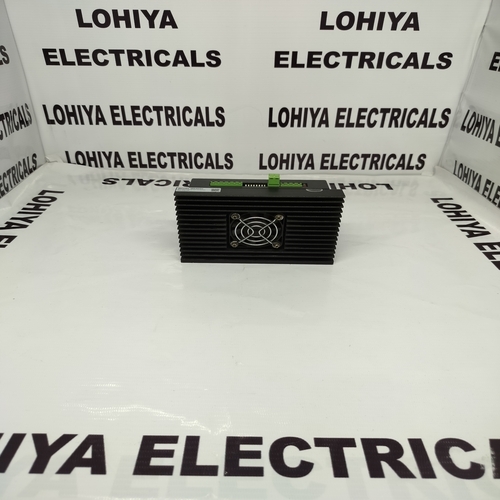

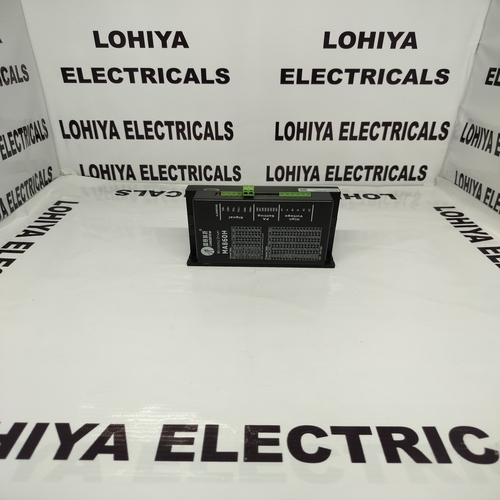

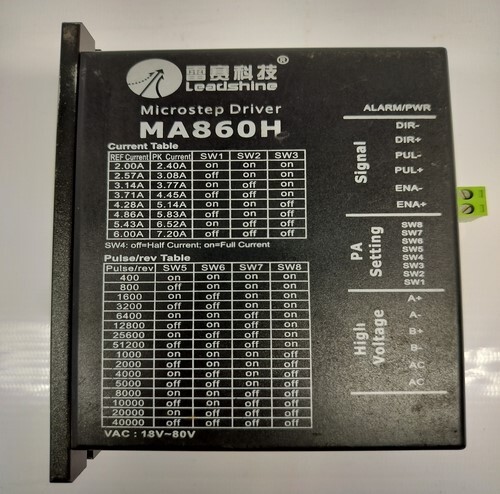

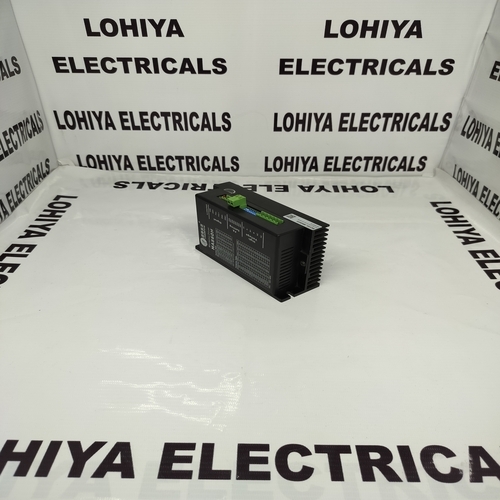

LEADSHINE MA860H STEPPER MOTOR DRIVE

Get a Price/Quote

MOQ : 1 Piece

LEADSHINE MA860H STEPPER MOTOR DRIVE Specification

Power Supply
24-80V DC / 18-80V AC

Current Range
2.4A - 7.2A

Working Temperature
0C to 50C

Phase
Two-phase & Four-phase Supported

Output Current
2.4A to 7.2A (Selectable)

Cooling Method
Natural Cooling (Heat Sink)

Operating Temperature
0C to 50C

Power Factor
0.98 (Typical)

Noise Level
Very Low (Microstepping Technology)

Features
Microstepping, Automatic Idle Current Reduction, LED Fault Indicator, Multiple Step Resolutions

Rated Current
Up to 7.2A

Rated Power
Varies by load

Output Type
Step/Direction (Pulse) Control

Connector Type
Screw Terminals

Application
CNC Machines, Engraving Machines, Textile Equipment, Robotics

Product Type
Stepper Motor Drive

Output Power
Up to 1600W

Output Frequency
Up to 200KHz

Input Voltage
24-80V DC or 18-80V AC

Voltage Protection
Over-voltage, Under-voltage, and Short Circuit Protection

Efficiency
High Efficiency (>90%)

Material
Aluminum Alloy

Line Regulation
Excellent (Low ripple & noise)

Storage Temperature
-40C to +85C

Weight
Approx. 500g

Compatible Motors
2-phase & 4-phase 57-110mm NEMA23/34/42 Stepper Motors

Pulse Width
>= 2.5s

Dimension
118mm x 75.5mm x 34mm (L x W x H)

Pulse Input Frequency
0 to 200kHz

Step Resolution
16 Selectable Settings, up to 1/256 Microsteps

Protection Level
IP20

Mounting
Panel Mount

Humidity
40-90% RH (non-condensing)

Indicator
Power ON and Fault LED

Insulation Resistance
>= 500M

Control Signal Voltage
3.3V/5V/24V Compatible

About LEADSHINE MA860H STEPPER MOTOR DRIVE

Experience the lustrous performance and remarkable reliability of the LEADSHINE MA860H Stepper Motor Drive, now available at competitive pricing for a limited time only. This majestic drive boasts 16 selectable microstepping resolutions-up to 1/256-ensuring precision in every movement. With broad input voltage compatibility, robust aluminum alloy build, and advanced protection features, it supports both 2-phase and 4-phase NEMA23/34/42 motors. Plus, enjoy efficient natural cooling and whisper-quiet operation. Secure your discount now while this offer lasts-an unmatched value for CNC, robotics, and automation applications.

Versatile Motion Control for Diverse Applications

The LEADSHINE MA860H Stepper Motor Drive is engineered for use in CNC machines, engraving equipment, textile machinery, and robotics. Designed for both light and heavy-duty tasks, it effectively operates with 2-phase and 4-phase NEMA stepper motors. This drive is suitable for use in industrial automation, prototyping labs, and production lines, making it ideal for high-precision or repetitive processes across varying media and environments.

Certifications, Delivery, and Supply Assurance

Our products undergo strict quality checks to ensure high standards and operational safety. With reliable transport services in India, the estimated delivery time for the LEADSHINE MA860H Stepper Motor Drive is typically prompt and communicated upfront, helping you manage project expenditures efficiently. Our significant supply capacity ensures seamless availability and consistent support, reducing wait times and project delays for our valued clients nationwide.

FAQ's of LEADSHINE MA860H STEPPER MOTOR DRIVE:

Q: How is the LEADSHINE MA860H Stepper Motor Drive installed and connected?

A: The MA860H is designed for panel mounting and uses screw terminals for secure electrical connections. Follow the manufacturer's wiring diagram when connecting motors and control signals for optimal performance.

Q: What motors are compatible with the MA860H drive?

A: It supports 2-phase and 4-phase stepper motors within the 57-110mm NEMA23, NEMA34, and NEMA42 ranges, making it suitable for various CNC, engraving, and automation systems.

Q: When is the best time to purchase this product for the highest discount?

A: This product is currently offered at a competitive price with a special limited-time discount. To maximize your savings, consider making your purchase while this promotional offer is active.

Q: Where can the LEADSHINE MA860H be used most effectively?

A: It excels in CNC machines, engraving machines, textile equipment, and robotics, providing high precision and reliability in these demanding environments.

Q: What are the key protective features included in this motor drive?

A: The drive provides over-voltage, under-voltage, and short circuit protection, along with automatic idle current reduction and LED fault indicators for enhanced safety and diagnostics.

Q: How efficient is this stepper drive during operation?

A: The MA860H delivers high efficiency (over 90%) and operates with very low noise, thanks to advanced microstepping technology and passive cooling system.
