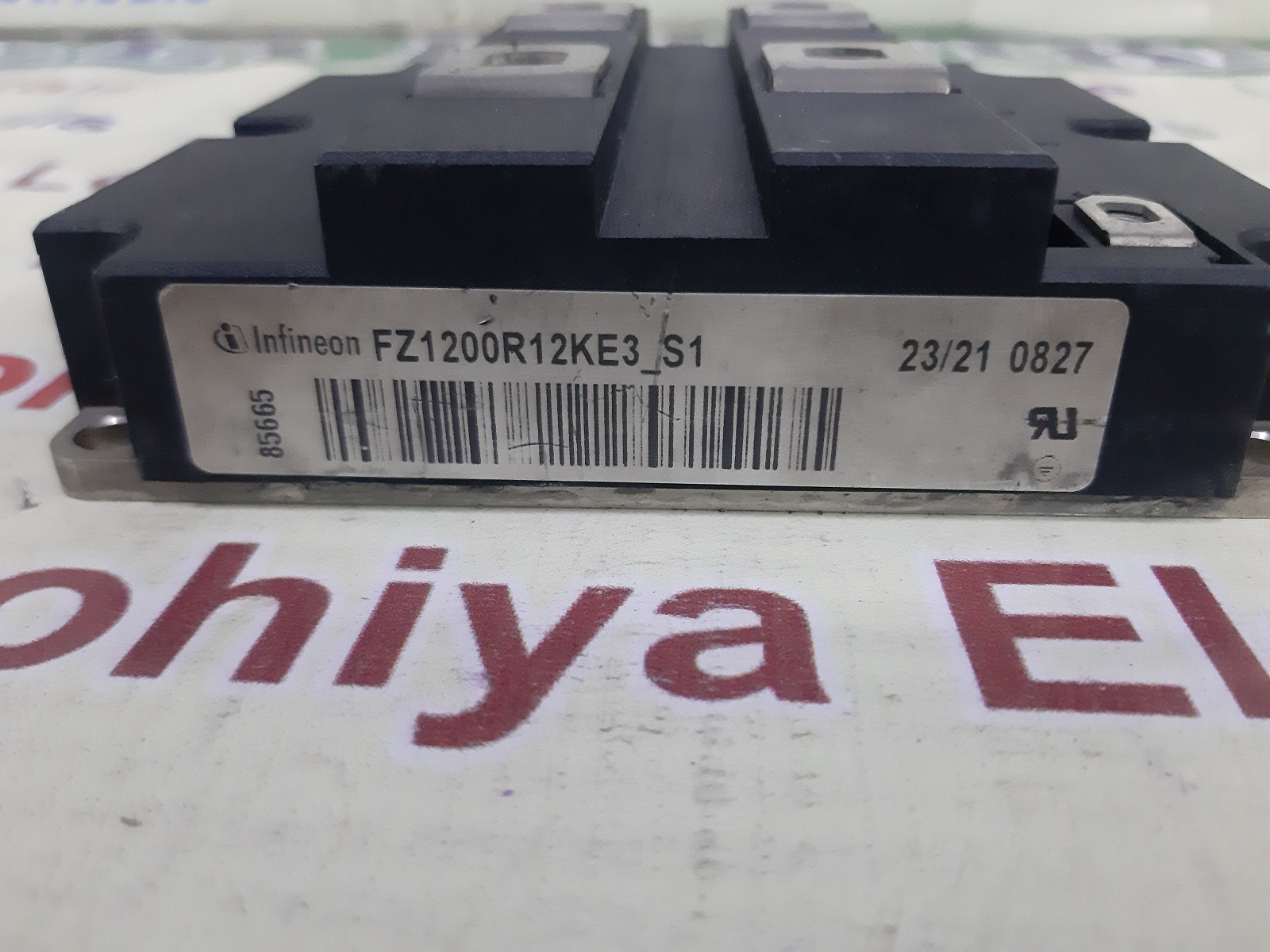

Infineon IGBT

Get a Price/Quote

Infineon IGBT Specification

Features
Low Saturation Voltage, Fast Switching Speed, High Reliability, Integrated Diode

Output
NPN/PNP Transistor Output

Usage & Applications
Industrial Power Management, AC Motor Control, Solar Inverters, Power Supplies

Switch Type
IGBT Switch

Pole Type
Double/Triple module options (varies by part number)

Mounting Type
Screw Mount

Protection Level
Short Circuit Protection, Overtemperature Protection

Installation Type
Panel Mount

Frequency
20 kHz max (switching frequency)

Phase
Three Phase

Current
75A (typical)

Connectivity Type
Screw Terminal

IP Rating
IP00

Product Type
Infineon IGBT Module

Operating Temperature
-40C to +150C

Working Temperature
-40C to +125C

Input
Gate Voltage 15V

Pressure Type
Standard Type

Application
Motor Drives, Inverters, Induction Heating, UPS

Supply Voltage
600V / 1200V / 1700V (varies by model)

Dimension (L*W*H)
134 mm x 62 mm x 30 mm (varies by package)

Weight
Approx. 230g

About Infineon IGBT

Experience world-class performance with the Infineon IGBT, available in exclusive configurations of 600V, 1200V, or 1700V (model dependent) and supporting up to 75A continuous collector current. Renowned for its fast switching speed (<250ns), low saturation voltage, and integrated diode, this IGBT is ideal for personalised solutions in motor drives, industrial power management, and solar inverters. Housing in insulated plastic with tinned copper terminals, each unit features advanced protection mechanisms, is RoHS compliant, and offers remarkable reliability for a range of demanding applications. Redeem superior efficiency in every project with this exceptional IGBT solution.

Comprehensive Features and Application Versatility

Infineon IGBTs stand out with high reliability, low saturation voltage, and integrated protection features including short circuit and overtemperature safeguards. Their insulated design, fast switching capabilities, and high-quality material build deliver a competitive advantage in surface applications spanning industrial automation, AC motor control, power supplies, and UPS. The modules compatibility with various voltage and phase options further adds to its versatility for diverse installation requirements.

Quick Delivery, Domestic Reach, and Sample Solutions

Order completion for Infineon IGBTs is streamlined to offer prompt delivery times, maximizing your market value and uptime. With a strong domestic market presence, these modules are available for immediate dispatch to meet proposal amounts and customer demand. Flexible sample policies ensure you can test and evaluate product quality before full-scale deployment, making it easier to strategise and plan major industrial investments with confidence.

FAQs of Infineon IGBT:

Q: How does the Infineon IGBT improve industrial power management?

A: The Infineon IGBT offers high switching speeds, low saturation voltage, and integrated protection, resulting in increased system efficiency, reduced power losses, and enhanced operational reliability for complex industrial power management tasks.

Q: What applications can benefit most from using this IGBT module?

A: Industries requiring robust power solutions such as motor drives, AC motor control, inverters, UPS systems, and solar power inverters will greatly benefit from the Infineon IGBTs high reliability and performance.

Q: Where can the Infineon IGBT be installed?

A: Designed for versatility, the IGBT can be panel mounted with screw terminals, suitable for integration into industrial machinery, power distribution cabinets, or renewable energy setups.

Q: What is the process for redeeming a sample and evaluating product quality?

A: To obtain a sample, contact the supplier directly. Upon reviewing your proposal amount and application details, they will provide a sample to help you assess the IGBTs suitability and market value for your project.

Q: When should I consider using a three-phase IGBT switch?

A: A three-phase IGBT switch is recommended when controlling high-power AC motors, industrial inverters, or when efficient, robust industrial automation is required.
