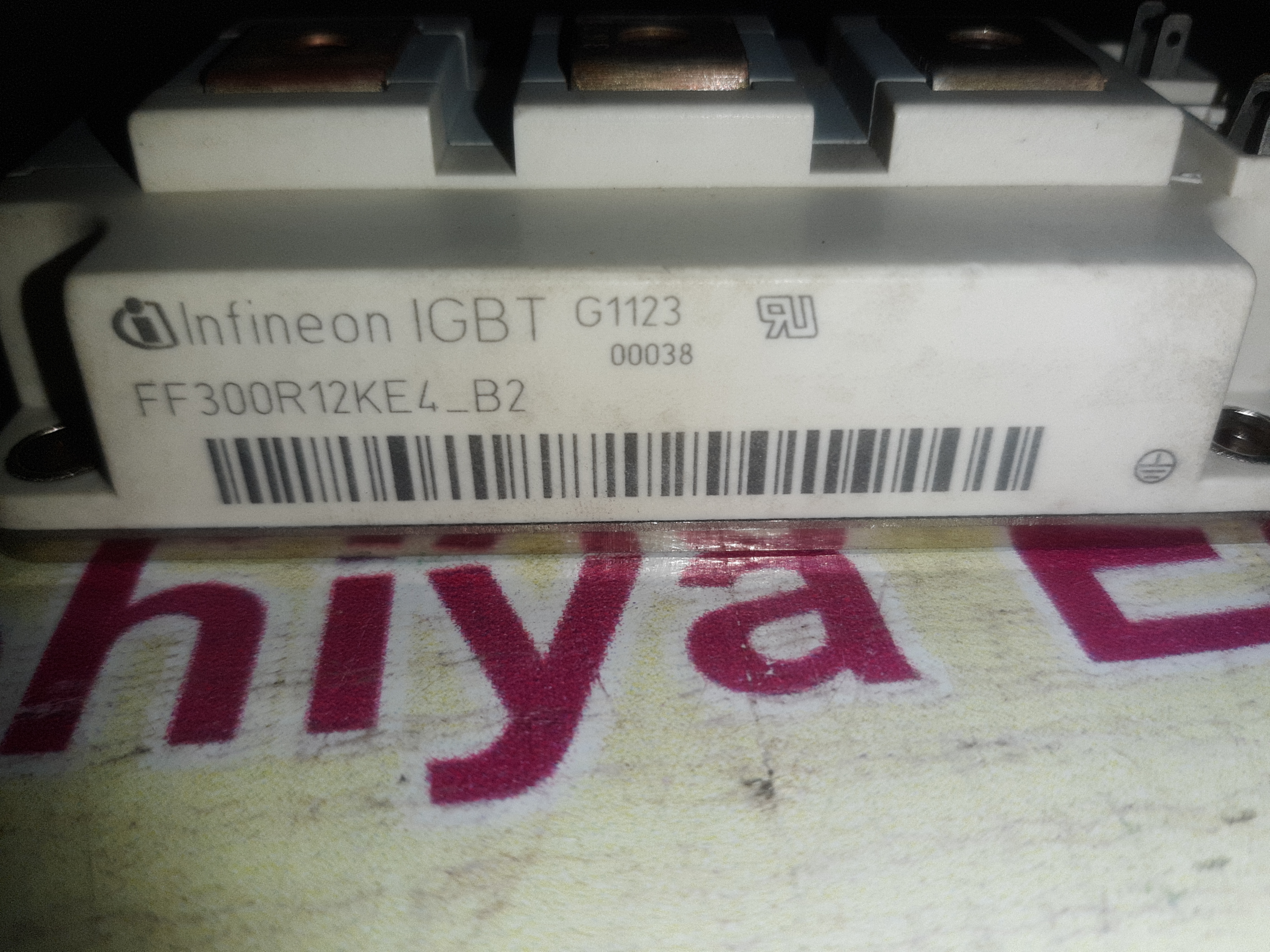

Infineon IGBT

Get a Price/Quote

Infineon IGBT Specification

Pole Type
Single

Switch Type
Electronic switch

Output
Collector-Emitter

Usage & Applications
Industrial motor control, inverter, renewable energy systems

Current
50A

Phase
Single/Three phase in inverter assemblies

Mounting Type
PCB/Heatsink

Protection Level
Collector-Emitter voltage (VCES): 1200V

Features
High efficiency, fast switching, low loss, robust design

Frequency
DC/Low Frequency switching

Connectivity Type
Through-hole/SMD

Installation Type
PCB Mount

Product Type
IGBT (Insulated Gate Bipolar Transistor)

Operating Temperature
-40C to +150C

Working Temperature
-40C to +150C

Input
Gate

Diameter
Package dependent

Application
Power electronics, motor drives, inverters, UPS, induction heating

Supply Voltage
Collector-Emitter Voltage: 1200V

Dimension (L*W*H)
Varies by package type, usually around 40mm x 20mm x 5mm

Weight
Depends on package, typically < 50g

Package Type
Module / TO-247 / EasyPACK (varies by model)

Maximum Collector-Emitter Voltage (VCES)
1200V

Gate Threshold Voltage (Vge(th))
5V - 7V

Maximum Power Dissipation
300W

Model Number
Infineon IGBT 1200V 50A

Short Circuit Withstand Time
10µs

Turn-off Delay Time
500ns (typical)

RoHS Compliance
Yes

Turn-on Delay Time
80ns (typical)

Isolation Voltage
2.5kV (for modules)

Maximum Gate-Emitter Voltage (VGES)
+20V / -20V

About Infineon IGBT

Unlock breathtaking performance and flawless reliability with the Infineon IGBT 1200V 50A series, now at the best price! Experience instant savings on these featured modules, available in versatile packages such as TO-247 and EasyPACK. The glorious design boasts a gate threshold voltage of 5V7V and a superlative maximum power dissipation of 300W. Ideal for advanced power electronics, motor drives, UPS, and inverters, this robust, RoHS-compliant device is engineered for high efficiency, fast switching, and low loss. Perfect for industrial and renewable energy solutions.

Diverse Applications and Usage Areas

The Infineon IGBT is expertly crafted for a wide array of applications, making it the premier choice for industrial motor control, inverters, and renewable energy systems. Its adaptability extends to UPS systems, induction heating, and advanced power electronics, ensuring robust performance across various settings. Whether used in single or three-phase inverter assemblies, this module optimizes energy management and boosts operational efficiency in both commercial and industrial arenas.

Market Availability, Supply, and Shipping

Infineon IGBTs dominate the main domestic markets, offering steady supply ability to meet demanding industrial needs with ease. With efficient expenditure management, businesses can confidently invest in these advanced modules. Express shipping options are available, and each product is shipped securely to guarantee prompt and safe delivery. Flexible payment terms further facilitate a seamless procurement process, making this IGBT a smart, hassle-free choice for wholesale and retail transactions alike.

FAQs of Infineon IGBT:

Q: How is the Infineon IGBT 1200V 50A typically installed?

A: This Infineon IGBT can be mounted on a PCB or heatsink, utilizing through-hole or surface-mount (SMD) connectivity, depending on the chosen package type.

Q: What are the main benefits of using this IGBT in renewable energy systems?

A: Featuring high efficiency, fast switching, and low power loss, this IGBT ensures optimal energy conversion, reliability, and robust performance, which are essential for modern renewable energy applications.

Q: Where can the Infineon IGBT module be most effectively applied?

A: It excels in power electronics, industrial motor drives, uninterruptible power supplies (UPS), inverters, and induction heating systems, thanks to its high voltage and current ratings.

Q: When is it best to utilize the Infineon IGBTs short circuit withstand time feature?

A: The short circuit withstand time of 10s is crucial during unexpected overload events, protecting connected systems from damage by giving controllers time to respond.

Q: What process should be followed for purchasing and shipping?

A: Customers can select from available supply options and take advantage of express shipping. The product is shipped securely, with payment terms arranged to best suit each buyers needs.

Q: How does this IGBT enhance industrial expenditure management?

A: Its robust design and long operational lifespan minimize maintenance and replacement costs, delivering better total expenditure control for industrial-scale operations.
