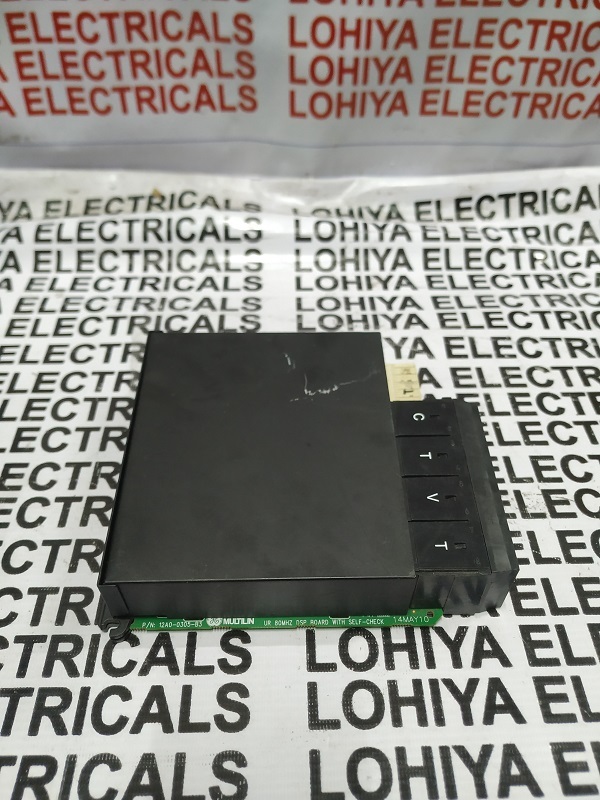

GE Multilin UR 8NH CT/VT Module

Get a Price/Quote

GE Multilin UR 8NH CT/VT Module Specification

Cabinet Material
N/A (module insert)

Cooling System
Passive / natural convection

Rated Operation Voltage
100-250V AC/DC

Components
Isolated CT and VT input circuits, terminal blocks, status LEDs

Protection Class
Class II

Operating Voltage
100-250V AC/DC

Rated Current
1A / 5A (CT)

Way
Dual input: CT (Current Transformer), VT (Voltage Transformer)

Features
Hot swappable, configurable input, high accuracy measurement

Thickness
Module card; ~2 cm

Protection Level
Input and optical isolation

Connectivity Type
Terminal block input

Base Material
Printed circuit board (PCB)

Cover Material
Aluminum front panel, plastic casing

Current Rating
1A/5A (for CT inputs)

Rated Insulation Voltage
2 kV RMS (1 min)

Control System
Integrated with Multilin UR relay systems

Panel Type
Plug-in module

Product Type
CT/VT Input Module

Material
Industrial-grade electronic components

Surface Finish
Textured / Matte

Standard
IEC 60255 / ANSI C37.90

Surface Color
Black / Gray

Rated Voltage
250V AC/DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
5A (CT) / 1A (VT)

Dimension (L*W*H)
132 mm x 25 mm x 218 mm

Application
Protection, control, and metering in GE UR relay series

IP Rating
IP20 (front panel installed)

Display Type
Status LEDs, relay interface

Lifecycle Status
Active, In Production

Weight
Approx. 350g

Signal Isolation
Optically Isolated Channels

Relay Type
Universal Digital Relay Module

Serviceability
Front-Access Maintenance and Replacement

Ambient Operating Temperature
-10C to +55C

Mounting Type
Modular Backplane Slot Mount

Data Acquisition Rate
High-speed sampling up to 1 ms

Humidity Range
up to 95% non-condensing

Compatible Models
UR Family (UR, UR Plus, UR Classic)

Storage Temperature
-40C to +85C

Dielectric Strength
2200V RMS for 1 minute

Input Channels
8 CT/VT inputs

About GE Multilin UR 8NH CT/VT Module

Ending soon: Stay ahead with the hot-selling GE Multilin UR 8NH CT/VT Module, famed for its first-class performance and majestic modular design. Personalise protection, control, and metering in your GE UR relay series with this universal digital relay module. Achieve high-speed data acquisition up to 1 ms, with 8 optically isolated CT/VT inputs, ensuring reliable operation in even demanding environments. This industrial-grade module is engineered to IEC/ANSI standards with a robust aluminum front panel and textured finish, providing a truly first-class integration experience. Limited stockorder now!

Precision Application and Versatile Usage

The GE Multilin UR 8NH CT/VT Module is tailored for application media needing robust protection, precise control, and advanced metering. Its specific use lies in the seamless integration with the entire UR Family, supporting a wide range of general operating environments. Its usage type includes high-accuracy data sampling, universal digital relay applications, and flexible installation through modular backplane slot mounting, making it ideal for both retrofits and new systems.

Order Processing, Payment Terms, and Market Presence

Order processing is streamlined, with express shipping available to expedite delivery across the main domestic market in India. Flexible payment terms are offered for a hassle-free transaction, and the supplier ensures market value with excellent after-sales support. Samples may be available upon request for evaluation purposes, enabling you to assess the quality before committing to a full order. Take advantage of this opportunity and secure first-class technology for your installations.

FAQs of GE Multilin UR 8NH CT/VT Module:

Q: How does the GE Multilin UR 8NH CT/VT Module enhance system protection and control?

A: The GE Multilin UR 8NH CT/VT Module provides precise real-time measurement, protection, and reporting through its 8 isolated CT/VT input channels, ensuring high-speed data acquisition and the reliable operation of your relay systems.

Q: What models is the GE Multilin UR 8NH CT/VT Module compatible with?

A: This module is designed to be compatible with the entire GE Multilin UR Family, including UR, UR Plus, and UR Classic relay systems, offering modularity and ease of integration.

Q: Where is the module typically installed and how is it mounted?

A: The module is installed in the modular backplane slot of your GE Multilin UR relay systems. It features a plug-in, slot-mount design for easy maintenance and front-access replacement.

Q: What are the benefits of the hot-swappable and configurable input features?

A: The hot-swappable design allows users to replace or maintain the module without powering down the system, reducing downtime. Configurable inputs ensure flexibility to meet specific CT and VT measurement requirements.

Q: When should I consider requesting a sample before purchase?

A: If you require product evaluation for fit and compatibility within your existing relay architecture, requesting a sample is a prudent step before placing a larger order.

Q: What is the process for express shipping and what regions are covered?

A: Express shipping is available as part of the streamlined order processing, covering the main domestic market in India. Delivery times are minimized to support critical project schedules.
