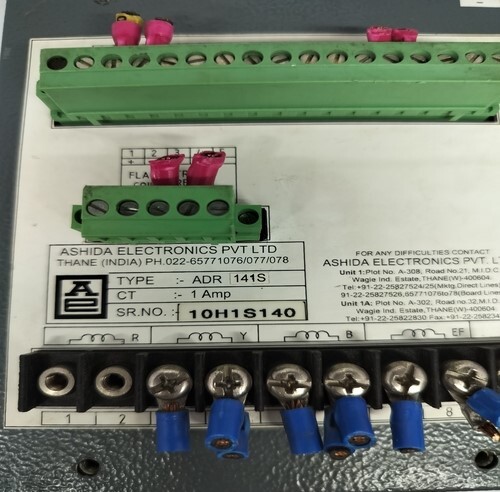

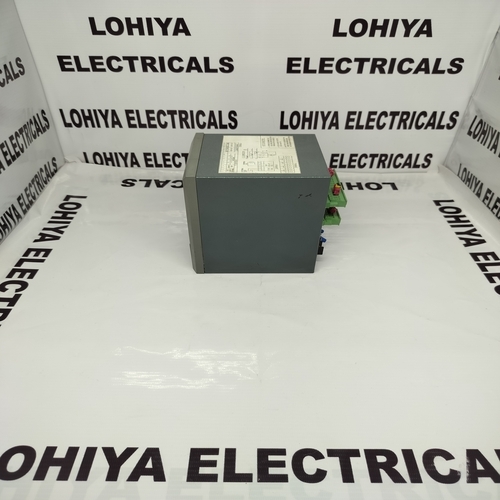

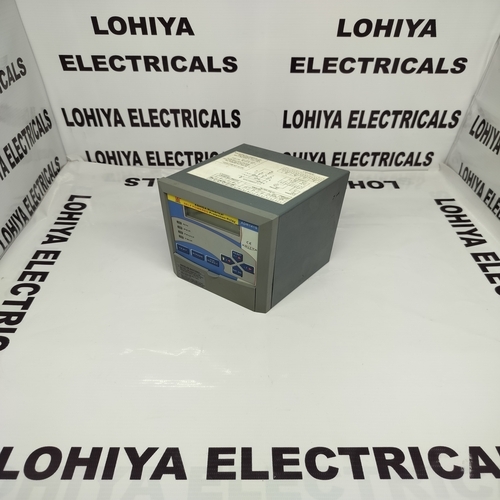

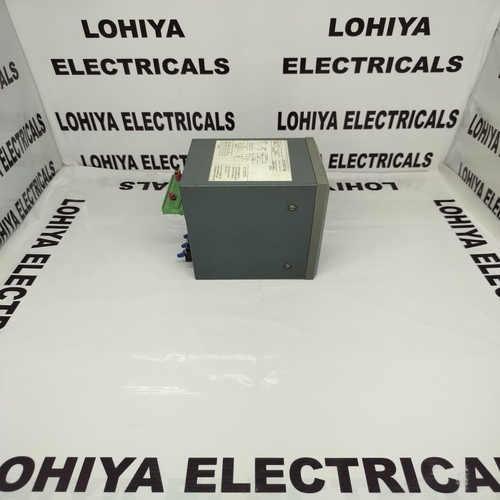

ASHIDA ELECTRNOICS TADR 141S RELAY

Get a Price/Quote

MOQ : 1 Piece

ASHIDA ELECTRNOICS TADR 141S RELAY Specification

Thickness
Standard Relay Module

Panel Type
Panel Mounting

Rated Insulation Voltage
2kV (rms) for 1 minute

Cooling System
Self Cooling

Operating Voltage
As per rated voltage

Base Material
Engineering Plastic

Current Rating
5A per contact

Connectivity Type
Terminal Screw Type

Rated Operation Voltage
Up to 250V AC/DC

Protection Class
Class I

Control System
Electromechanical

Components
Electromagnetic Coil, Contacts, Spring, LED Indicator (optional)

Features
Compact Design, High Mechanical Life, Reliable Operation, Transparent Cover, Low Power Consumption

Way
4NO + 4NC

Cover Material
Polycarbonate/Flame Retardant Plastic

Rated Current
5A

Protection Level
IP50

Product Type
TADR 141S Auxiliary Relay

Material
High Grade Engineering Plastic and Metal Contacts

Surface Finish
Matte

Standard
IS/IEC 60255

Surface Color
Gray

Rated Voltage
24V DC, 110V DC, 220V DC (Available in other ratings on request)

Frequency (MHz)
50 Hz/60 Hz

Maximum Output Current
5A

Dimension (L*W*H)
70 mm x 35 mm x 110 mm (approx.)

Application
Control and Protection Panels, Switchgear, Substation Automation

IP Rating
IP50

Contact Material
Silver Alloy

Mechanical Life
Over 10 Million Operations

Electrical Life
Over 100,000 Operations

Storage Temperature
-20C to +70C

Accessories
Label Holder, Test Button (Optional)

Ambient Operating Temperature
-10C to +55C

Coil Consumption
Less than 2.5W

Mounting Type
Flush/Plug-in Type

About ASHIDA ELECTRNOICS TADR 141S RELAY

Highlighted among premium industrial relays, the ASHIDA ELECTRONICS TADR 141S RELAY offers first-class performance with valuable features. Its customizable configurations and featured 4NO + 4NC way design meet diverse control needs. Built with silver alloy contacts and high-grade engineering plastics, this relay is engineered for durability-offering over 10 million mechanical and 100,000 electrical operations. With low coil consumption (under 2.5W), reliable electromechanical control, and IP50 protection, it assures the finest safety for control panels, switchgears, and substation automation. Available in various rated voltages and fitted with a customizable modular design, this relay is essential for professional automation.

Competitive Advantages and Application Areas

The ASHIDA ELECTRONICS TADR 141S RELAY stands out for its valuable, compact design and highlighted high mechanical life. Ideal for control and protection panels, switchgear, and substation automation systems, it provides robust performance across diverse applications. Its IP50 protection level and flush/plug-in mounting make it adaptable for varied surfaces, ensuring consistent reliability in challenging industrial environments. Customizable rated voltages and featured accessories cater to specific operational requirements, enhancing its application scope throughout the industry.

Packaging, Delivery, and Market Placement

Each relay is securely packaged using industry-standard materials, ensuring protection during drop-off and reducing transit damage. Shipped with care, the product's packaging maintains the relay's market value until installation. ASHIDA relays are distributed across India, serving the main domestic markets with prompt delivery times to keep your projects on schedule. With a focus on reliability and timely drop-offs, the delivery process supports both urgent and routine orders, enhancing customer satisfaction.

FAQ's of ASHIDA ELECTRNOICS TADR 141S RELAY:

Q: How does the ASHIDA ELECTRONICS TADR 141S RELAY ensure reliable operation?

A: The relay is engineered with a first-class electromechanical control system, high-grade materials, and silver alloy contacts, ensuring over 10 million mechanical operations for consistent and reliable service.

Q: What customization options are available for this relay model?

A: ASHIDA ELECTRONICS TADR 141S RELAY can be customized by rated voltage and contact configurations to suit specific operational requirements, with additional accessories like test buttons and LED indicators available on request.

Q: Where is this relay typically used?

A: This relay is widely used in control and protection panels, switchgear, and substation automation, making it ideal for industrial environments requiring precise and durable switching solutions.

Q: When should the relay be considered for replacement?

A: While the relay boasts exceptional life expectancy, it is advisable to consider replacement after exceeding 100,000 electrical operations for optimal system performance.

Q: What are the benefits of the relay's IP50 protection rating?

A: An IP50 rating ensures the relay is protected from dust ingress, enhancing its longevity and reliability in harsh industrial settings.

Q: How is the ASHIDA relay shipped and how does it protect its market value?

A: Each relay is shipped using protective packaging, which helps preserve its market value by preventing damage during transportation and maintaining quality until installation.
