Genius Terminal Assembly

Get a Price/Quote

Genius Terminal Assembly Specification

Rated Insulation Voltage
1000V

Features
Flame Retardant, Excellent Insulation, Easy Installation

Connectivity Type
Screw Type Terminal

Rated Operation Voltage
800V

Protection Level
IP20

Operating Voltage
Up to 800V

Current Rating
32A

Base Material
Engineering Thermoplastic

Cooling System
Natural Air

Control System
Manual/Electrical

Cover Material
Polycarbonate

Components
Genius Terminal Assembly

Thickness
Standard, 2.5 mm

Rated Current
32A

Protection Class
Class II

Way
2 Way / Multi Way options

Panel Type
Modular Panel Compatible

Product Type
Genius Terminal Assembly

Material
High-grade Engineering Plastic

Surface Finish
Smooth Matte

Standard
IEC/EN 60947-7-1

Surface Color
Grey

Rated Voltage
800V

Maximum Output Current
32A

Dimension (L*W*H)
Varies (e.g. 70 x 50 x 35 mm)

Application
Electrical Control Panel, Switchboards, Automation Panels

IP Rating
IP20

Wire Size Range
0.5mm² to 6mm²

Mechanical Endurance
>10,000 Operations

Operating Temperature Range
-25°C to +70°C

Flammability Class
UL94 V2

Wire Entry
Top/Bottom

Marking
Laser Etched/Printed

Mounting Type
DIN Rail Mounting

About Genius Terminal Assembly

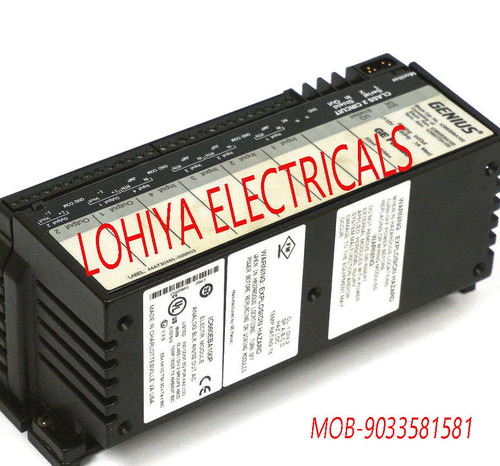

GE FANUC GENIUS IC660EBA103SCC

Text-to-speech function is limited to 200 characters

Options : History : Feedback : Donate

Reliable and Versatile Electrical Connectivity

Designed for flexible integration, the Genius Terminal Assembly fits a wide wire size range, supports multi-way connections, and is engineered with top/ bottom wire entries for streamlined installations. Its 2.5mm standard thickness and compatibility with modular panels make it a dependable choice for diverse industrial electrical systems.

Enhanced Safety and Durability

Manufactured from high-grade engineering plastics and featuring a flame-retardant UL94 V2 rating, the assembly maintains safety in demanding conditions. The IP20 protection level guards against accidental contact, while excellent insulation and a Class II protection class ensure reliable operation under high voltage applications.

Effortless Mounting and Marking Precision

The assemblys DIN rail mounting supports rapid, tool-free set-up, and its smooth matte surface, coupled with laser-etched or printed markings, guarantees long-term readability and maintenance efficiency. Its engineering thermoplastic base and polycarbonate cover contribute to mechanical and operational longevity.

FAQs of Genius Terminal Assembly:

Q: How is the Genius Terminal Assembly installed in electrical panels?

A: The Genius Terminal Assembly mounts easily onto standard DIN rails, which are commonly found in electrical control, automation, and switch panels. Its modular design simplifies installation, allowing for efficient integration into new or existing systems.

Q: What is the operational temperature range of this terminal assembly?

A: This unit operates reliably within a temperature spectrum of -25C to +70C, making it suitable for environments with variable climate conditions without compromising on performance.

Q: Where can the Genius Terminal Assembly be used effectively?

A: It is ideally employed in electrical control panels, switchboards, and automation panels across industrial, commercial, and infrastructure projects, supporting a wide range of voltages and current requirements up to 800V and 32A respectively.

Q: What is the process for connecting wires to the Genius Terminal Assembly?

A: Wires ranging from 0.5mm to 6mm are inserted through top or bottom entries and securely fastened using the reliable screw-type connectivity system, ensuring robust electrical contact and reducing installation errors.

Q: What benefits does the flame-retardant, high-grade engineering plastic construction offer?

A: The assemblys use of UL94 V2 flame-retardant, engineering plastics offers enhanced fire safety, durability under mechanical stress, and excellent electrical insulation, prolonging the life and reliability of electrical installations.

Q: How does the terminal assembly support identification and maintenance?

A: Clear laser-etched or printed marking on each terminal ensures easy identification for maintenance personnel, aiding in faster troubleshooting, reduced downtime, and safer operational procedures.
