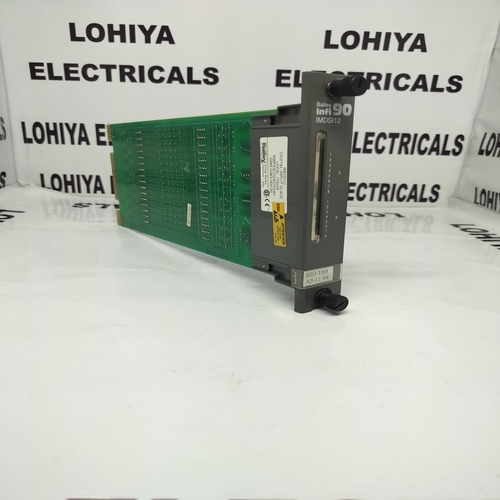

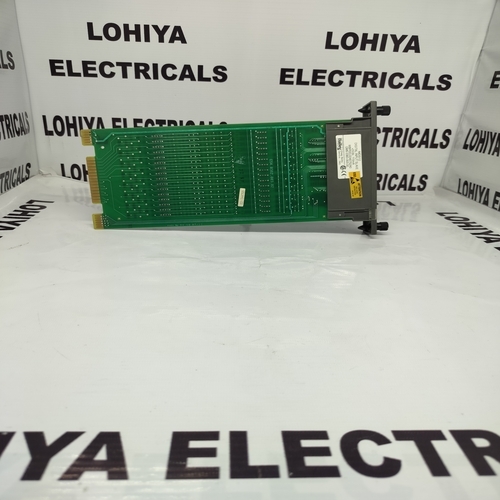

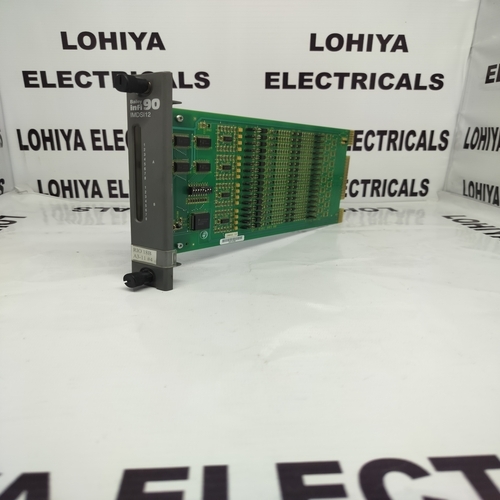

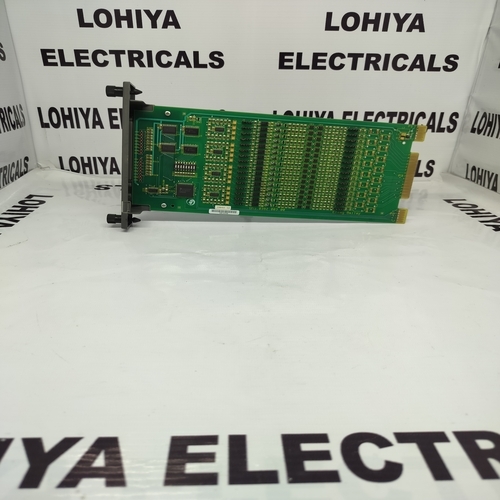

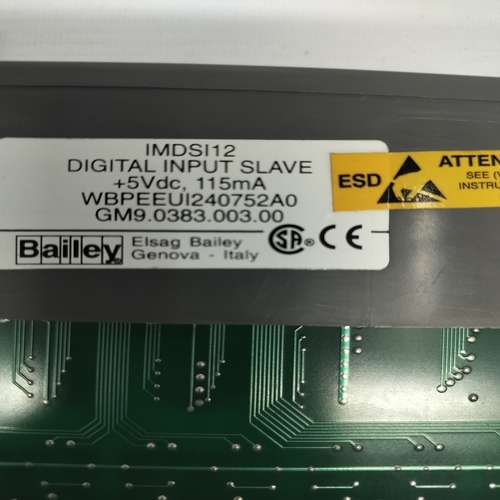

BAILEY IMDSI12 INPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

BAILEY IMDSI12 INPUT MODULE Specification

Application
Process Automation, DCS

Phase
Single Phase

Connector Type
Removable Terminal Blocks

Features
12 Discrete Inputs, Field Replaceable, LED Status Indicators

Working Temperature
0C to +60C

Operating Temperature
0C to +60C

Power Supply
24V DC

Cooling Method
Convection

Output Type
Digital

Product Type
Input Module

Input Voltage
24V DC (Nominal)

Voltage Protection
Overvoltage and Reverse Polarity Protection

Material
Industrial Grade Components

Storage Temperature
-40C to +85C

Weight
Approx. 300g

Status Indication
Individual Channel LEDs

Compatibility
INFI 90 Open DCS System

Mounting Type
Rack Mount

Module Dimensions
Approx. 190 mm x 25 mm x 94 mm

Number of Inputs
12 Channels

Model
IMDSI12

Input Impedance
2.7 k (Typical)

Isolation Voltage
1500V AC (Field to Logic)

Input Signal Level
15V to 30V DC

Response Time
< 10 ms

About BAILEY IMDSI12 INPUT MODULE

The BAILEY IMDSI12 INPUT MODULE stands as a preeminent choice for advanced process automation within DCS environments. With its eminent 12-channel input capability, this must-have module seamlessly integrates into the INFI 90 Open DCS System, ensuring optimal signal integrity through a robust 1500V AC isolation voltage. Personalise your industrial setup with inestimable flexibility, benefiting from rack mount design, field-replaceable units, and individual LED status indicators. Take advantage of its overvoltage and reverse polarity protection, industrial-grade durability, and rapid <10ms response time for reliable, enduring performance.

Unmatched Versatility for Industrial Automation

The BAILEY IMDSI12 INPUT MODULE is ideal for applications in process automation and distributed control systems (DCS). Designed for integration in industrial environments, it is used for monitoring and managing digital signals across 12 discrete input channels. Its advantage lies in offering precise, real-time signal status through individual LEDs, making it indispensable for efficient plant operation and easy maintenance across diverse industries such as manufacturing, utilities, and processing plants.

Reliable Supply and Trusted Delivery

We offer an assured supply ability for the BAILEY IMDSI12 INPUT MODULE, supporting urgent market value needs across India. Each unit is carefully packaged with industrial-grade protection, guaranteeing operational readiness when handed over to clients. Payment terms are flexible, catering to the requirements of both traders and end-users. Our commitment to quality packaging and swift delivery ensures you can take ownership and benefit from seamless integration into your control infrastructure.

FAQ's of BAILEY IMDSI12 INPUT MODULE:

Q: How does the BAILEY IMDSI12 INPUT MODULE ensure operational safety?

A: The BAILEY IMDSI12 INPUT MODULE provides operational safety through overvoltage and reverse polarity protection, 1500V AC isolation, and robust industrial-grade materials, safeguarding both the module and connected systems.

Q: What benefits do the individual channel LED status indicators offer?

A: Individual channel LED status indicators allow users to quickly assess the operational state of each input channel, enabling rapid troubleshooting and efficient maintenance during process automation.

Q: Where can the BAILEY IMDSI12 INPUT MODULE be utilized?

A: This input module is eminently suited for integration within process automation sectors, including manufacturing plants, utilities, and other industries using INFI 90 Open DCS systems.

Q: When should you consider replacing the input module?

A: You should consider replacing the input module if any channel consistently fails to respond, LEDs indicate persistent faults, or during scheduled preventive maintenance to ensure optimal system performance.

Q: What is the process for installing the BAILEY IMDSI12 INPUT MODULE?

A: The installation process involves rack-mounting the module, connecting input signals via removable terminal blocks, and confirming operational status using the built-in LEDs. The module can be replaced in the field, minimizing system downtime.

Q: How does the supply and delivery procedure ensure reliability?

A: Each module is offered with careful packaging designed to withstand industrial handling. Upon completion of order and payment, the module is handed over promptly, ensuring it arrives in excellent working condition ready for immediate integration.
