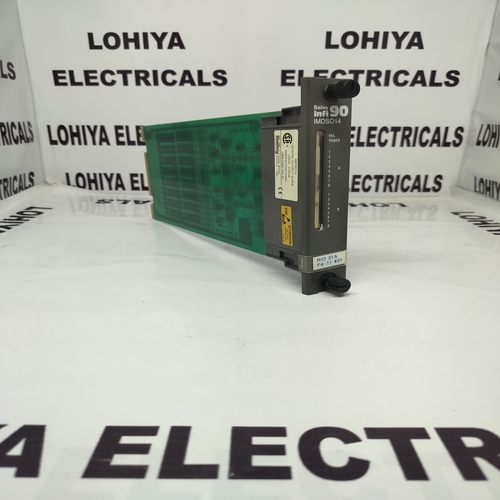

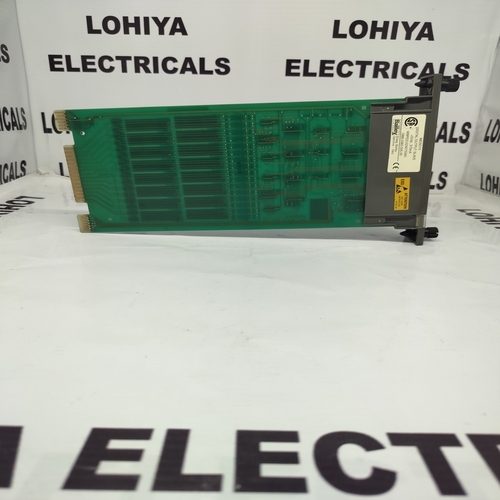

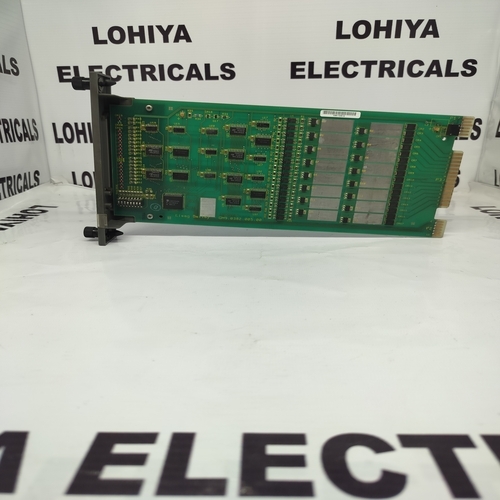

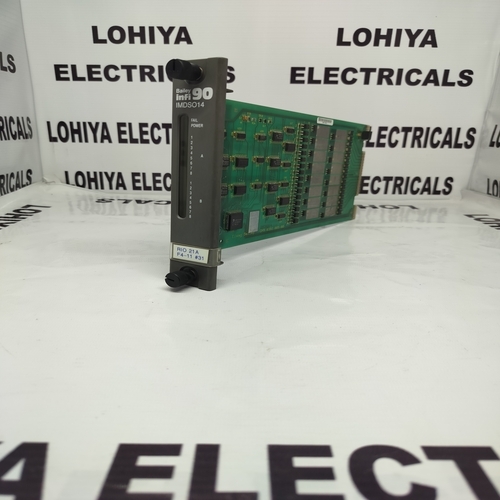

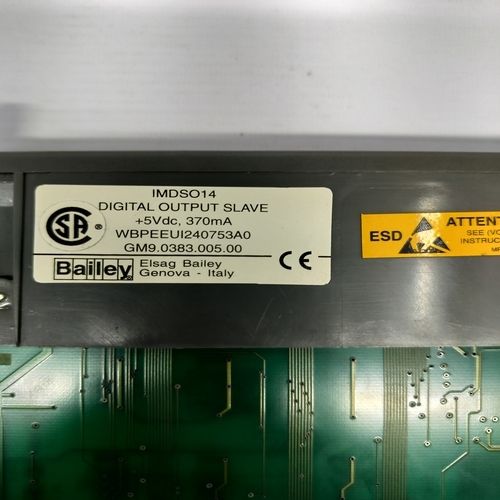

BAILEY IMDSO14 OUTPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

BAILEY IMDSO14 OUTPUT MODULE Specification

Application
Industrial Automation, Process Control

Output Type
Digital Output

Cooling Method
Natural Air Convection

Output Current
0.5 A per Channel (Max)

Noise Level
Low, EMI Shielded

Phase
Single Phase Circuitry

Working Temperature
0C to 60C

Connector Type
Removable Screw Terminal

Operating Temperature
0C to 60C

Power Factor
N/A (Digital Signals)

Rated Power
--

Features
Hot-Swappable, Diagnostic LEDs, Field Replaceable

Current Range
Up to 0.5 A per Channel

Rated Current
--

Power Supply
Backplane Supplied

Product Type
Output Module

Output Power
14 Channels, Digital Output

Output Frequency
DC (Digital Signal)

Input Voltage
24 VDC (Typical), Backplane Powered

Voltage Protection
Optically Isolated Outputs

Efficiency
High Reliability Industrial Grade

Material
PCB, Plastic Housing

Line Regulation
N/A (Digital Output)

Storage Temperature
-40C to +85C

Weight
Approx. 300 g

Mounting Type
DIN Rail Mountable or Modular Rack

Channels
14 Digital Outputs

Response Time
<1 ms Switching

Protection
Short Circuit & Overload Protected

Module Model
IMDSO14

Compatibility
Bailey INFI 90 System / DCS

Module Dimension
130 x 33 x 143 mm

Failure Diagnostics
Self-diagnostics Capable

Isolation Voltage
1500 V RMS Channel-to-Logic Isolation

Status Indication
Individual Channel LEDs

BAILEY IMDSO14 OUTPUT MODULE About

Pick Yours: The BAILEY IMDSO14 OUTPUT MODULE is a top-ranking, highly reliable solution engineered for industrial automation and process control tasks. With 14 remarkable digital outputs and a response time of less than 1 ms, this module is the preferred choice for fast, efficient operations. Designed for compatibility with Bailey INFI 90 System/DCS, its field-replaceable and hot-swappable features, exquisite isolation voltage (1500 V RMS), and individual channel status LEDs offer enhanced monitoring and protection. Ending Soon-add this popular, industrial-grade module to your lineup for flawless productivity!

Application, Features, and Usage of BAILEY IMDSO14 OUTPUT MODULE

The BAILEY IMDSO14 OUTPUT MODULE excels in industrial automation and process control environments. Its remarkable application method involves DIN rail or modular rack mounting, enabling flexible integration. Key features include 14 digital output channels, individual diagnostic LEDs for channel status, and robust protection against overloads and short circuits. Widely used in factories and process plants, this module is designed for seamless compatibility with the Bailey INFI 90 system, providing reliable, high-speed control for your critical automation processes.

Delivery Time, Export Market, and Supply Ability of BAILEY IMDSO14 OUTPUT MODULE

With streamlined logistics and efficient freight handling, the BAILEY IMDSO14 OUTPUT MODULE promises prompt delivery once your asking price is finalized. The module is actively exported to key markets worldwide, including Asia, Europe, and the Middle East. Our supply ability remains consistent, ensuring you receive your industrial modules without delays. Our global distribution network ensures reliable transit, so your orders arrive safely and on schedule, ready for installation in any automated or process-controlled environment.

FAQ's of BAILEY IMDSO14 OUTPUT MODULE:

Q: How does the BAILEY IMDSO14 OUTPUT MODULE enhance industrial automation?

A: The BAILEY IMDSO14 OUTPUT MODULE provides rapid response times (<1 ms) and precise digital outputs, making it ideal for fast and reliable industrial automation and process control applications.

Q: What features make this module highly reliable for process control?

A: Key features include channel-to-logic isolation at 1500 V RMS, EMI shielding, short circuit and overload protection, individual diagnostic LEDs, and built-in self-diagnostics for dependable operation.

Q: When should I use the BAILEY IMDSO14 OUTPUT MODULE?

A: This module is best used in environments requiring multiple digital outputs, high-speed switching, and robust safety features, such as manufacturing plants and automated production lines.

Q: Where can the BAILEY IMDSO14 be mounted?

A: The output module can be conveniently DIN rail mounted or fitted in a modular rack, allowing flexibility in installation within various industrial setups.

Q: What is the process for replacing or maintaining this module?

A: The module is hot-swappable and field replaceable, meaning maintenance can be performed without system shutdown, minimizing operational downtime.

Q: What are the main benefits of using this module in the Bailey INFI 90 system?

A: It ensures seamless integration, enhanced reliability, reduced maintenance time, advanced diagnostics, and efficient process control for high-performance industrial environments.
