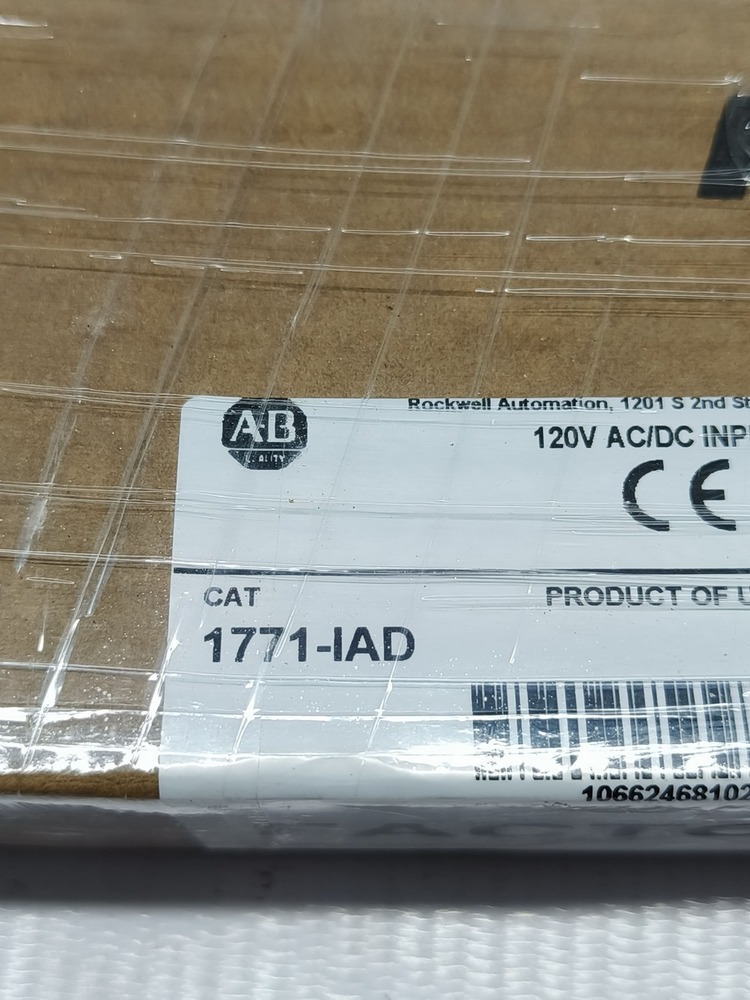

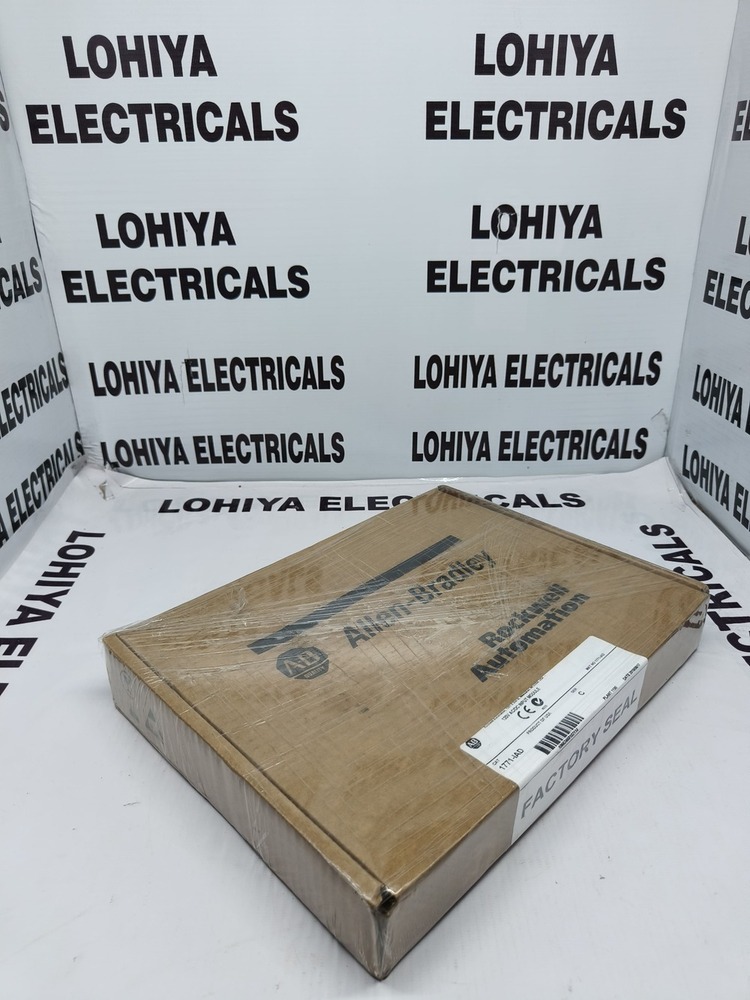

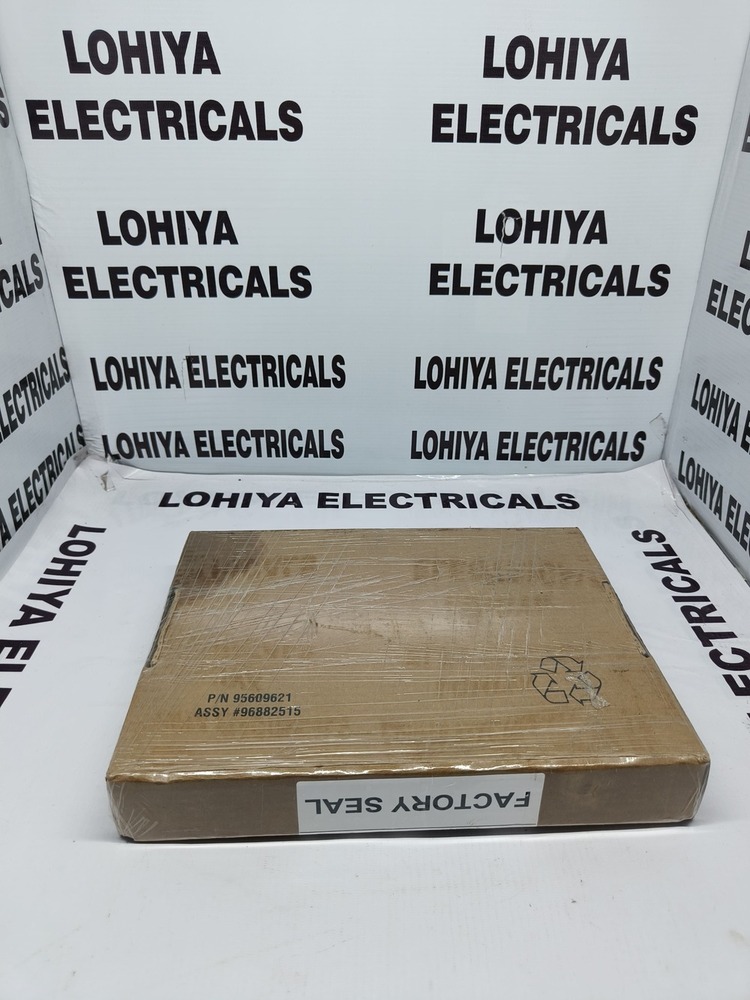

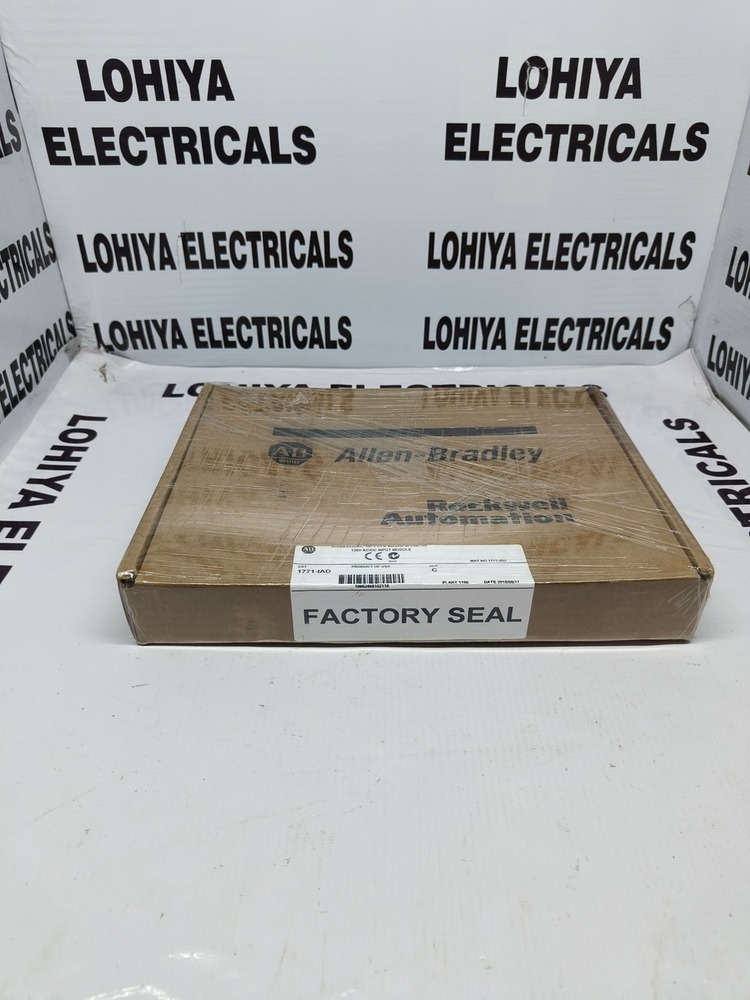

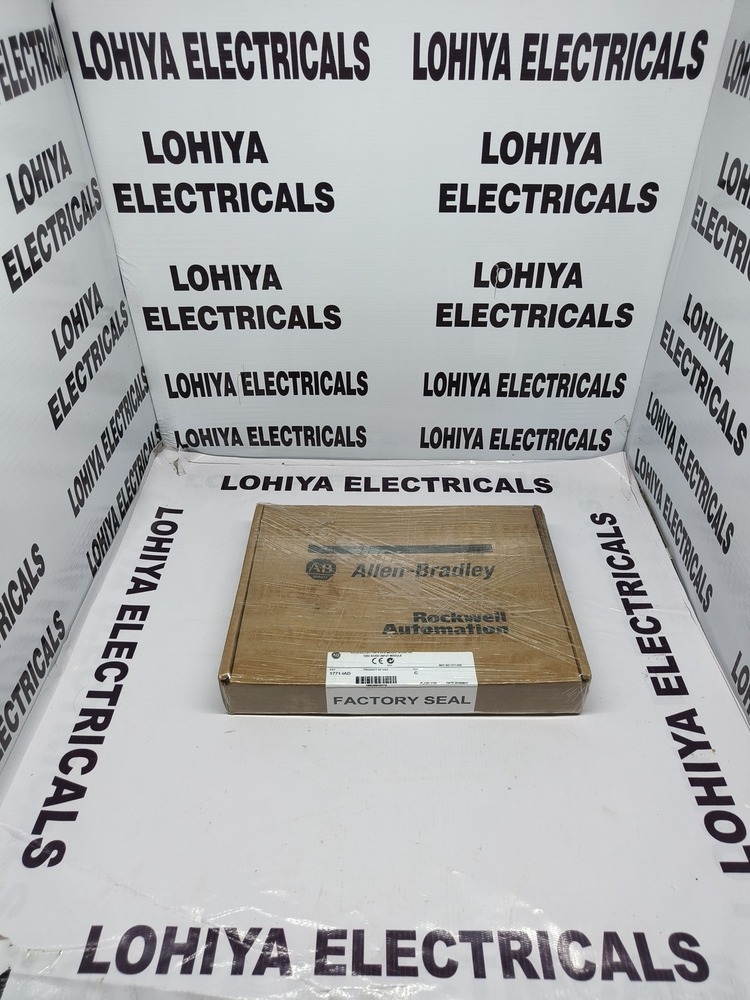

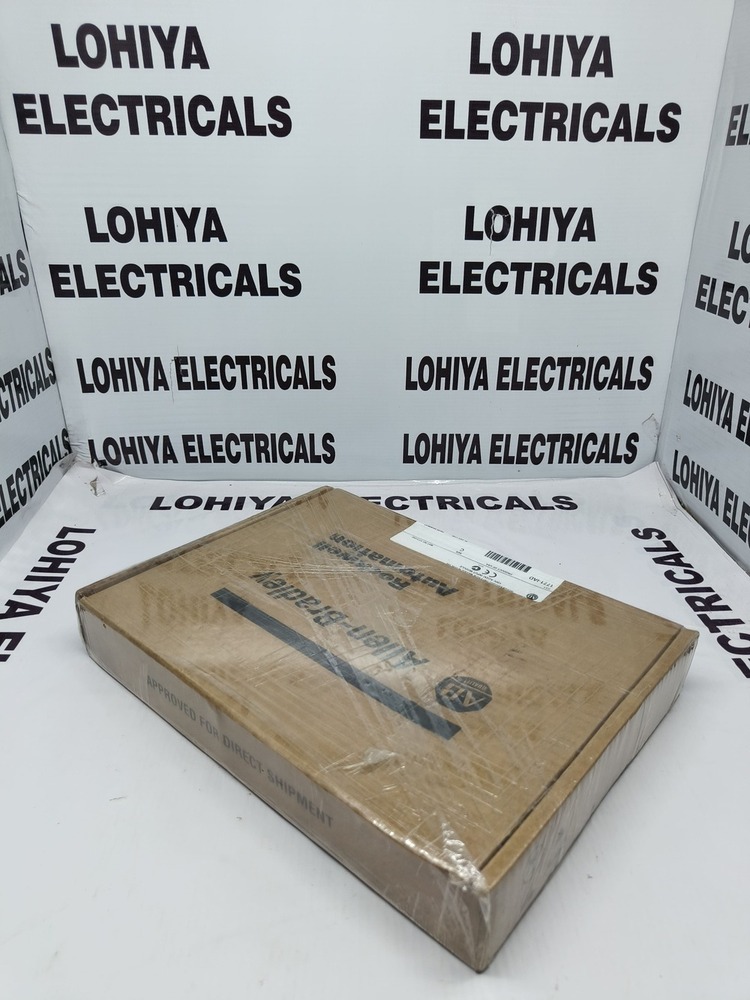

ALLEN BRADLY 1771-IAD INPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLY 1771-IAD INPUT MODULE Specification

Components
PCBs, Terminal Blocks, LED Indicators

Cabinet Material
Not Applicable (Module Only)

Protection Level
NEMA Standard

Rated Insulation Voltage
250V AC

Rated Current
Approx. 10mA per input

Rated Operation Voltage
120V AC

Panel Type
Backplane Mount

Cooling System
Natural Air Cooling

Base Material
Reinforced PCB

Control System
Allen Bradley PLC

Current Rating
Approx. 10mA per channel

Operating Voltage
120V AC

Features
16 Channel, Optical Isolation, Status LEDs

Connectivity Type
Screw Terminal

Cover Material
Sheet Metal/Plastic Housing

Thickness
Standard Module

Protection Class
Class I

Way
Single

Product Type
Digital Input Module

Material
Electronic Components and PCB

Surface Finish
Solder Masked

Standard
Allen Bradley/AB Quality Standards

Surface Color
Standard Green PCB

Rated Voltage
120V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
N/A (Input Module)

Dimension (L*W*H)
Approx. 7 x 2 x 6 (178mm x 51mm x 152mm)

Application
PLC Input Interface

IP Rating
IP20

Display Type
Status LED

Humidity
5% to 95% non-condensing

Terminal Type
Screw Clamp

Storage Temperature
-40C to 85C (-40F to 185F)

Mounting Type
Rack/Chassis Mount

Input Voltage Range
79-138V AC

Operating Temperature
0C to 60C (32F to 140F)

Channel Type
16 Point

Isolation Voltage
1500V RMS (Channel to Backplane)

Wire Size
12-18 AWG

Slot Width
1 Slot

Number of Inputs
16 (Each individually isolated)

Module Series
1771 Series

Input Type
Digital AC Input

Input Current per Channel
8.4 mA @ 120V AC

About ALLEN BRADLY 1771-IAD INPUT MODULE

Unlock seamless control and take the spotlight in industrial automation with the Allen Bradley 1771-IAD Input Module. A laureate among input modules, this formidable device offers 16 individually isolated digital AC inputs, delivering robust performance for your PLC systems. Designed for rack/chassis mount, it boasts superior optical isolation, status LEDs, and reliable screw clamp terminals. Engineered to excel, it meets stringent Allen Bradley quality standards. Grab yours and harness reliability and precision - a best choice for discerning suppliers and traders in India.

Versatile Input Module for Critical Industrial Applications

The ALLEN BRADLY 1771-IAD INPUT MODULE is engineered for digital AC input tasks in various industrial PLC environments. With 16-point channel capacity, it seamlessly integrates with Allen Bradley control systems. Its principal usage lies in process automation, monitoring, and interface where high reliability is indispensable. Key features like optical isolation, status LED indicators, and robust design make it the best pick for both new installations and upgrades, enhancing operational efficiency across sectors.

Swift Delivery and Comprehensive Export Coverage

Dispatched promptly via premium transport services, the Allen Bradley 1771-IAD Input Module is available for quick delivery to customers. Indian and international suppliers benefit from seamless logistics and trusted shipping partners. Export markets include Asia, the Middle East, and other regions. A flexible sample policy enables prospective buyers to evaluate product quality before bulk orders, ensuring customer satisfaction and establishing long-term market trust.

FAQ's of ALLEN BRADLY 1771-IAD INPUT MODULE:

Q: How does the Allen Bradley 1771-IAD Input Module benefit industrial automation systems?

A: The module enhances industrial automation by providing reliable, individually isolated 16-point digital AC inputs for precise PLC control and monitoring, boosting overall system performance and safety.

Q: What are the main features of the 1771-IAD Input Module?

A: The primary features include 16 isolated digital AC inputs, optical isolation, status LED indicators, screw clamp terminals, and a rack/chassis mount design, all engineered for robust and secure PLC interfacing.

Q: Where can you use the 1771-IAD Module in industrial environments?

A: It is ideal for process automation, monitoring, and interface operations in manufacturing plants, assembly lines, and PLC-based control systems requiring secure and efficient input handling.

Q: How is the delivery and sample policy managed for this input module?

A: Delivery is managed through premium transport services for prompt dispatch. Prospective buyers can request samples for evaluation, and shipping is available across key international markets.

Q: What is the recommended process for connecting the input module to a PLC system?

A: Connect using the screw clamp terminals and ensure each input channel is appropriately wired. The module is designed for backplane mounting within Allen Bradley 1771-series racks for optimal integration and operation.
