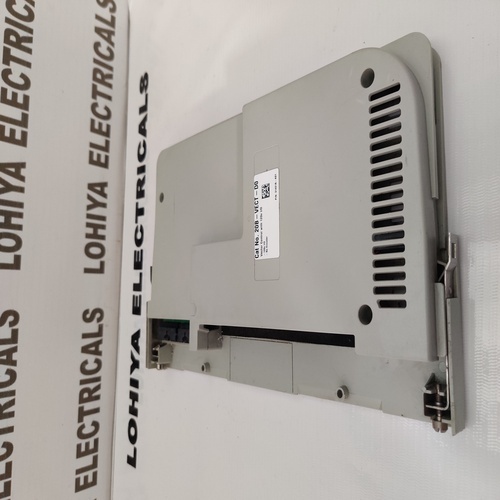

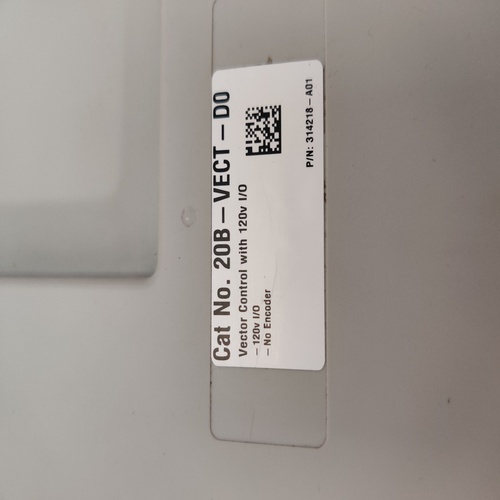

ALLEN BRADLEY 20B-VECT-D0 POWERFLEX 700 VECTOR CASSETTE PCB CARD

Send Inquiry

Request To Call Back

ALLEN BRADLEY 20B-VECT-D0 POWERFLEX 700 VECTOR CASSETTE PCB CARD

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 20B-VECT-D0 POWERFLEX 700 VECTOR CASSETTE PCB CARD Specification

Panel Type
Control Panel Mount, Expansion Module

Rated Current
10A

Cooling System
None (PCB passive)

Control System
PowerFlex 700 AC Drive

Components
High quality ICs, connectors, passive components

Protection Class
Class II

Rated Operation Voltage
600V AC

Base Material
FR4 Epoxy

Features
Enables vector control mode, plug-and-play installation, enhanced performance

Rated Insulation Voltage
630V

Way
Single

Connectivity Type
Plug-in PCB Interface

Current Rating
10A

Protection Level
PCB conformal coating

Thickness
1.6 mm (PCB)

Operating Voltage
480V AC

Product Type
Vector Cassette PCB Card

Material
Fiberglass PCB, electronic grade components

Surface Finish
Solder mask, silk screen

Standard
IEC

Surface Color
Green

Rated Voltage
600V

Frequency (MHz)
50/60 Hz

Maximum Output Current
10A

Dimension (L*W*H)
Approx. 105 mm x 45 mm x 12 mm

Application
Industrial automation, motor control, AC drive expansion

IP Rating
IP00 (PCB only)

Model Number
20B-VECT-D0

Storage Temperature
-40°C to +85°C

Weight
Approx. 80 grams

Part Category
Expansion Card

Output Type
PWM signals (to drive inverter)

Mounting Type
Direct plug-in

Service Life
Over 100,000 hours

Operating Temperature Range
0°C to 60°C

Compatible Platforms
Allen Bradley PowerFlex 700 Series

Humidity Tolerance
5% - 95% non-condensing

Reliability
Industrial grade

Input Type
Digital vector control signal

About ALLEN BRADLEY 20B-VECT-D0 POWERFLEX 700 VECTOR CASSETTE PCB CARD

Order the spectacular ALLEN BRADLEY 20B-VECT-D0 POWERFLEX 700 VECTOR CASSETTE PCB CARD to experience towering performance in industrial automation and motor control. Now available at a grand Price Cut, this expansion module is meticulously crafted for Allen Bradley PowerFlex 700 Series, supporting direct plug-in mounting and industrial-grade reliability over 100,000 hours. Robust features include high-rated voltage (600V), maximum output current (10A), and state-of-the-art vector control. Purchase today for plug-and-play installation and enhanced drive capabilities, backed by supplier and trader expertise in India. Seize your opportunity to elevate your control systems with this grand offering.

Expert Application & Seamless Integration

The ALLEN BRADLEY 20B-VECT-D0 POWERFLEX 700 VECTOR CASSETTE PCB CARD is specifically designed for industrial automation, motor control, and AC drive expansion. Its direct plug-in interface streamlines installation into the PowerFlex 700 Series, providing instant vector control mode enablement. The cards surface is finished with a solder mask and silk screen, delivering robust durability against industrial conditions. Apply it within control panels where towering performance and long-term reliability are critical for process optimization.

FOB Port Details, Shipping, and Supply Assurance

ALLEN BRADLEY 20B-VECT-D0 is dispatched efficiently from prime FOB ports for rapid service to the market. Benefit from secure shipping, ensuring each PCB card arrives intact and ready for immediate installation. With a dependable supply ability, orders are fulfilled swiftly to meet client demands. The cards substantial market value, along with timely delivery and first-rate packaging, accentuate the grand service quality provided by trusted suppliers and traders throughout India.

FAQs of ALLEN BRADLEY 20B-VECT-D0 POWERFLEX 700 VECTOR CASSETTE PCB CARD:

Q: How does the ALLEN BRADLEY 20B-VECT-D0 enable vector control in motor drives?

A: The 20B-VECT-D0 PCB Card plugs directly into PowerFlex 700 Series drives, allowing for digital vector control signal processing and outputting precise PWM signals to drive inverters, thus enabling superior vector control functionality.

Q: What is the process for installing the VECTOR CASSETTE PCB Card?

A: Installation is efficient due to the direct plug-in design. Simply connect the card to the compatible slot on the PowerFlex 700 AC Drive, ensuring full contact, and follow standard safety protocols for mounting electronic components.

Q: Where can this PCB card be typically used within an industrial setting?

A: The card is intended for industrial automation environments, particularly in control panel applications involving motor control, AC drive expansion, and process optimization in manufacturing and production facilities.

Q: What are the surface treatments applied to the PCB card for protection?

A: The PCB card features a tough solder mask and silk screen finish, along with a conformal coating for PCB-level protection, providing resilience against humidity and environmental contaminants.

Q: What benefits does this expansion card offer to users in terms of reliability?

A: Engineered to industrial standards, the card boasts a service life exceeding 100,000 hours, delivers consistent performance under wide-ranging conditions, and uses top-tier electronic grade components for enduring, reliable operation.
