ALLEN BRADLEY 1336F-MCB-SP1D MAIN CONTROL PCB CARD

Send Inquiry

Request To Call Back

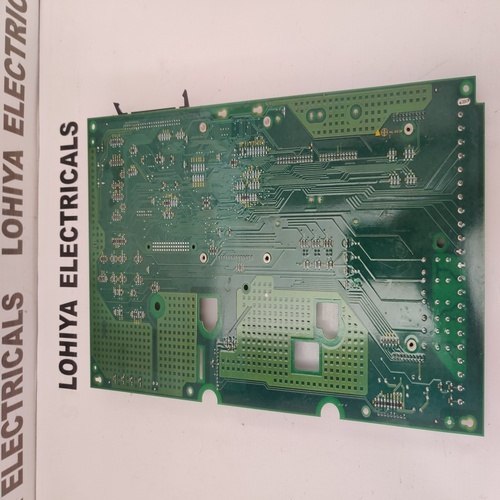

ALLEN BRADLEY 1336F-MCB-SP1D MAIN CONTROL PCB CARD

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 1336F-MCB-SP1D MAIN CONTROL PCB CARD Specification

Components
ICs, resistors, capacitors, connectors, relays, terminal blocks

Cover Material
None (bare PCB)

Current Rating
1.5A

Base Material
FR4 Epoxy Resin

Rated Current
1.5A (max, per output)

Cabinet Material
Not applicable (PCB card only)

Protection Level
Conformal coated against dust and moisture

Control System
Microprocessor-based

Operating Voltage
24V DC

Rated Operation Voltage
24V DC

Protection Class
Class 1

Cooling System
Passive/ambient ventilation

Connectivity Type
Edge connectors, terminal blocks

Features
High reliability, original Allen Bradley, integrated control circuitry, quick replacement design

Thickness
1.6 mm (typical)

Rated Insulation Voltage
250V AC/DC (PCB)

Product Type
Main Control PCB Card

Material
High-grade PCB (Printed Circuit Board), copper traces, FR4 substrate

Surface Finish
Protective conformal coating

Standard
OEM Allen Bradley 1336F Series

Surface Color
Green

Rated Voltage
24V DC (control circuit)

Maximum Output Current
1.5A (dependent on circuit design)

Dimension (L*W*H)
Approx. 240mm x 120mm x 25mm

Application
1336F Series AC Frequency Drives, industrial automation

IP Rating
IP00

Display Type
Not included (main board only)

Replacement
Field-replaceable spare

Mounting Type
Screw mount holes on PCB

Storage Temperature Range
-20°C to +80°C

ESD Protection
Integrated on-board

Series
1336F

Manufacturer Part Number
1336F-MCB-SP1D

Operating Temperature Range
0°C to +60°C

Compatible Models
Allen Bradley 1336F AC Drives

Signal Type
Digital/Analog interface supported

PCB Layer Count
Multi-layer

Weight
Approx. 250g

RoHS Compliance
Yes

About ALLEN BRADLEY 1336F-MCB-SP1D MAIN CONTROL PCB CARD

Introducing the venerable ALLEN BRADLEY 1336F-MCB-SP1D MAIN CONTROL PCB CARDa resplendent solution for your industrial automation needs. This best-seller is now available at an unprecedented markdown, making it a hot deal for AC frequency drive maintenance and upgrades. Crafted from high-grade FR4 epoxy resin, this multi-layer control card features advanced digital/analog interfaces, integrated ESD protection, and OEM-level reliability. Field-replaceable and easy to install with screw mount holes, it ensures efficient operation from 0C to +60C. Secure your original Allen Bradley quality today!

Versatile Applications & Surface Compatibility

The ALLEN BRADLEY 1336F-MCB-SP1D MAIN CONTROL PCB CARD shines in controlling 1336F Series AC Frequency Drives within industrial automation environments. Its application media involves digital and analog signals, while its robust FR4 substrate ensures compatibility across various mounting surfaces. The advantage lies in its quick replacement design, reliable microprocessor-based control, and OEM-standard qualitydelivering sustained performance in demanding industrial settings.

FOB Port, Packaging & Sample Policy Insights

Order processing for the ALLEN BRADLEY 1336F-MCB-SP1D PCB CARD is efficiently managed via designated FOB Indian ports, optimizing procurement expenditure. Each genuine PCB card is securely packaged to withstand handling and transit. Subject to supplier and trader policies, sample requests may be considered, with rates and associated costs transparently communicated before confirming your order. This ensures informed decisions and seamless transaction experiences for all customers.

FAQs of ALLEN BRADLEY 1336F-MCB-SP1D MAIN CONTROL PCB CARD:

Q: How do I install the ALLEN BRADLEY 1336F-MCB-SP1D MAIN CONTROL PCB CARD?

A: Installation is straightforward with screw mount holes provided on the PCB, ensuring secure placement in compatible Allen Bradley 1336F AC Drives. Always follow manufacturer guidelines for proper mounting and connection.

Q: What advantages does the 1336F-MCB-SP1D PCB CARD offer in industrial automation?

A: It provides high reliability, integrated on-board ESD protection, and supports both digital and analog signals, making it ideal for robust AC frequency drive control in industrial environments.

Q: When should I consider replacing the main control PCB card in my 1336F drive?

A: Replacement is recommended whenever the existing PCB exhibits malfunctions, faults, or loss of control. The 1336F-MCB-SP1D is field-replaceable and designed for quick, efficient swap-outs.

Q: Where can I use the ALLEN BRADLEY 1336F-MCB-SP1D PCB CARD?

A: This PCB card is specifically engineered for Allen Bradley 1336F Series AC Drives and is ideal for applications in industrial automation where reliable control circuitry is essential.

Q: What is the order process and packaging detail for this PCB CARD?

A: Orders are processed through designated Indian FOB ports. The PCB is carefully packaged to prevent damage. For sample policy guidelines and rate inquiries, connect with the supplier for comprehensive information.

Q: How does the conformal coating benefit the PCB CARD?

A: The protective conformal coating shields the PCB from dust and moisture, enhancing operational lifespan and maintaining consistent performance in harsh environments.
