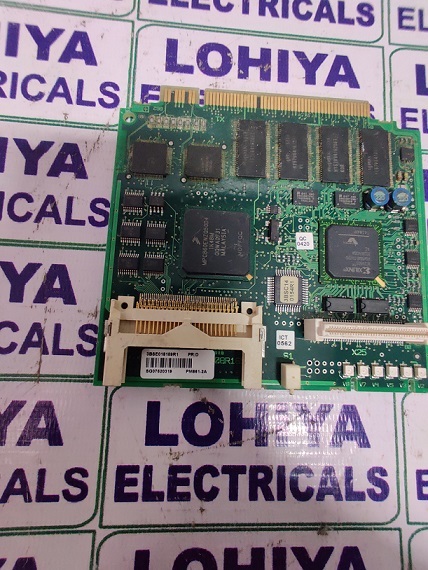

ABB PCB CARD 3BSE018159R1

Get a Price/Quote

ABB PCB CARD 3BSE018159R1 Specification

Base Material
FR4 Glass Epoxy

Rated Current
2A

Thickness
1.6 mm

Way
4-Layer

Control System
AC 800M Controller/ABB DCS

Panel Type
PCB Board

Protection Class
Class II

Features
High reliability, RoHS Compliant, Modular, Easy Integration

Connectivity Type
Edge Connectors, Pin Headers

Components
Integrated Circuits, Resistors, Capacitors, Signal Relays

Current Rating
2A

Cabinet Material
Not Applicable (PCB Only)

Rated Operation Voltage
24 V DC

Rated Insulation Voltage
250 V

Operating Voltage
24 V DC

Protection Level
IP20

Cooling System
Convection Air Cooled

Product Type
PCB Card / Control Board Module

Material
High-grade FR4 (Epoxy Resin + Glass Fiber)

Surface Finish
HASL (Hot Air Solder Leveling)

Standard
ABB Original OEM

Surface Color
Green

Rated Voltage
24 V DC

Frequency (MHz)
50/60

Maximum Output Current
2A

Dimension (L*W*H)
250 mm x 130 mm x 20 mm

Application
Industrial Automation, DCS Systems (ABB AC800M Series)

IP Rating
IP20

Operating Temperature Range
0°C to +60°C

Weight
Approx. 150g

Model Number
3BSE018159R1

Mounting Type
DIN Rail / PCB Mount

Life Cycle Status
Active

Storage Temperature
-20°C to +70°C

ESD Protection
Built-in

Compatible Controllers
ABB AC800M, Freelance DCS

Relative Humidity
10% to 95% Non-Condensing

About ABB PCB CARD 3BSE018159R1

Discover the majestic ABB PCB CARD 3BSE018159R1, a masterpiece engineered for industrial automation and DCS systems. With a classic green surface and robust FR4 epoxy resin glass fiber build, it guarantees reliability and seamless operation between 0C to +60C. Featuring a 4-layer design and built-in ESD protection, this original OEM component integrates effortlessly into ABB AC800M and Freelance DCS controllers. Shop now to enjoy markdown pricing! Buy online for swift delivery and elevate your control system with confidence and genuine quality.

Optimized Usage and Material Excellence

Designed for industrial automation, the ABB PCB CARD 3BSE018159R1 brings remarkable versatility. Crafted from high-grade FR4 epoxy resin and glass fiber, it is built for durability. The board suits direct installation with DIN rail or PCB mounting and is essential for seamless operation in ABB AC800M systems. For optimal results, users should ensure the operating environment fulfills the rated voltage and temperature. Its modular design allows straightforward integration within complex control infrastructures.

Certifications, Packaging, and Logistic Details

As a RoHS-compliant original OEM product, the ABB PCB CARD 3BSE018159R1 meets global standards for safety and efficiency. Orders are packaged with utmost care to prevent damage, ensuring secure arrival. FOB port options are available for streamlined shipping. Enterprises can budget their expenditure effectively, referencing the clear list price. Completing your order with reputable suppliers guarantees prompt order completion and minimal disruption to ongoing industrial processes.

FAQs of ABB PCB CARD 3BSE018159R1:

Q: How can the ABB PCB CARD 3BSE018159R1 be integrated into my industrial control system?

A: This PCB card is modular and fits easily with edge connectors or pin headers into ABB AC800M controllers or Freelance DCS systems, following standard installation processes.

Q: What are the main benefits of choosing the ABB PCB CARD 3BSE018159R1 for automation projects?

A: The card offers high reliability, RoHS compliance, easy integration, and proven compatibility with ABBs AC800M range, making it a dependable choice for complex industrial environments.

Q: When is it advisable to use this PCB card within a DCS system?

A: Use this board when you require robust performance, ESD protection, and seamless integration within new or existing ABB automation infrastructure, especially where dependability is critical.

Q: Where should the 3BSE018159R1 card be installed for optimal performance?

A: Install the card in a cabinet with convection air cooling or designated PCB panels, ensuring compliance with the specified operating environment and IP20 protection demands.

Q: What process should I follow for ordering and receiving the ABB PCB CARD 3BSE018159R1?

A: Simply order online or through an authorized supplier. Packaging is designed for product integrity during transit, and the order is dispatched from designated FOB ports upon completion.
