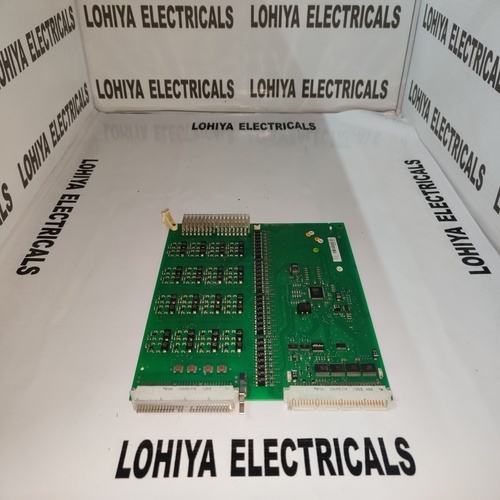

ABB DSDI 120AV1 DIGITAL INPUT BOARD

Get a Price/Quote

MOQ : 1 Piece

ABB DSDI 120AV1 DIGITAL INPUT BOARD Specification

Thickness
1.6 mm

Base Material
FR4 Epoxy Glass

Current Rating
2 mA per Channel

Panel Type
Plug-in Board

Features
16 Channel Input, LED Status Indicators, Robust Signal Isolation

Way
16 Channel Digital Input

Cooling System
Passive

Operating Voltage
24 VDC

Rated Current
Typically 2 mA per Channel

Control System
Distributed Control System (DCS)

Protection Class
Class B

Cover Material
None (Open PCB)

Rated Insulation Voltage
50 V

Protection Level
Conformal Coating on PCB

Components
SMD Resistors, Diodes, Optocouplers

Rated Operation Voltage
24 VDC

Connectivity Type
Terminal Block Connectors

Product Type
DIGITAL INPUT BOARD

Material
High-grade Printed Circuit Board (PCB)

Surface Finish
Lead-free Soldering

Standard
ABB Internal Standard

Surface Color
Green with White Silkscreen Markings

Rated Voltage
24 VDC

Frequency (MHz)
DC - Not Applicable

Maximum Output Current
Not Applicable (Input Board)

Dimension (L*W*H)
120 mm x 65 mm x 18 mm

Application
Industrial Automation and Control

IP Rating
IP20

Response Time
<3 ms per Channel

Model Number
DSDI 120AV1

Series
ABB Symphony Plus Series

Input Signal Voltage Range
15 VDC to 32 VDC

Operating Temperature Range
0°C to +50°C

Humidity Tolerance
10% to 95% RH, Non-condensing

Storage Temperature Range
-25°C to +70°C

LED Indicators
Channel-wise Status LEDs

Signal Isolation
Optical, 2500 Vrms

Mounting Method
Rack Mount or Panel Mount Slot

About ABB DSDI 120AV1 DIGITAL INPUT BOARD

Select the ABB DSDI 120AV1 DIGITAL INPUT BOARD for your industrial automation and control needs and capitalise on its superior performance. This potent input board, designed for rack or panel mount slots, operates reliably within a breathtaking temperature range of 0C to +50C. Benefit from advanced features like channel-wise LED indicators, robust 2500 Vrms optical signal isolation, and high-grade PCB construction. Its conformal-coated FR4 epoxy glass base ensures lasting protection and its plug-in configuration provides effortless connectivity. Sale opportunities available for bulk requirementscontact your trusted supplier and trader in India to secure this advanced control system component.

Ideal Application and Special Features

The ABB DSDI 120AV1 DIGITAL INPUT BOARD is perfectly suited for a variety of industrial automation control systems, particularly those utilising Distributed Control Systems (DCS). Its green PCB surface with white silkscreen markings and robust conformal coating guarantee optimal durability and operation. Notable features include 16 isolated digital input channels, channel-specific LED status indicators, reliable optical isolation, and easy panel or rack mounting. This board excels in non-condensing environments and supports seamless integration in sophisticated control architectures.

Packaging, Sample Policy, and Delivery Details

Each ABB DSDI 120AV1 DIGITAL INPUT BOARD is carefully packed for secure goods transport, minimising risk during dispatching to clients. We offer sample policies for bulk orders to help you choose with confidence. Dispatching typically occurs from our dedicated FOB port in India at the lowest price. Clients can request tailored packaging upon demand, ensuring the board reaches your application site promptly and safely, ready for immediate installation in complex automation environments.

FAQs of ABB DSDI 120AV1 DIGITAL INPUT BOARD:

Q: How is the ABB DSDI 120AV1 DIGITAL INPUT BOARD mounted in control systems?

A: You can select rack mount or panel mount slots for the ABB DSDI 120AV1, facilitating convenient installation in various Distributed Control System (DCS) configurations.

Q: What are the primary benefits of using the ABB DSDI 120AV1 in automation projects?

A: This board features superior optical signal isolation (2500 Vrms), a potent conformal coating for protection, and 16 channel-wise status LEDseach attribute ensuring enhanced performance, reliability, and real-time monitoring in your industrial setup.

Q: When should the ABB DSDI 120AV1 be considered for replacement or upgrade?

A: Consider upgrading or replacing input boards if you experience increased response times, faulty signal processing, or lack modern features such as LED status indicators and robust insulation, as provided by the DSDI 120AV1.

Q: Where can the DSDI 120AV1 board be effectively used?

A: The DSDI 120AV1 is highly effective in industrial automation and control systems such as power plants, manufacturing units, and process industries, integrating directly with ABB Symphony Plus Series DCS setups.

Q: What is the process for ordering and dispatching this input board in India?

A: Orders can be placed through certified ABB suppliers and traders in India. Upon confirmation, goods are dispatched securely via the designated FOB port, ensuring rapid and reliable delivery at competitive prices.

Q: How does the conformal coating enhance the durability of the DSDI 120AV1 board?

A: The conformal coating protects the board from humidity, dust, and corrosive contaminants, ensuring a longer operational life and superior performance in challenging industrial environments.
