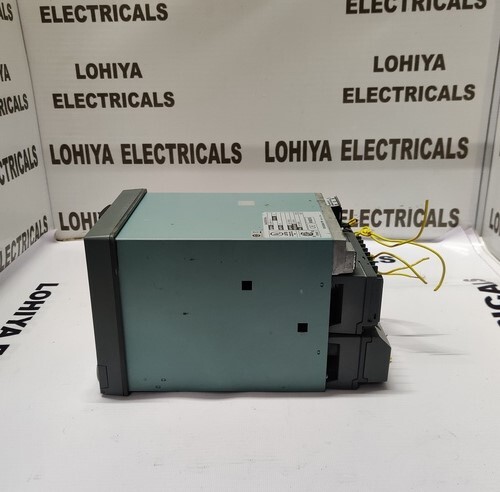

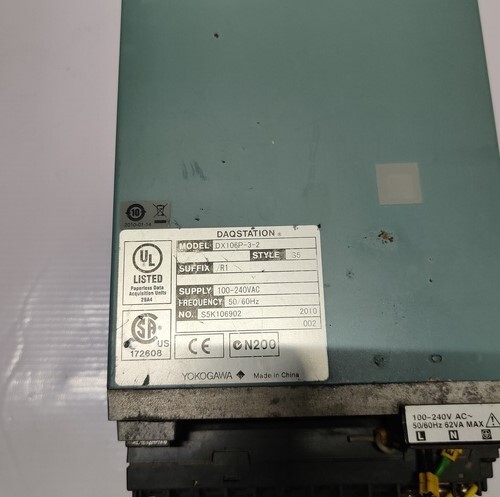

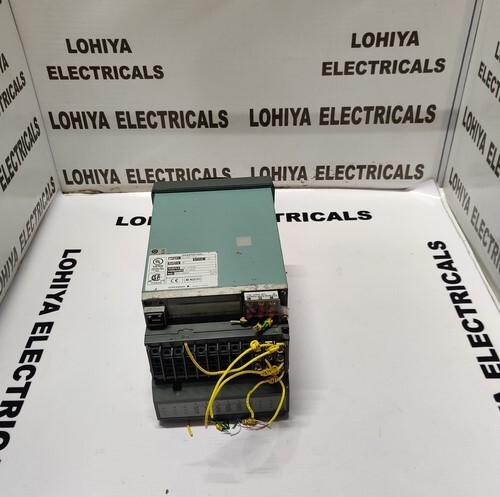

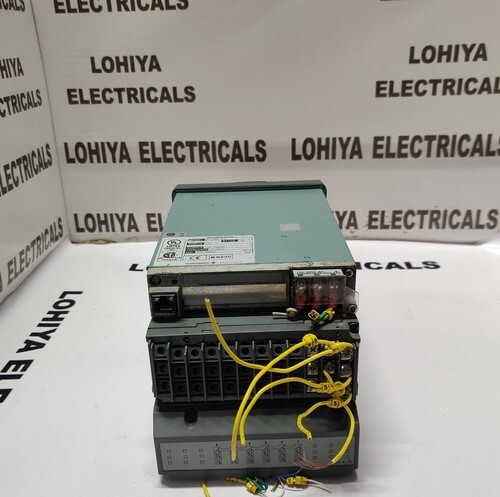

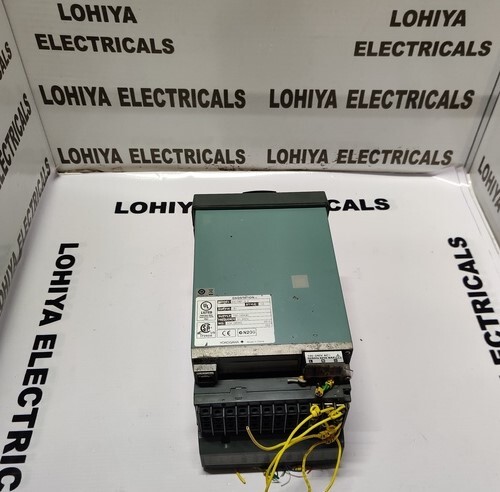

YOKOGAWA DX106P-3-2 CHART RECORDER

Get a Price/Quote

MOQ : 1 Piece

YOKOGAWA DX106P-3-2 CHART RECORDER Specification

Mounting Type
Panel Mounted

Power Factor
0.8

Feature
Large Display, Touch Key Operation, USB Data Backup

Connector Type
Screw Terminal

Efficiency
High Efficiency Signal Processing

Humidity %
2080% RH (non-condensing)

Overheating Protection
YES

IP Rating
Front: IP65

Operating Temperature
0C to 50C

Surface Finish
Painted/Coated

Insulation Material
Polycarbonate Body

Shape
Rectangular

Product Type
Paperless Chart Recorder

Application
Industrial Data Monitoring and Recording

Protection Level
Front panel: IP65, Rear: IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
100 - 240 VAC

Energy Consumption
Max. 55 VA

Output Type
Digital & Analog Outputs

Color
Light Gray with Black Bezel

Dimension (L*W*H)
144 x 144 x 200 mm

Weight
Approx. 4 kg

Phase
Single phase

Input Voltage
100-240 VAC

Size
6 channels

Connection Type
Terminal Block

Material
Industrial Grade Plastic & Metal

About YOKOGAWA DX106P-3-2 CHART RECORDER

Experience elite precision and phenomenal reliability with the YOKOGAWA DX106P-3-2 Chart Recorder. Built with first-rate industrial components and a generous 5.5-inch TFT color LCD, this affordable recorder empowers you to explore pivotal data trends in real-time across six universal input channels. Enjoy paperless digital data storage via compact flash and USB, efficient Ethernet and multi-port interfaces, and user-defined alarms for safe, uninterrupted monitoring. Durable yet lightweight, its rugged IP65-rated front perfectly complements high-volume industrial applications, ensuring robust performance and high signal processing efficiency, all in a compact, modern package.

Commercial Applications & Competitive Edge

The YOKOGAWA DX106P-3-2 Chart Recorder is frequently utilized in industrial data monitoring and recording for sectors requiring dependable, high-frequency data capture. Its competitive advantages include user-defined alarms, a vivid color LCD for superior readability, and multilingual support. Reliable data backup, flexible trend displays, and IP65 front panel protection enhance commercial utility, elevating it above standard recorders for both analytical and operational processes.

Delivery Time, Supply Strength & Market Value

Our supply ability for the YOKOGAWA DX106P-3-2 Chart Recorder is robust to meet domestic market demand. Sample units are available for assessment, providing potential clients firsthand experience before large-scale orders. Typical delivery times are optimized through secure packaging practices, ensuring market value preservation and device safety during transit. Emphasis on prompt, reliable delivery maintains our standing in the competitive industrial electronics sector.

FAQs of YOKOGAWA DX106P-3-2 CHART RECORDER:

Q: How does the YOKOGAWA DX106P-3-2 Chart Recorder support industrial data monitoring?

A: It facilitates real-time, high-efficiency data capture across six universal channels and offers advanced trend display, comprehensive alarms, and flexible data backup, making it pivotal for industrial monitoring needs.

Q: What are the key benefits of its paperless, digital data storage system?

A: The paperless digital data storage with Compact Flash and USB ensures secure, convenient data management, reduces operational costs, and simplifies data retrieval, thus improving overall workflow efficiency.

Q: When is a sample of the chart recorder available for testing?

A: Samples are available upon request, allowing clients to explore product features and compatibility with their applications before confirming bulk orders.

Q: Where can the chart recorder be installed for optimal operation?

A: The DX106P-3-2 is designed for panel-mounted applications, with a robust IP65 front rating for demanding industrial environments where data integrity is critical.

Q: What process is involved in backing up recorded data?

A: Recorded data can be backed up effortlessly using USB memory, while vital session information is secured with battery-backed memory to prevent data loss during power disruptions.

Q: How does the alarm function enhance operational safety?

A: The user-defined multiple alarm feature alerts operators to critical changes, improving response time and ensuring operational safety during data monitoring tasks.
