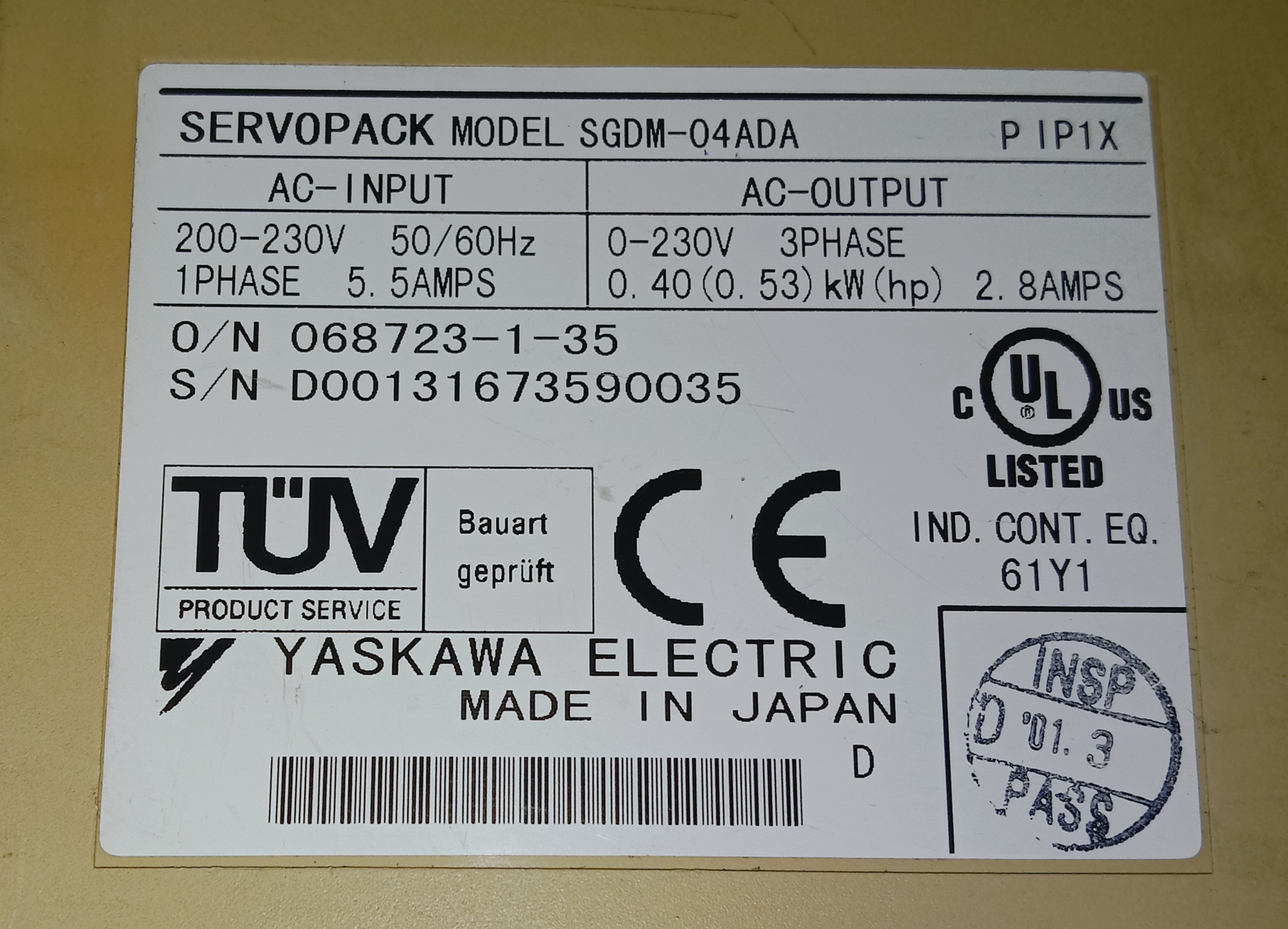

YASKAWA SERVO DRIVE SGDM-04ADA

Get a Price/Quote

YASKAWA SERVO DRIVE SGDM-04ADA Specification

Features
High Response, Digital Control, Compact Size, Easy Maintenance

Phase
Three Phase

Installation Type
Panel Mount

Output
Three-phase, 0-230V AC

Protection Level
Overcurrent, Overvoltage, Overtemperature

Mounting Type
Wall/Panel Mount

Frequency
50/60 Hz

Current
3.1A (Rated Output Current)

Usage & Applications
Servo Motor Control, Motion Control Systems

Product Type
Servo Drive

Operating Temperature
0C to +55C

Working Temperature
0C to +55C

Input
Three Phase 200-230VAC, 50/60Hz

Application
Industrial Automation, CNC Machines, Robotics, Packaging Machines

Supply Voltage
200-230V AC

Dimension (L*W*H)
approx. 150mm x 90mm x 250mm

Weight
Approx. 2.2 kg

Overload Capability
150% for 1 minute

Feedback Interface
Incremental Encoder

Compliance Standards
CE, UL, RoHS

Control Method
PWM (Pulse Width Modulation)

Model Number
SGDM-04ADA

Communication Ports
RS232C, optional MECHATROLINK

Cooling Method
Natural Air Cooling

Enclosure
IP20

Braking Function
Regenerative Braking

Input Voltage Tolerance
+10%, -15%

Rated Power
400W

About YASKAWA SERVO DRIVE SGDM-04ADA

The YASKAWA SERVO DRIVE SGDM-04ADA is a top-rated, customizable solution famed for its prime performance in industrial automation. Featuring a 400W rated power and PWM control method, it offers excellent motion control with regenerative braking and incremental encoder feedback. Ephemeral yet robust in response, this drive supports RS232C and optional MECHATROLINK communication, ensuring versatile connectivity. Fully compliant with CE, UL, and RoHS standards, it delivers high reliability. Its compact, IP20 enclosure and natural air cooling enhance easy panel mounting and maintenance. Perfect for CNC machines, robotics, and packaging systems.

Prime Usage and Applications

YASKAWA SERVO DRIVE SGDM-04ADA excels across diverse platforms in industrial automation, including CNC machines, packaging machinery, and robotics. Its versatility enables both specific and general motion control uses, seamlessly integrating with servo motor control and advanced motion control systems. Engineered for three-phase operations, its adaptability makes it ideal for application media ranging from precise robotics to broad industrial environments, delivering excellent performance even in complex or ephemeral processing tasks.

Efficient Shipment and Certifications

Orders for the YASKAWA SERVO DRIVE SGDM-04ADA benefit from streamlined order processing, ensuring timely shipment and minimized expenditure. Delivery time typically depends on stock status and customer requirements, with expedited arrangements available if needed. The products prime certificationsincluding CE, UL, and RoHSguarantee compliance and quality assurance. Sample policy may be available for bulk inquiries, offering prospects to assess the products performance prior to larger commitments.

FAQs of YASKAWA SERVO DRIVE SGDM-04ADA:

Q: How is the YASKAWA SERVO DRIVE SGDM-04ADA installed in industrial environments?

A: The SGDM-04ADA is designed for easy installation using a wall or panel mounting type, which ensures secure placement and optimal cooling through natural air circulation.

Q: What communication ports are available for integration?

A: This servo drive is equipped with RS232C ports as standard, with optional support for MECHATROLINK networks, facilitating flexible communication with various control systems.

Q: When is regenerative braking utilized with this servo drive?

A: Regenerative braking is employed during rapid deceleration or stopping processes, effectively dissipating excess energy and enhancing system safety and efficiency.

Q: Where can the SGDM-04ADA be used within industrial automation?

A: It is commonly used in CNC machines, robotic arms, packaging equipment, and other motion control systems across prime industrial settings, thanks to its adaptable design.

Q: What protection features does this drive offer for reliability?

A: The SGDM-04ADA provides overcurrent, overvoltage, and overtemperature protection, ensuring prime safety and excellent reliability during operation.

Q: How does natural air cooling in SGDM-04ADA benefit maintenance?

A: Natural air cooling reduces mechanical complexity, making maintenance easier and lowering expenditure on additional cooling apparatus or frequent service requirements.
