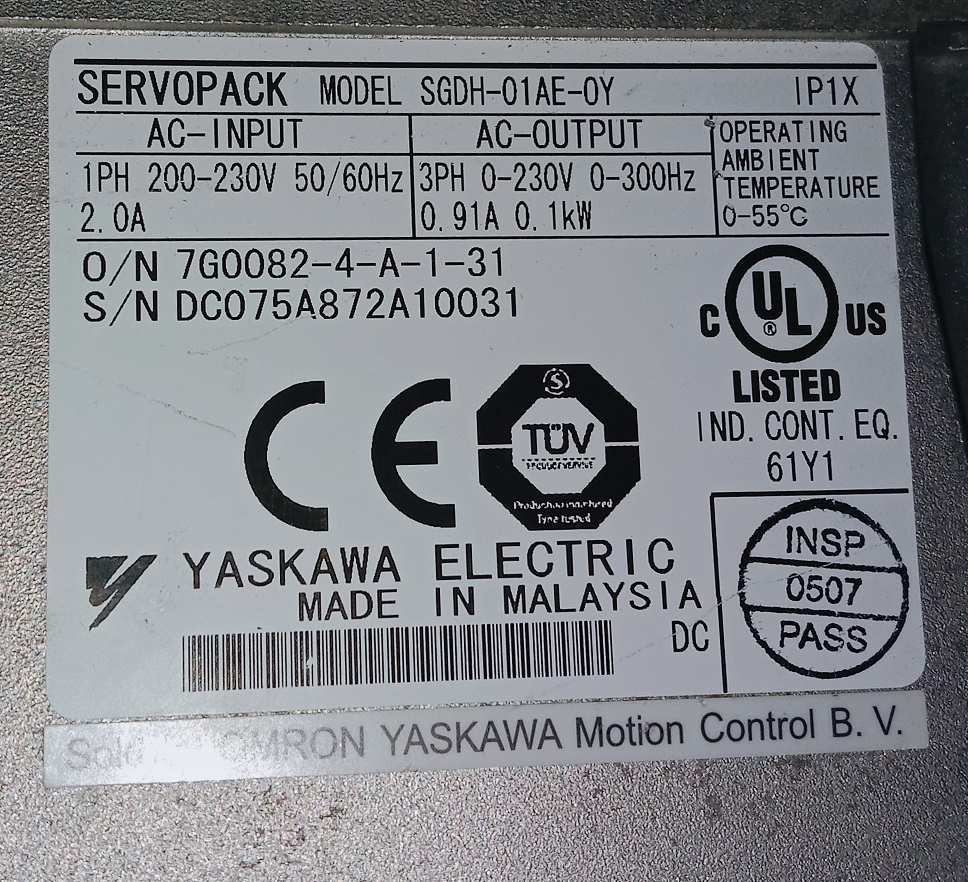

YASKAWA SERVO DRIVE SGDH-01AE-OY

Get a Price/Quote

YASKAWA SERVO DRIVE SGDH-01AE-OY Specification

IP Rating
IP20

Protection Level
Overcurrent, Overvoltage, Overheat Protection

Current
1.0A

Frequency
50/60Hz

Output
For 100W AC Servo Motor

Usage & Applications
CNC Machines, Packaging Equipment, Robotics, Textile Machinery

Display
Status LED indicators

Features
Compact design, high-speed response, Auto-tuning, Built-in Modbus

Connectivity Type
RS232, CN1 Control Input Connector

Mounting Type
Vertical Panel Mount

Phase
Single/Three Phase

Installation Type
Panel Mount

Switch Type
Digital, Parameter Selection Switch

Product Type
Servo Drive

Operating Temperature
0C to 55C

Working Temperature
0C to 55C

Input
Single/Three Phase, 200-230V AC, 50/60Hz

Application
Industrial Automation, Motion Control

Supply Voltage
200-230V AC

Accuracy
Highly Precise Control

Dimension (L*W*H)
Approx 60mm x 150mm x 150mm

Weight
Approx 1.2 kg

Digital Outputs
3

Ambient Storage Temperature
-20°C to +85°C

Compatible Motor Series
Sigma II

Rated Output Power
100W

Relative Humidity
10% to 90% (non-condensing)

Analog Input
1 (±10V)

Cooling Method
Natural Cooling (Fanless)

Control Method
Full Closed Loop, Position/Speed/Torque Control

Pulse Command Input
Differential Line Driver, Up to 500kpps

Catalog Number
SGDH-01AE-OY

Standards Compliance
CE, UL, cUL, RoHS

Model Number
SGDH-01AE-OY

Alarm Function
Self-Diagnosis with Error Display

Encoder Feedback
Incremental Encoder 2500p/rev

Digital Inputs
7

About YASKAWA SERVO DRIVE SGDH-01AE-OY

Spotlight the exceptional performance of the YASKAWA SERVO DRIVE SGDH-01AE-OYa celebrated solution in motion control. Engineered as a champion for automation, this hero of the Sigma II compatible series boasts a full closed loop control with position, speed, and torque mastery for 100W motors. Redeem unparalleled reliability with robust protection, natural cooling, and built-in Modbus connectivity. Featuring auto-tuning, multiple I/O options, and a compact, fanless design, it stands ready for demanding applications. Make every operation heroic with this highly precise and compliant drive.

Versatile Advantage and Broad Application Span

The YASKAWA SERVO DRIVE SGDH-01AE-OY delivers champion-level accuracy, making it ideal for CNC machines, robotics, textile machinery, and packaging equipment. Its adaptive control methods and self-diagnostic features spotlight its advantage for both specialized and general industrial automation tasks. With compact dimensions and effortless installation, it thrives in environments where precise motion and reliability are celebrated, unlocking possibilities for innovative solutions and productivity boosts across numerous manufacturing sectors.

Domestic Market Coverage, Accredited Certifications, and Sample Policies

YASKAWAs SGDH-01AE-OY enjoys a strong presence in major domestic industrial markets where prompt delivery and reliable supply underline every order. Evaluated and certified under CE, UL, cUL, and RoHS standards, each units valuation meets stringent compliance benchmarks. Customers may request sample units according to the suppliers policy to assess suitability before purchase, ensuring confidence in performance and alignment with project needs.

FAQs of YASKAWA SERVO DRIVE SGDH-01AE-OY:

Q: How does the YASKAWA SGDH-01AE-OY enhance precision in industrial automation?

A: The SERVO DRIVE SGDH-01AE-OY utilizes full closed loop control and highly precise position, speed, and torque management, supported by incremental encoder feedback and auto-tuning features. This ensures outstanding accuracy and repeatable results in demanding automation environments.

Q: What are the main applications for the SGDH-01AE-OY servo drive?

A: This drive is celebrated for use in CNC machinery, robotics, textile manufacturing, and packaging equipment, where high-speed, reliable, and compact motion control is essential for efficient operations.

Q: Where can the SGDH-01AE-OY be installed and what is the typical installation process?

A: Designed for vertical panel mounting, the drive features simple connectivity via RS232 and CN1 connectors. Installation typically involves securing the unit to an enclosure panel, wiring power and signal connections, and configuring parameters through the user interface.

Q: When should you choose the SGDH-01AE-OY over other servo drives?

A: Select the SGDH-01AE-OY when application requirements demand robust protection features, natural cooling, compact size, digital versatility, and compliance with global standards. It stands out where precise and reliable motion control is non-negotiable.

Q: What certifications and standards does the SGDH-01AE-OY meet?

A: This servo drive is compliant with CE, UL, cUL, and RoHS certifications, supporting safe, eco-friendly, and globally accepted deployments.

Q: How does the self-diagnosis and error display benefit users?

A: Integrated self-diagnosis with error display enables quick troubleshooting and minimizes downtime, allowing users to swiftly identify and rectify operational issues and enhance production continuity.
