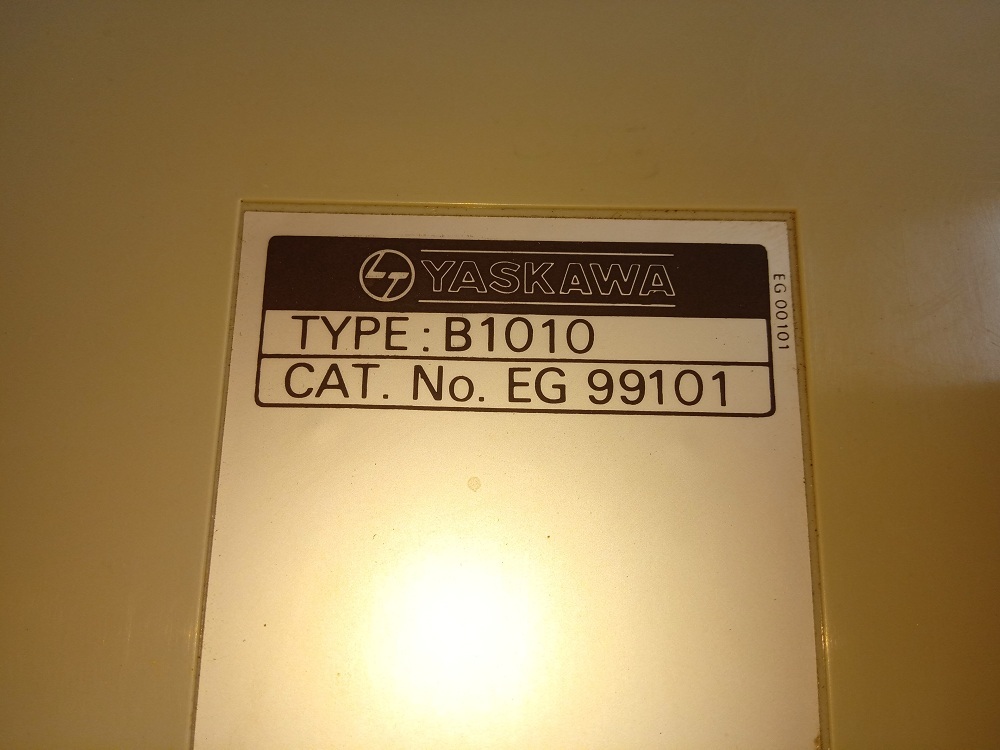

YASKAWA RELAY MODULE B1010

Get a Price/Quote

YASKAWA RELAY MODULE B1010 Specification

Rated Insulation Voltage
250 V

Panel Type
Mounting Plate

Features
LED Indicator, Compact Design

Thickness
40 mm

Control System
PLC Compatible

Current Rating
5 A

Cabinet Material
Polycarbonate

Base Material
Polycarbonate

Way
4 Way

Operating Voltage
24 VDC

Connectivity Type
Screw Terminal

Rated Operation Voltage
24 V

Components
Electromechanical Relay, Screw Terminals

Cooling System
Passive

Protection Level
IP20

Protection Class
Class II

Cover Material
ABS Plastic

Rated Current
5 A

Product Type
Relay Module

Material
High-grade Flame Retardant Plastic Body

Surface Finish
Matte

Standard
IEC 60947-5-1 / JIS C 8201

Surface Color
Blue

Rated Voltage
24 VDC

Frequency (MHz)
50/60 Hz

Maximum Output Current
5 A

Dimension (L*W*H)
90 x 42 x 40 mm

Application
Industrial Automation, Control Panels

IP Rating
IP20

Weight
Approx. 180g

Storage Temperature
-25C to +70C

Response Time
<15 ms (operate), <10 ms (release)

Operation Temperature Range
-10C to +55C

Relay Contact
SPDT (Single Pole Double Throw)

Number of Channels
4 or 8 (as per variant)

Mounting Type
DIN rail or panel mount

Dielectric Strength
1500V AC, 1 min

Input Signal Type
Digital

Insulation Resistance
>100 M at 500V DC

Compliance
RoHS, CE certified

About YASKAWA RELAY MODULE B1010

Highlighted as a blue-ribbon solution for industrial automation, the YASKAWA RELAY MODULE B1010 stands out with its exclusive SPDT relay contacts and pivotal digital input capabilities. Designed for robust applications, it redeems high performance within a superb operational temperature range from -10C to +55C. The compact, flame-retardant body ensures enhanced safety, and DIN rail or panel mounting offers flexible installation. Benefit from RoHS and CE certifications, quick relay response, and industry-standard compliance. This module is ideal for control panels, seamlessly integrating with PLC systems for optimal reliability.

Versatile Usage and Industrial Applications

The YASKAWA RELAY MODULE B1010 is pivotal for usage in industrial automation, control panels, and process control systems. Its superb design allows easy installation on DIN rails or mounting plates, making it suitable for varied application surfaces. The modules exclusive compact structure, LED indicators, and screw terminals ensure seamless connectivity and monitoring. Simply connect your input signals and output devices, and benefit from its superb compatibility with PLC systems for enhanced operational productivity and reliability.

Sample Availability and Reliable Supply Terms

Samples of the YASKAWA RELAY MODULE B1010 can be provided to customers wishing to evaluate market value before purchase. Our supply ability matches large-scale requirements, with quick dispatch options and diverse transport services for hassle-free delivery. Payment terms are flexible, accommodating industry needs and ensuring smooth transactions. Customers can request samples to assess compatibility and performance, while our supply chain guarantees consistent availability for both bulk and urgent orders, maximizing operational efficiency.

FAQs of YASKAWA RELAY MODULE B1010:

Q: How is the YASKAWA RELAY MODULE B1010 typically used in industrial automation?

A: It is used to facilitate digital signal switching and control in automation and control panels, interfacing directly with PLC systems for operational tasks.

Q: What are the key benefits of using this relay module in control panels?

A: Key benefits include fast response time, robust insulation, LED status indication, compact design, and compatibility with a wide range of devices, ensuring reliable performance.

Q: When is it recommended to mount the module on a panel versus a DIN rail?

A: The choice depends on your panel design; DIN rail mounting is ideal for modularity, while panel mounting suits fixed installations requiring secure positioning.

Q: Where can you safely install the YASKAWA RELAY MODULE B1010?

A: It can be safely installed on DIN rails or mounting plates within industrial environments, control cabinets, and automation panels where its IP20 protection is appropriate.

Q: What process should be followed for connecting the relay module?

A: Connect input signals and relay outputs using the screw terminals, following the wiring diagram. Ensure proper voltage (24 VDC) and secure connections for safe operation.

Q: How does this module support safe and long-term use?

A: With a high-grade flame retardant body and compliance with IEC and RoHS standards, it delivers insulation and dielectric strength for safe, sustainable operation.
