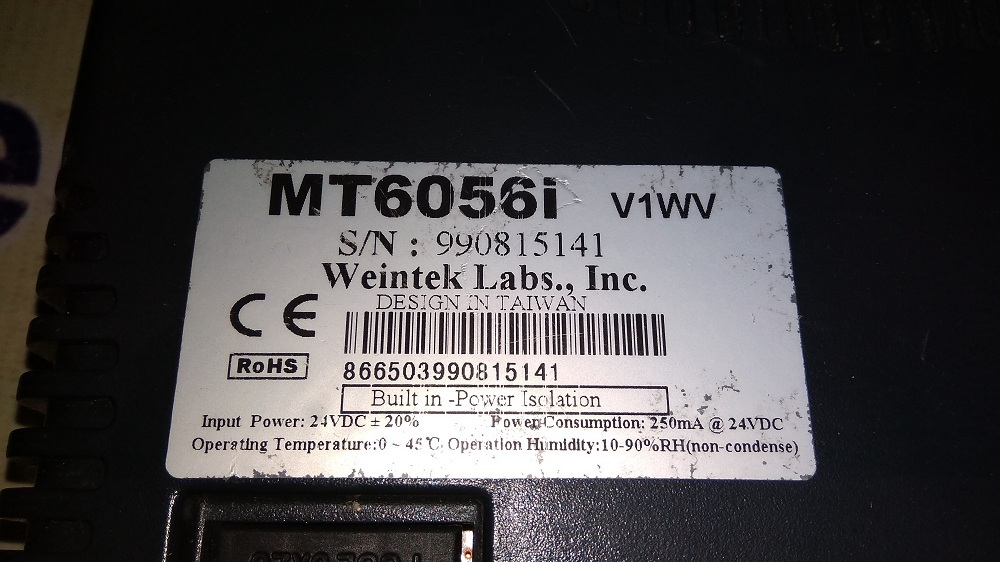

WEINTEK LABS HMI

Get a Price/Quote

WEINTEK LABS HMI Specification

Connector Type
RS232/RS485/USB Host

Feature
Touch Screen, Graphical Display, Multi-Language Support

IP Rating
IP65

Power Factor
0.73

Surface Finish
Matte

Efficiency
High

Shape
Rectangular

Humidity %
10% to 90%, non-condensing

Mounting Type
Panel Mount

Insulation Material
PC+ABS

Operating Temperature
0C to 50C

Overheating Protection
YES

Product Type
Human Machine Interface (HMI)

Application
Industrial Automation, PLC Communication Control

Protection Level
IP65 (Front Panel)

Frequency (MHz)
50 to 60 Hz

Rated Voltage
24V DC

Energy Consumption
Max 8W

Output Type
Digital

Color
Grey

Dimension (L*W*H)
200 x 146 x 34 mm

Weight
0.65 kg

Input Voltage
24V DC

Size
7 Inch

Phase
Single Phase

Material
ABS Plastic

Connection Type
Terminal/COM Port

Display Type
TFT LCD

Backlight Life
LED, 30,000 hours (typical)

Touch Panel
4-Wire Resistive Touch

Response Time
< 5 ms

Power Supply Tolerance
10-28V DC

Ethernet Port
Available (on selected models)

Storage Temperature
-20C to 60C

Panel Cutout Dimension
192 x 138 mm

Programming Software
EasyBuilder Pro

Resolution
800 x 480 pixels

Communication Ports
RS232, RS485, USB Host, USB Client, Ethernet

Memory
128MB Flash, 128MB RAM

Relative Humidity
10% to 90% (non-condensing)

Serial Baud Rate
2.4-115.2 kbps

About WEINTEK LABS HMI

Unlock advanced industrial automation with the latest WEINTEK LABS HMI, designed for precision and reliability. Featuring a 7-inch TFT LCD display with a terrific 800 x 480 resolution, this panel offers the finest graphical interface. Utilize perfect multi-language support, quick response time (< 5 ms), and robust communication via RS232, RS485, USB, and Ethernet. The durable ABS construction and IP65 protection make it ideal for demanding environments. Advance purchase ensures energy-efficient operation, user-friendly EasyBuilder Pro programming, and flawless PLC control, making this HMI the finest choice for modern automation.

Versatile Usage and Extra Features

The WEINTEK LABS HMI is perfect for industrial automation, offering advanced PLC communication control. It excels in factory settings, process management, and monitoring with features like overheating protection, high efficiency, and multi-language support. The matte surface finish and easy-to-mount panel design enhance usability, while graphical display capabilities provide clear data visualization. The terminal/COM port connection type and digital output make it a terrific solution for robust, reliable automation needs.

Delivery and Dispatch Policies

Delivering excellence, the WEINTEK LABS HMI is shipped with quick dispatch to meet your project timelines. Sample policies are available at competitive rates, allowing traders and suppliers to evaluate quality before bulk orders. The main domestic market benefits from prompt delivery and responsive support, ensuring seamless installation and integration. With reliable packaging and dedicated logistics, the rate of on-time delivery stays high, tailored to industrial and commercial demands.

FAQs of WEINTEK LABS HMI:

Q: How does the WEINTEK LABS HMI benefit industrial automation processes?

A: The WEINTEK LABS HMI provides advanced PLC communication, graphical display, and multi-language support, streamlining process monitoring and control for superior efficiency and reliability in industrial environments.

Q: What are the main usage applications of this HMI?

A: It is used primarily in industrial automation and process control, including real-time monitoring, equipment management, and integration with PLC systems for seamless operational workflows.

Q: When can I expect delivery after placing an advance purchase?

A: Upon placing an advance purchase, expect quick dispatch and fast shipping; delivery timelines are tailored to your region in the main domestic market, with expedited options available for urgent requirements.

Q: Where can this HMI be mounted, and what protection does it offer?

A: This HMI is designed for panel mounting, providing IP65-rated front-panel protection, which safeguards against dust and water in harsh industrial settings.

Q: What is the process for programming and integrating this HMI with PLCs?

A: Programming is facilitated via EasyBuilder Pro software. Integration with PLCs is streamlined through multiple communication ports, including RS232, RS485, USB, and Ethernet, enabling efficient connectivity and setup.
